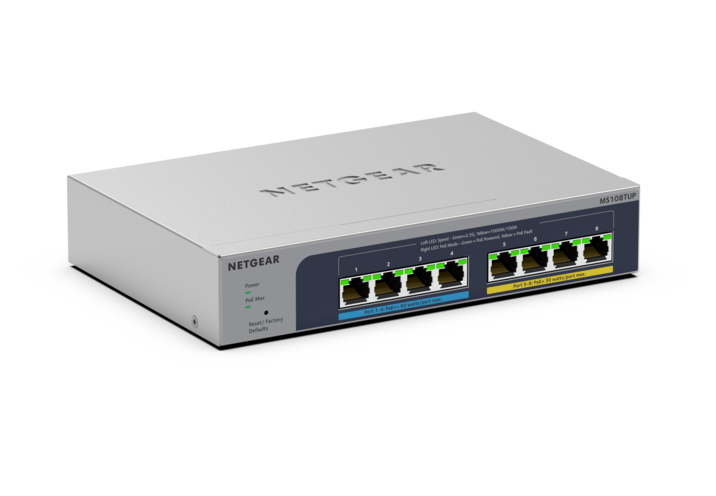

NETGEAR MS108TUP with Insight Cloud Management

Power adapter with detachable power cord (cord varies by region)

Wall-mount kit

Installation guide

Width

210mm (8.3in)

Depth

140mm (5.5in)

Height

40mm (1.6in)

Weight

2lb (0.9kg)

Multi-gigabit copper ports

8 (1G/2.5G)

Number of PoE+ (802.3at) ports

4

Number of PoE++ (802.3bt) ports

4

Total PoE Power budget

230 Watts

Uninterrupted PoE

Yes

PoE Self-Healing/Auto-Recovery

Yes

Max MAC entries

16K

Buffer size

1.5Mbit

VLAN (Number Supported)

64

VLAN routing

Yes

Dynamic VLAN assignment

Yes

MLD Snooping

Yes

Static route

Yes (32)

Host ARP table

1024 ARP

EEE

Yes

DoS Prevention

Yes

Internal/External PSU

External

Max power (worst case, all ports used, line-rate traffic)

270.6 Watts

Fans

0 (fanless)

Acoustic Noise Level @25°C

0 dBA

Operating Temperature

0° to 40° C (32° to 104°F)

MTBF

373,644 hrs (42.7 yrs)

NETGEAR Insight Remote Cloud Management

NETGEAR Insight is the easy-to-use solution for delivering centralized remote management of networks across multiple locations for small business owners, IT managers, MSPs and VARs all from a single pane-of-glass on any device.
Learn More

This product is backed by NETGEAR limited lifetime hardware warranty.

Click here for coverage, availability and terms and conditions.

NETGEAR Support offers a customizable support experience based on your operational needs:

Sprint support option with 24/5 Technical Support (phone, online) and Advance RMA Replacement

Overdrive support option with 24/7 Technical Support (phone, online, 2h SLA) and Next Business Day RMA Replacement

Visit http://www.netgear.com/enterprise-support for more information.
