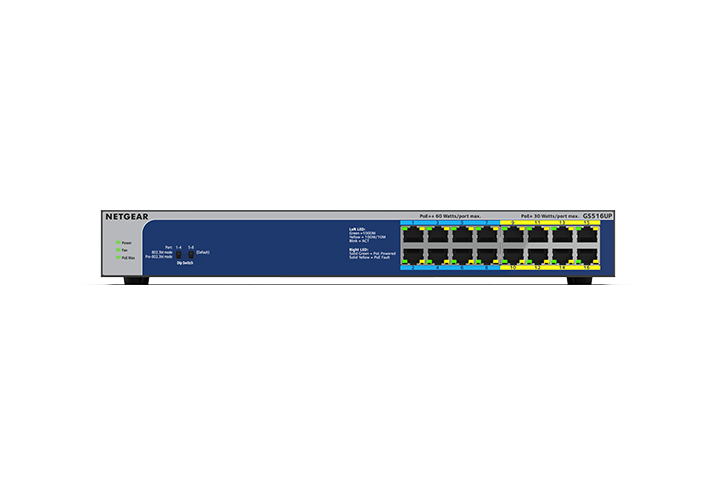

16-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch with 8-Ports PoE++ (380W)
16-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch with 8-Ports PoE++ (380W)
GS516UP
1 / 9
Ports
- 16 Ports
Port Types
- 16 x 10/100/1000Mbps Ports (Auto Uplink)
- 8 x 802.3at PoE+ Ports
- 8 x 802.3bt PoE++ Type 3 Ports
PoE Budget
- 380W
Details
GS516UP
Ports
- 16 Ports
Port Types
- 16 x 10/100/1000Mbps Ports (Auto Uplink)
- 8 x 802.3at PoE+ Ports
- 8 x 802.3bt PoE++ Type 3 Ports
PoE Budget
- 380W
Details
Features
ETHERNET PORT CONFIGURATION:
16 Gigabit ports
PLUG-AND-PLAY:
Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE:
Non-blocking switching architecture for maximum throughput at wire speed

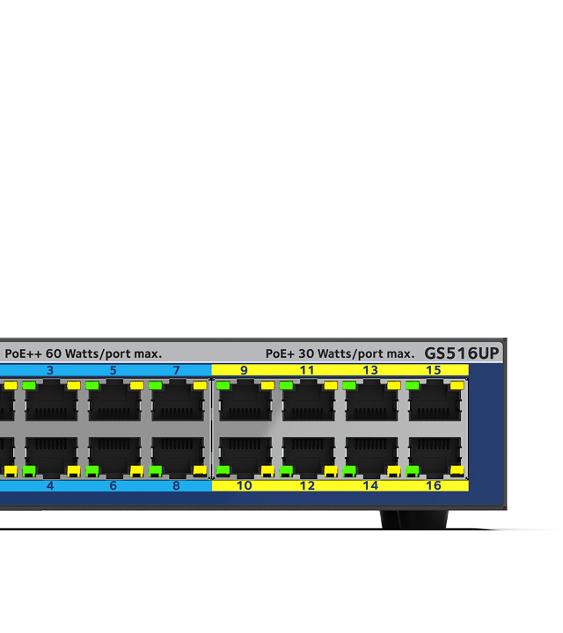

POWER-OVER-ETHERNET
8 Ultra60 PoE++, and 8 PoE+ ports with 380W total power budget to power wireless AP, IP Cameras, IP Phones and much more.
POWER AUTO-BALANCE AND ALLOCATION
NETGEAR's unique PoE technology automatically balances the PoE power, delivering exactly what each device needs.
SILENT OPERATION:
The fanless design means zero added noise wherever its located, making it ideal for your home or business environment
ENERGY EFFICIENT:
Designed to optimize power usage lowering its cost to operate.
RUGGED METAL CASING
Durable desktop case for longevity
VERSATILE MOUNTING OPTIONS:
Supports desktop or rackmount placement, and includes all mounting hardware in the box
STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs
Instant Networking
Plug-and-play setup, get reliable and secure Internet connectivity immediately
Convenient Power-over-Ethernet
One cable for both power and connectivity. 16 PoE++ ports with 380W total power budget. 60W per port
Power Efficient
Each port uses only the power it needs thanks to auto-balancing
Designed for Zero-Noise Operation
Passively cooled fanless design to protect your business environment
Technical Specifications
| Dimensions | 330 x 207 x 43 mm (12.99 in. x 8.15 in. x 1.7 in.) |
| Weight | 2.60kg (5.73 lb) |
| Speed | Gigabit |
| Number of Ports | 16 |
Number of PoE Ports | 8 PoE+ ports | |
PoE Budget | 380W | |
Energy Efficient Ethernet Support (IEEE 802.3az) | Yes | |
Jumbo Frame Support | 9,216 bytes | |
MAC Table Size | 8K | |
Packet buffer size | 192 KB | |
IEEE 802.1p QoS | Yes | |
Max Power Consumption | 456.8W / 14.9W | |
Fans | 3 | |
Operating Temperature | 0° to 40°C (32° to 104°F) | |
MTBF (hours) | 1,213,791 hrs | |
FCC Class | Class A |
