NETGEAR 5-Port Multi-Gigabit (2.5G) Ethernet Unmanaged Switch

MK72 - We're Always Here to Help - Content Card Group

NETGEAR 5-Port Multi-Gigabit (2.5G) Ethernet Unmanaged Switch

Name: NETGEAR 5-Port Multi-Gigabit (2.5G) Ethernet Unmanaged Switch
Brand: NETGEAR
SKU: MS105-100EUS
Rating: 5.0 (6 reviews)

MS105

1 / 9

Ports

5 Ports

Port Types

5 x 1G/2.5G Ethernet RJ-45 Copper ports (100M/1G/2.5G)

Details

The NETGEAR 5-port Multi-Gigabit Unmanaged Switch, MS105, helps businesses cost-effectively expand their networks with multi-gig speeds. The MS105 Multi-Gigabit Ethernet switch comes with five (5) 2.5G ports in a metal case and can be placed on a desk or mounted on a wall with the included wall mount kit. This switch is energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritisation and jumbo frame support allow for seamless integration with more sophisticated networks.

Download MS105 datasheet

MS105

5 Ports • Multigig

Quantity:

Ports

5 Ports

Port Types

5 x 1G/2.5G Ethernet RJ-45 Copper ports (100M/1G/2.5G)

Details

Find a Retailer

WHERE TO BUY

Download MS105 datasheet

Features

RELIABLE PERFORMANCE

Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise

ENERGY EFFICIENT

Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

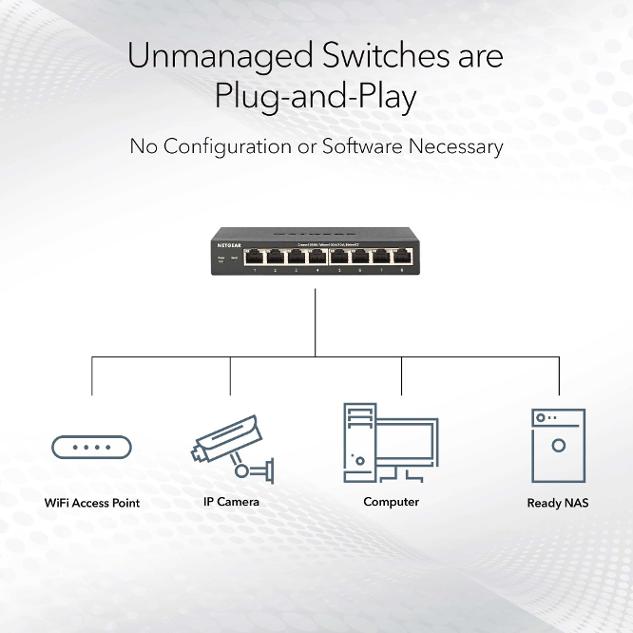

PLUG-AND-PLAY

No software to install. No configuration needed. Zero maintenance required

SILENT OPERATION

The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

VERSATILE MOUNTING OPTIONS

Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.

Product Datasheet

Technical Specifications

Dimensions (W x D x H) :	158 x 101 x 29 mm (6.2 x 4.0 x 1.1 in)
Weight :	0.48 kg (1.06 lb)

Speed :	100Mbps/1G/2.5G
Number of Ports :	5
Energy Efficient Ethernet Support (IEEE 802.3az) :	Yes
Jumbo Frame Support :	9,720 bytes
Queue WRR Ratio :	1:3:5:7:8:10:12:15
MAC Table Size :	16K
Packet buffer size :	1 MB
IEEE 802.1p QoS :	Yes
Max Power Consumption :	9.24W
Operating Temperature :	0-40°C (32°F - 104°F)
MTBF (hours) :	1,401,743 hrs (159.91 years)
FCC Class :	Class B
Fans :	0
Acoustic Noise Level @25C :	Fanless

Warranty :	This product is backed by NETGEAR limited lifetime hardware warranty.
	Click here for coverage, availability and terms and conditions.
Support :	NETGEAR Support offers a customizable support experience based on your operational needs:
	Sprint support option with 24/5 Technical Support (phone, online) and Advance RMA Replacement
	Overdrive support option with 24/7 Technical Support (phone, online, 2h SLA) and Next Business Day RMA Replacement
	Support coverage in one, three, or five year contracts Visit http://www.netgear.com/enterprise-support for more information.
