  • Dual-band delivering 1.8 Gbps of data throughput
  • Purpose-built for hospitality, MDUs, and classrooms
  • Connect to a Gigabit Ethernet switch for maximum speed
  • 8 separate wireless networks (SSIDs)
  • Simplified deployment with PoE
  • VLAN and QoS configurable via Insight Remote Cloud Management
  • Compatible with WiFi 4, WiFi 5, WiFi 6E and WiFi 7 on the 2.4 and 5GHz Bands
WAX610W WAX610W-100EUS​ WAX610W-100EUS​
1-Year NETGEAR Insight Subscription Included

AX1800 WiFi 6 Access Point (WAX610W) armor

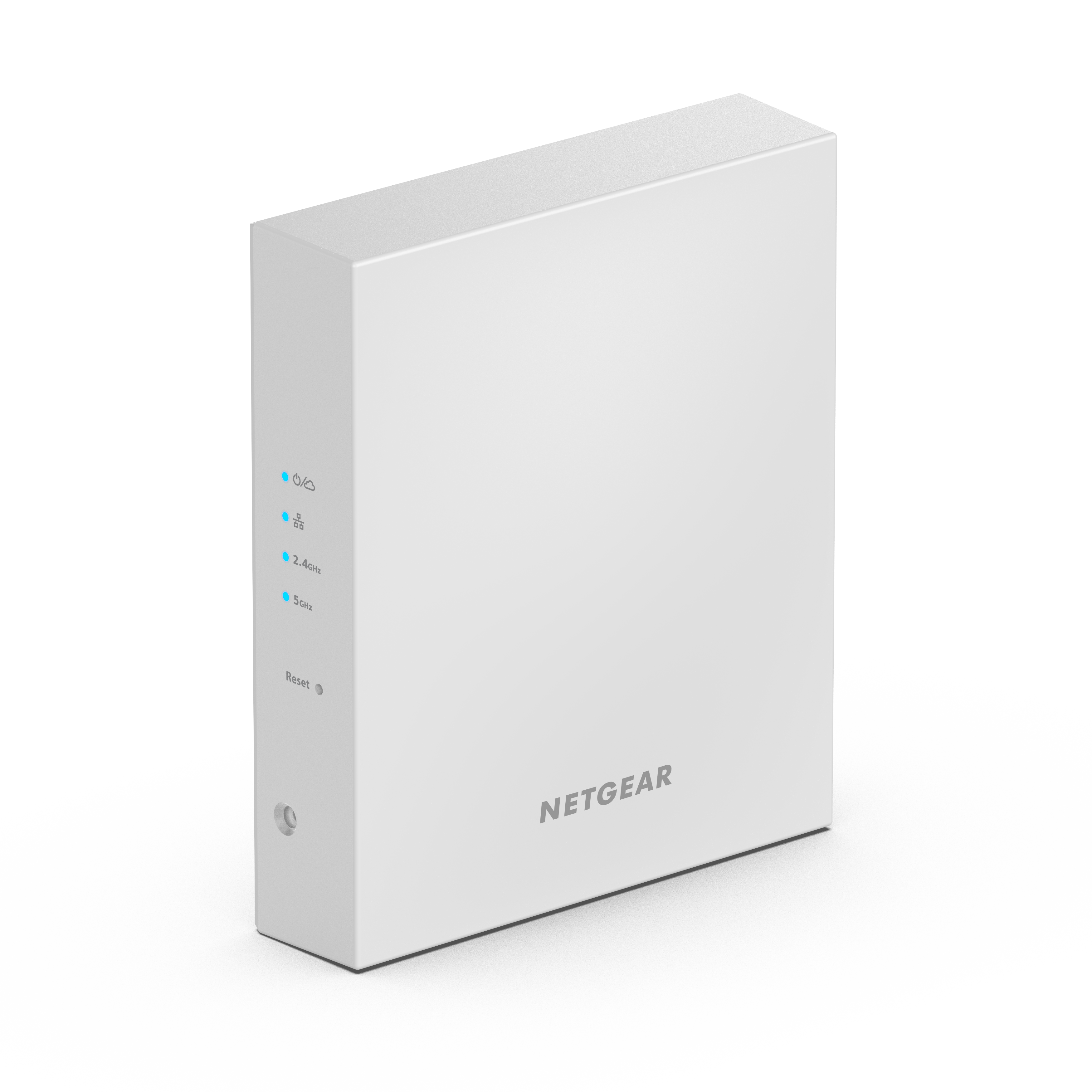

NETGEAR® Insight Managed WiFi 6 AX1800 Dual-band Gigabit PoE Access Point (WAX610W) armor

1-Year NETGEAR Insight Subscription Included

AX1800 WiFi 6 Access Point (WAX610W)

NETGEAR® Insight Managed WiFi 6 AX1800 Dual-band Gigabit PoE Access Point (WAX610W) armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

  • Dual-band delivering 1.8 Gbps of data throughput
  • Purpose-built for hospitality, MDUs, and classrooms
  • Connect to a Gigabit Ethernet switch for maximum speed
  • 8 separate wireless networks (SSIDs)
  • Simplified deployment with PoE
  • VLAN and QoS configurable via Insight Remote Cloud Management
  • Compatible with WiFi 4, WiFi 5, WiFi 6E and WiFi 7 on the 2.4 and 5GHz Bands

WiFi6_logo_white

The most powerful WiFi ever


4x

more capacity

40%

increase in data throughput

100%

backwards compatibility

NETGEAR Insight Management

NETGEAR Insight Management

Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business

POWERFUL BUSINESS WIFI

Faster and more reliable WiFi due to higher throughput and more coverage with the use of both 2.4Ghz and 5Ghz bands simultaneously.

IDEAL FOR HOSPITALITY & EDUCATION

Ultimate WiFi performance for hotels, multi-dwelling units (MDUs), and classrooms.

SEAMLESS MESH WIFI

Seamlessly expand your network with any mesh-connected Insight access points.

EASY DEPLOYMENT

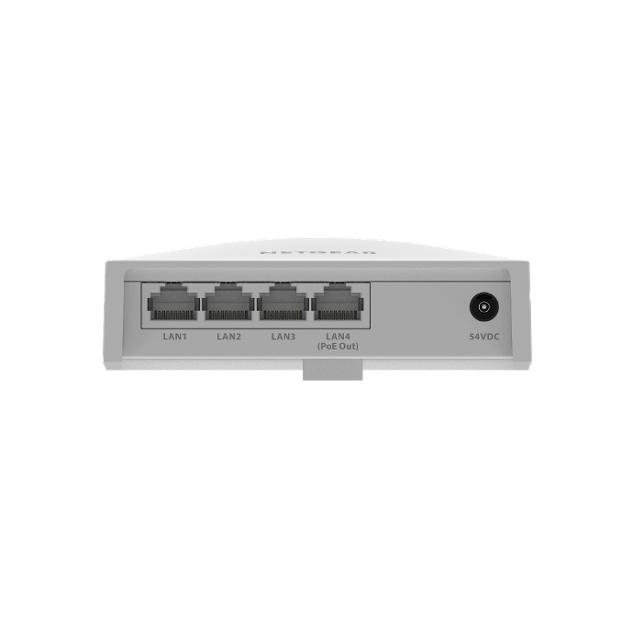

One PoE Gigabit port for easy setup, plus four additional LAN ports to connect to IP phones, smart TVs, and more.

CUSTOM GUEST WIFI

Create a branded, customizable guest WiFi experience with the optional Captive Portal.

8 WIRELESS NETWORKS (SSIDS)

Separate and secure networks for admin, guests, employees and IoT devices like cameras, locks and more.

BUSINESS-LEVEL SECURITY

WPA3 for the highest level of WiFi connection security.

SEPARATE VLANS

Keep employee and guest traffic safely separated and segregated.

EASY SET UP

Zero-touch deployment and setup with NETGEAR Insight.

FLEXIBLE MOUNTING

Simple, secure wall installation with the included hardware.

Technical Specifications

WAX610W
WAX610W
  • Dimensions (W x D x H) : 110 X 130 X 34.2 mm (4.33 X 5.12 X 1.34 in)
  • Weight : 0.38kg (0.85lb)
  • WiFi Standard : 5GHz: 802.11a/b/g/n/ac/ax, 2.4GHz: 802.11b/g/n/ac/ax
  • Wireless Mode (Transmit x Receive) : 2.4GHz is 2x2, 5GHz is 2x2
  • OFDM/OFDMA : OFDM and OFDMA
  • Multi-User MIMO : Bidirectional MU-MIMO
  • Maximum Theoretical Throughput : AX1800, 1.8Gbps
  • Maximum Theoretical Throughput per Band : 2.4GHz: 600Mbps, 5GHz: 1,200Mbps
  • Antenna Gain Internal : 2.4G - 3dBi/5G - 3dBi
  • Power over Ethernet (PoE) : 802.3af
  • PoE Power Consumption : 20.19W
  • Centralized Management : Insight App
  • Secure Socket Layer (SSL) : Yes
  • Router Mode : Yes
  • WiFi Range : 1,000 square feet
  • Fast Roaming : Yes

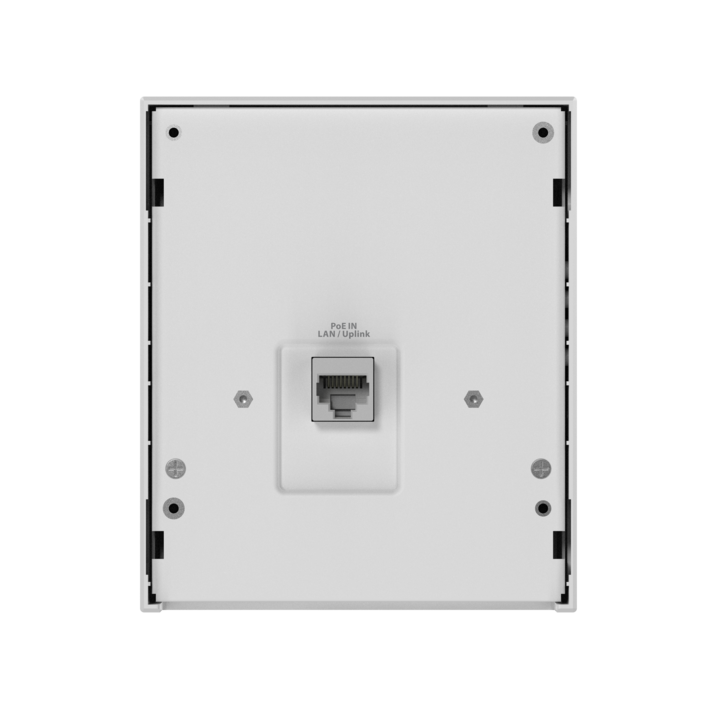

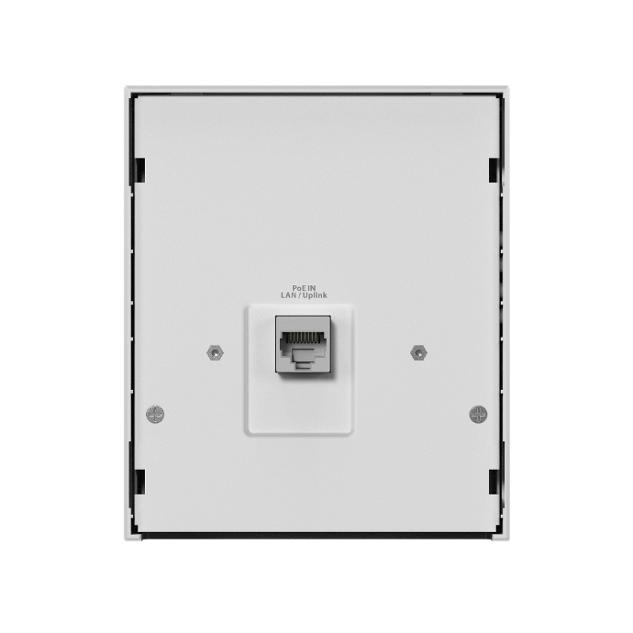

  • Ethernet Ports : 1 x GbE PoE uplink, 4 x GbE LAN ports
  • Management : NETGEAR Insight — Secure cloud and local network management
  • Captive Portal : Captive portal authentication for guests via NETGEAR Insight
  • SSID wireless networks : 8
  • Supports OWE, WPA2-PSK, WPA3-PSK, WPA2-Enterprise, WPA3-Enterprise
  • Hardware Limited Warranty 5 years
  • Next-Business-Day (NBD) Replacement 5 years
  • ProSupport Technical support (online, phone) 90-days included from date of purchase
  • Get ProSupport
  • WAX610W Support
  • WAX610W Insight Managed Wireless Access Point
  • Wall mount kit
  • Installation guide
