Pro Router (PR460X)

Ports

6 Ports

Port Types

1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN), 1 x 2.5G/1G RJ-45 (WAN), 3 x 2.5G/1G RJ-45 (LAN), 1 x 10G/1G SFP+ (LAN)

Details

10G/Multi-Gig and 2.5G Dual WAN ports with failover

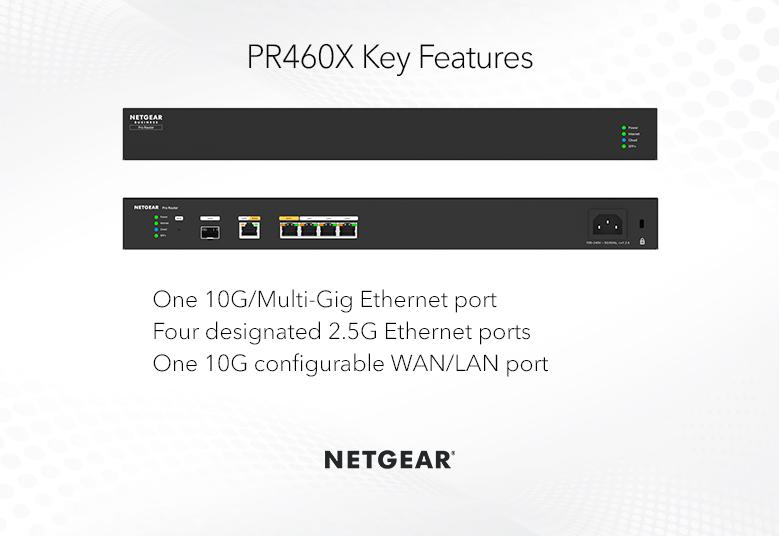

High-performance hardware with one 10G/Multi-Gig Ethernet port, four 2.5G Ethernet ports and one 10G SFP+ port for long-distance backhaul.
Seamless integration with NETGEAR Pro WiFi Access Points and select Smart Switches through NETGEAR Insight Cloud Management
Configure with NETGEAR Engage for integration with AV networks
Rack-mountable for placement in industry-standard enclosures
Firewall protection
IPSec configuration to create secure site-to-site VPN connections
5-year hardware warranty, 5-year next-business-day replacement, 90-day phone/chat support
4 years of NETGEAR Insight Remote Cloud Management included

Download PR460X datasheet

Pro Router (PR460X)

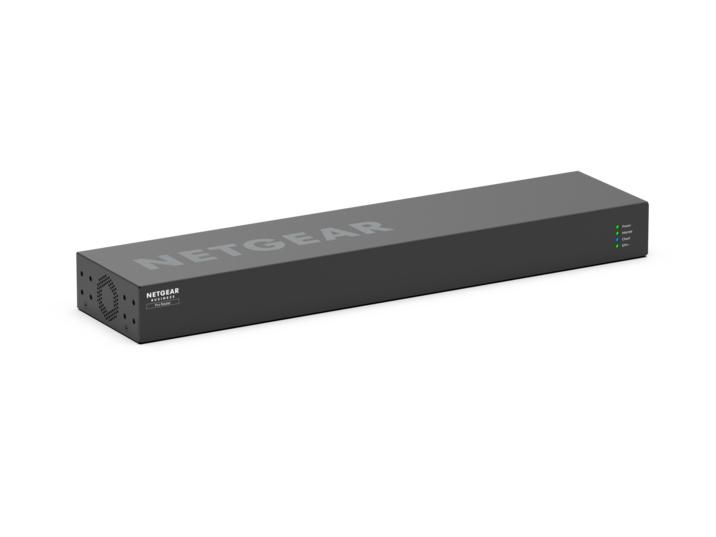

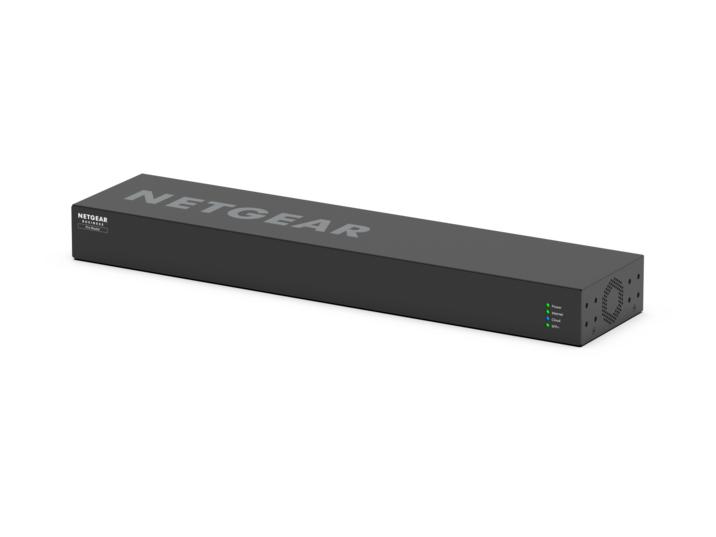

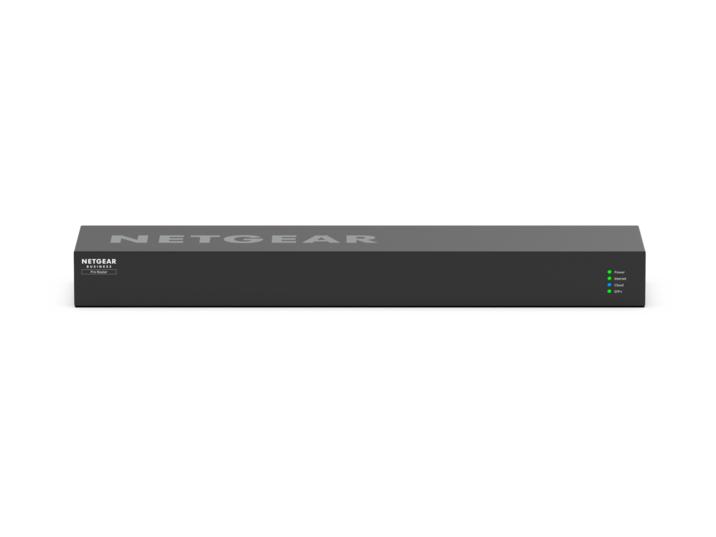

Name: Pro Router (PR460X)
Brand: NETGEAR
SKU: PR460X-111EUS

PR460X

6 Ports • 10G/Multigig

Quantity:

Ports

6 Ports

Port Types

1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN), 1 x 2.5G/1G RJ-45 (WAN), 3 x 2.5G/1G RJ-45 (LAN), 1 x 10G/1G SFP+ (LAN)

Details

10G/Multi-Gig and 2.5G Dual WAN ports with failover
High-performance hardware with one 10G/Multi-Gig Ethernet port, four 2.5G Ethernet ports and one 10G SFP+ port for long-distance backhaul.
Seamless integration with NETGEAR Pro WiFi Access Points and select Smart Switches through NETGEAR Insight Cloud Management
Configure with NETGEAR Engage for integration with AV networks

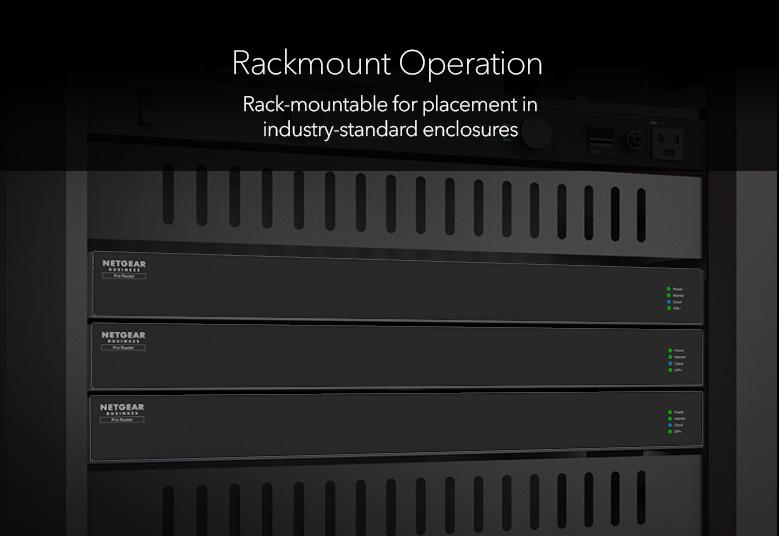

Rack-mountable for placement in industry-standard enclosures
Firewall protection
IPSec configuration to create secure site-to-site VPN connections
5-year hardware warranty, 5-year next-business-day replacement, 90-day phone/chat support
4 years of NETGEAR Insight Remote Cloud Management included

Download PR460X datasheet

Technical Specifications

WHAT'S INCLUDED

TECHNICAL DETAILS

MANAGEMENT

WARRANTY

SUPPORT

IMAGES

DOCUMENTS

HELPFUL LINKS

PR460X Datasheet

Are you an IT reseller considering or interested in becoming a NETGEAR partner? See how you can benefit by becoming a registered NETGEAR Partner.

Become a Partner

We're Always Here to Help

NETGEAR PR460X 10G/Multi-Gigabit Dual-WAN Pro Router with Insight Cloud Management
DC power adapter (varies by region)
Ethernet cable
Installation guide

Width	440mm
Depth	100mm
Height	43.2mm
Weight	3.27lb (1484g)
Hardware	Quad Core ARM A73 @ 2.2 GHz, 2GB DDR4, Flash Memory 4GB eMMC

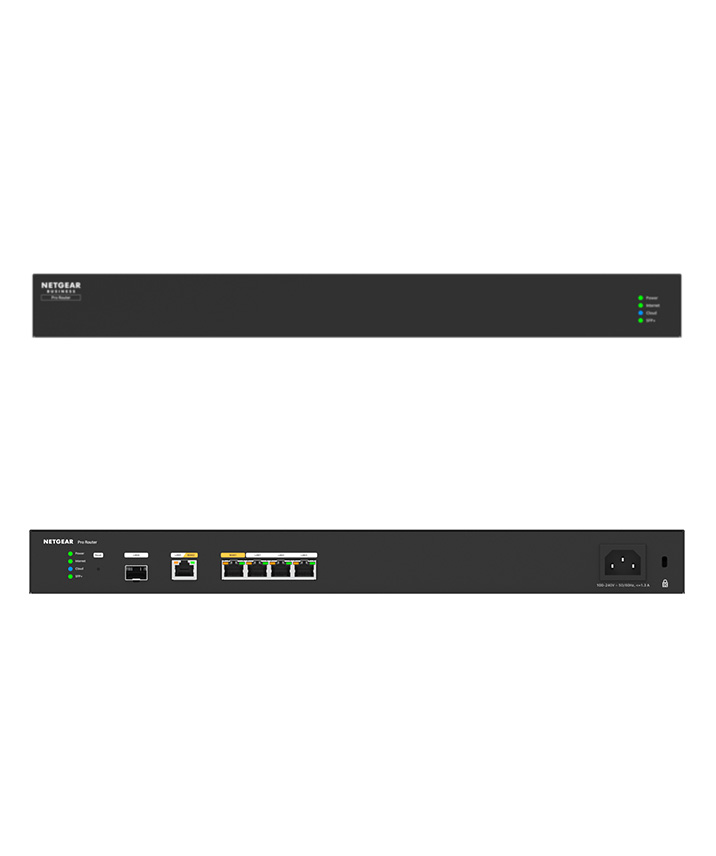

Connectivity	Network Switching Subsystem (NSS) processor 1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN) 1 x 2.5G/1G RJ-45 (WAN) 3 x 2.5G/1G RJ-45 (LAN) 1 x 10G/1G SFP+ (LAN)
Performance	WAN/LAN speed at 2.5G or 10G port wired speed.
LAN/VLAN	Maximum Number of VLANs is 8, DHCP Server (limit is 32), VLANs 802.1Q
Security	Firewall Traffic Rules/Scheduling, Port Forwarding, Port Triggering, Stateful Packet Inspection (SPI), Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood, Respond To Ping on Internet Port.
VoIP SIP ALG	Yes
Networking	ISP Address Assignment DHCP, Static IP Assignment, PPPoE, NAT, Static Routing, Routing Protocol (RIPv1, RIPv2), MAC Address Cloning/spoofing, NTP Support, UPnP, Auto Uplink on Switch Ports
VPN	IPSec
Encryption/Authentication	3DES, AES (128, 192, 256 bit)/SHA-1, SHA-2 (256bit), MD5
Key Exchange	IKEv1, IKEv2, Pre-shared Key
Management Options	Insight Cloud, Logging Accepted Packets, Dropped Packets Statistics, System, Source MAC filter, Session Limit, Bandwidth Limit, Ipsec VPN, Log Delivery Insight logging, Diagnostics Ping, DNS Lookup, Trace Route, Speed test, Maintenance Save/restore Configuration, Restore to Factory Defaults, Firmware Upgrades, Display and monitor Statistics
Major Regulatory Compliance Environment	RoHS
Safety	CE/LVD, CSA
EMI	CE/LVD, CSA
Temperatures Operating Temperature	0° - 40°C (32°-104° F)
Storage Temperature	-20° - 70° C (-4° - 158° F)
Humidity	humidity 90% maximum relative humidity, non-condensing, Storage humidity 95% maximum relative humidity, non-condensing, Electrical Specifications Power adapter input localized to regions
Power	AC 100-240V, 50/60Hz, 1.3A

NETGEAR Insight Remote Cloud Management	NETGEAR Insight is the easy-to-use solution for delivering centralized remote management of networks across multiple locations for small business owners, IT managers, MSPs and VARs all from a single pane-of-glass on any device. Learn More
NETGEAR Engage Controller	Centralized application to configure AV switches, pro routers, and access points across your entire network. Lightweight and portable, you can run it from a USB thumb drive. Learn More
