Managed Switch with 12 Ports for AV over IP (GSM4212UX)
Managed Switch with 12 Ports for AV over IP (GSM4212UX)

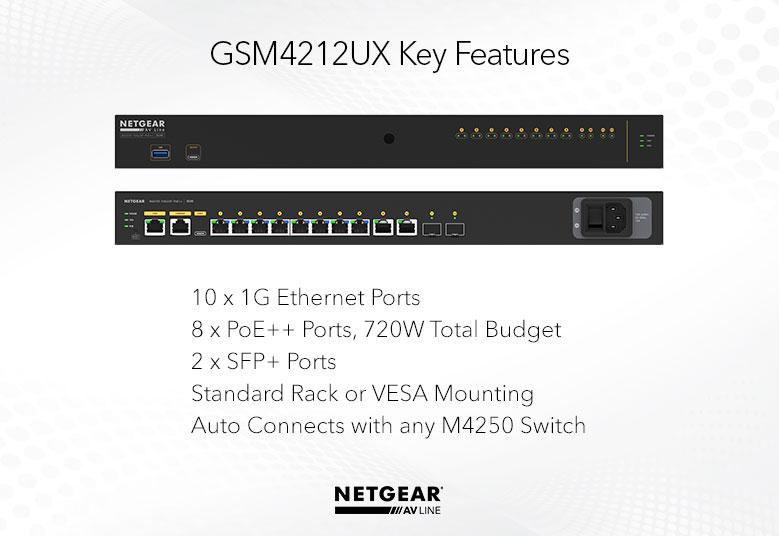

GSM4212UX
1 / 10
Ports
- 12 Ports
Port Types
- 10 x 1G, 2 x SFP
PoE Budget
- 8 PoE++ (90W/port)
- 720W budget
Details
GSM4212UX
Ports
- 12 Ports
Port Types
- 10 x 1G, 2 x SFP
PoE Budget
- 8 PoE++ (90W/port)
- 720W budget
Details
POWERFUL AV SWITCHES
MADE SIMPLE
Pre-configured to get you up and running faster
FAST, EASY
CONFIGURATION
FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP
RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
REFINED DESIGN
PROVIDES MOUNTING FLEXIBILITY

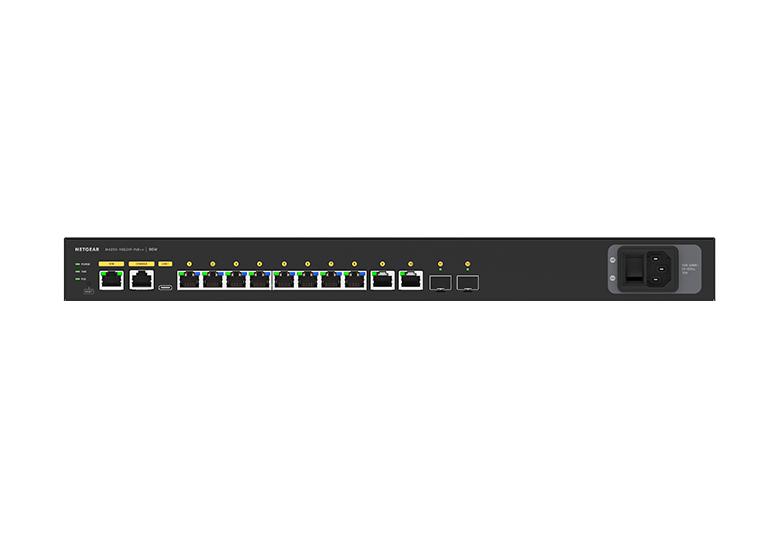

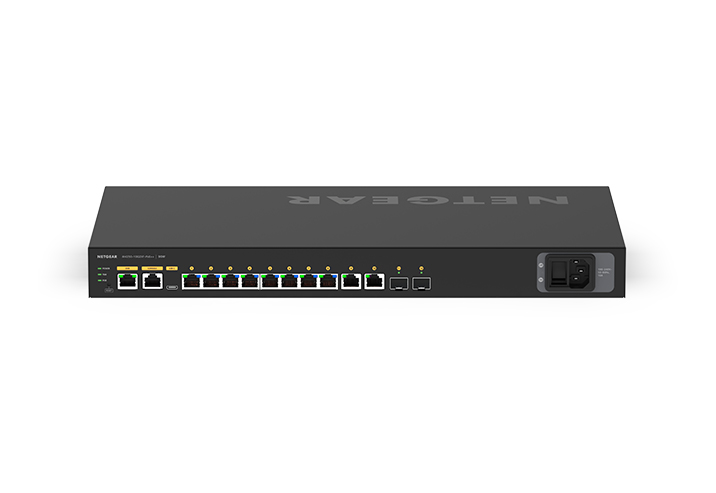

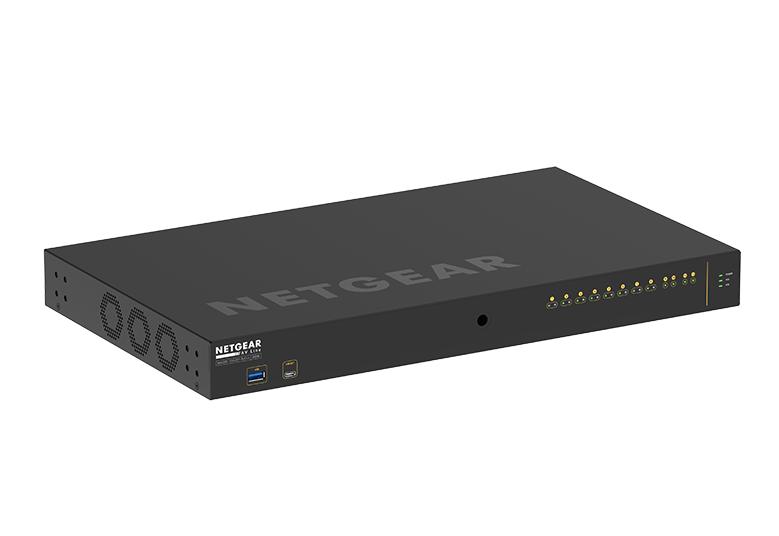

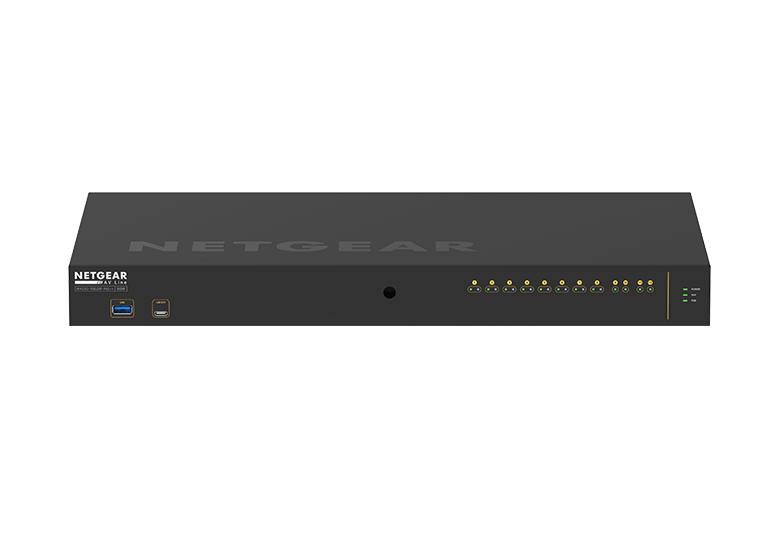

Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.
MAXIMIZE
PERFORMANCE
WITH NETGEAR
ACCESS POINTS
Enable powerful, reliable WiFi at your location with WAX600 Series PoE access points.
Product Specifications

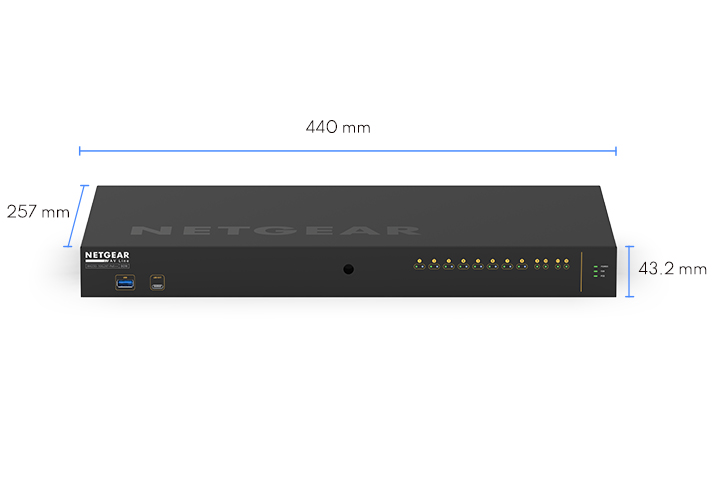

Dimensions (WxDxH): | 440 x 200 x 43.2mm |
Weight: | 3.83Kg (8.44lb) |
Primary Port Speed: | 1 Gigabit |
Number of Ports: | 12 (10x 1G, 2x SFP) |
PoE Ports / Budget: | 8 PoE++ (90W/port), 720W Budget |
IGMP Support: | Enhanced (NETGEAR IGMP Plus™) |
Jumbo Frame Support: | Yes, up to 12kb |
Acoustics: | Fanless or 50.5dB@25ºC |
Power Consumption: | With PoE: 837.7W/2859.91Btu/hr; Without PoE: 26.3W/89.79Btu/hr; Standby without any port connection: 18W/61.45Btu/hr |
AVB Support: | Yes. Electronic license required, activation key sent via email (AVB4212UX-10000S) |
Warranty: | This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty . This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only. |
Support: | Phone and chat technical support provided for 90 days from purchase date. |
What's in the Box: | M4250-10G2XF-PoE++ (GSM4212UX) |
| | Power cord(s) |
| | Console USB Type-C and RJ45-DB9 cables |
| | Rack-mounting standard brackets |
| | Longer brackets for recessed mounting |
| | Rubber footpads for tabletop installation |
| | Installation guide |
