16x 2.5G PoE++ (530W base, up to 1,130W) incl. 8x Neutrik etherCON and 4x SFP28 25G Managed Switch
1 / 13
Ports
- 20
Port Types
- 16x 2.5G PoE++ incl. 8x Neutrik etherCON, 4x 25G SFP28 uplinks
PoE Budget
- 1130W total when the redundant PoE budget remains 530W (1+1 configuration)
Details
- Two internal 800W power supplies providing 530W of redundant base PoE budget
- Switch ships with one APM414V interface card with 4x 25G SFP28 ports
- Optional APM414C Interface Card with 4x 10G RJ-45 ports
- Optional APM414SD Interface Card with 2x Neutrik opticalCON DUO connectors for 4x MMF transceivers
- Optional APM414LD Interface Card with 2x Neutrik opticalCON DUO connectors for 4x SMF transceivers
- 2x Neutrik powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, NETGEAR AV OS™, and NETGEAR Engage™ Controller speed up AV installations
- SMPTE ST 2110 Grandmaster Clock and Boundary Clock for AES67 and ST2059-2 applications
- Multi-colour LED on each physical port reflecting the profile colour in the NETGEAR AV OS™ and Engage Controller
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
16x 2.5G PoE++ (530W base, up to 1,130W) incl. 8x Neutrik etherCON and 4x SFP28 25G Managed Switch

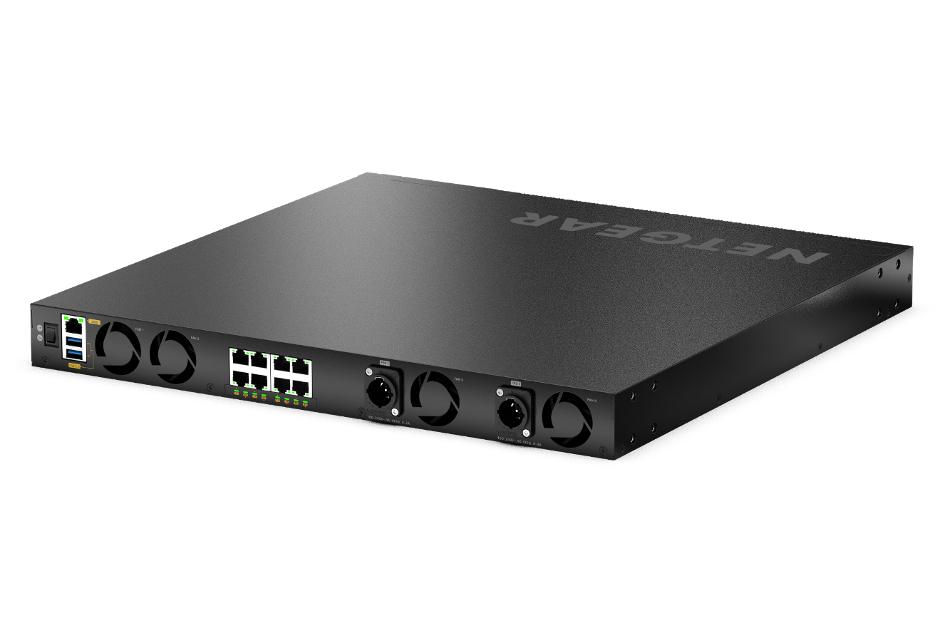

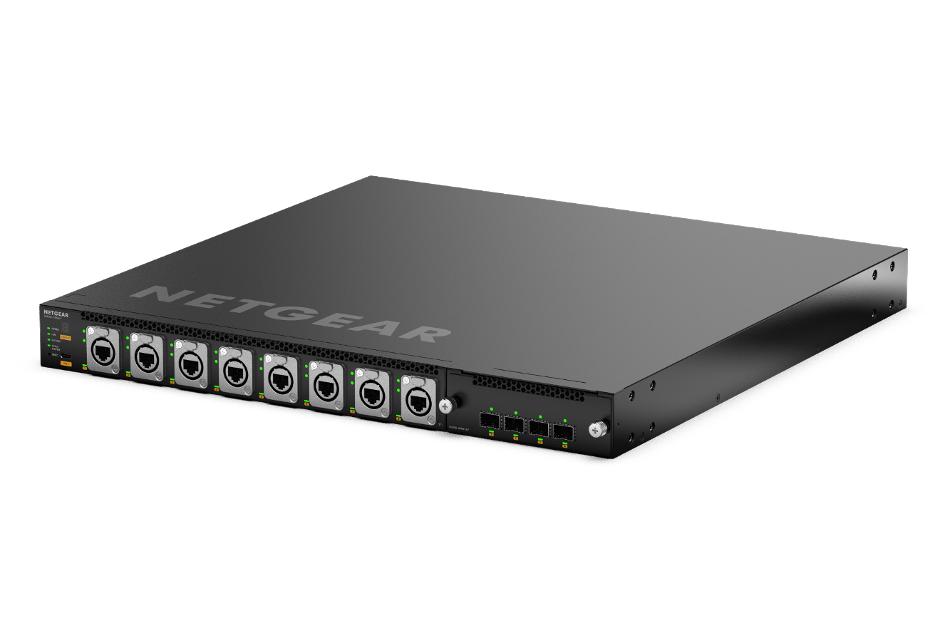

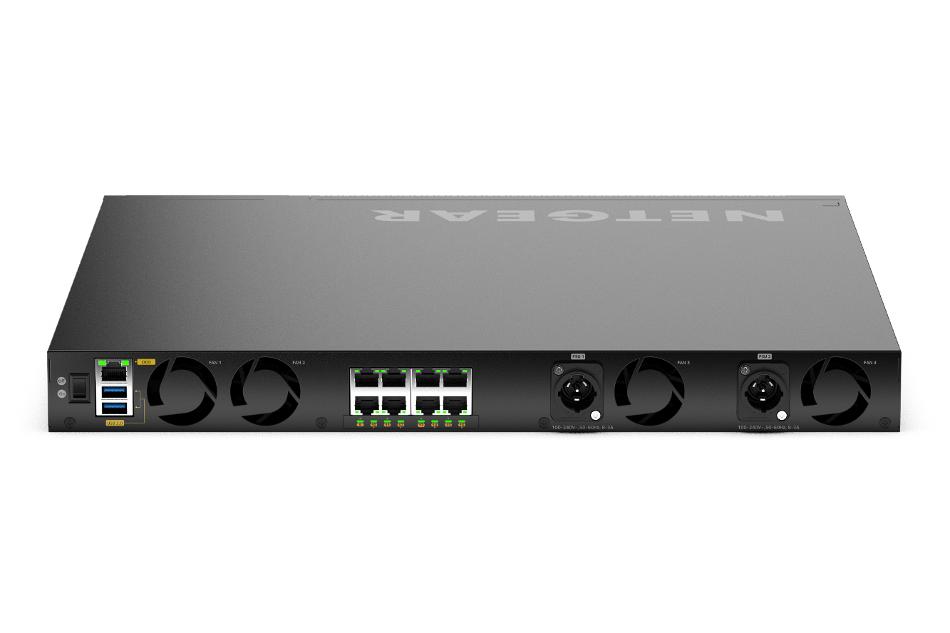

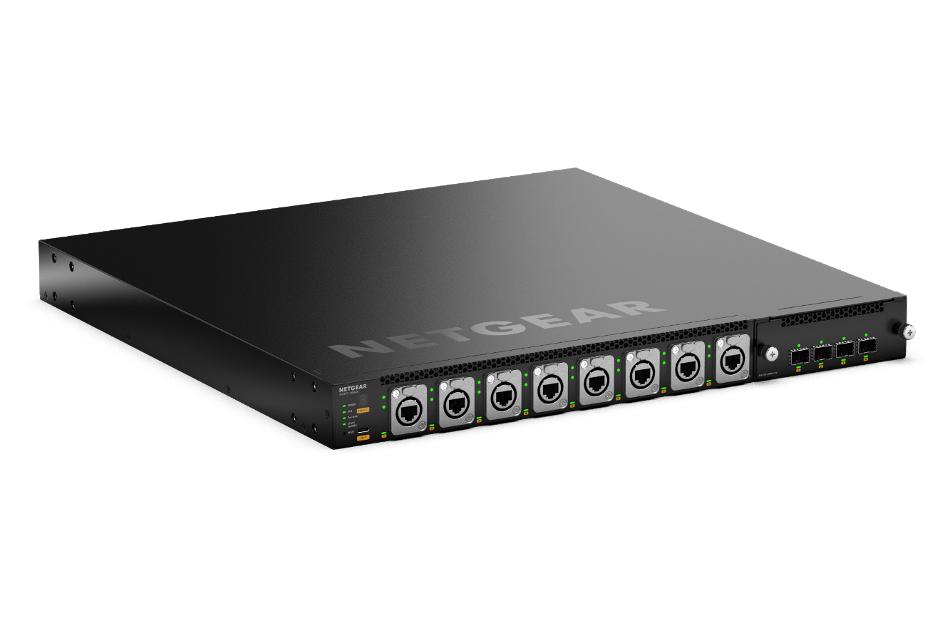

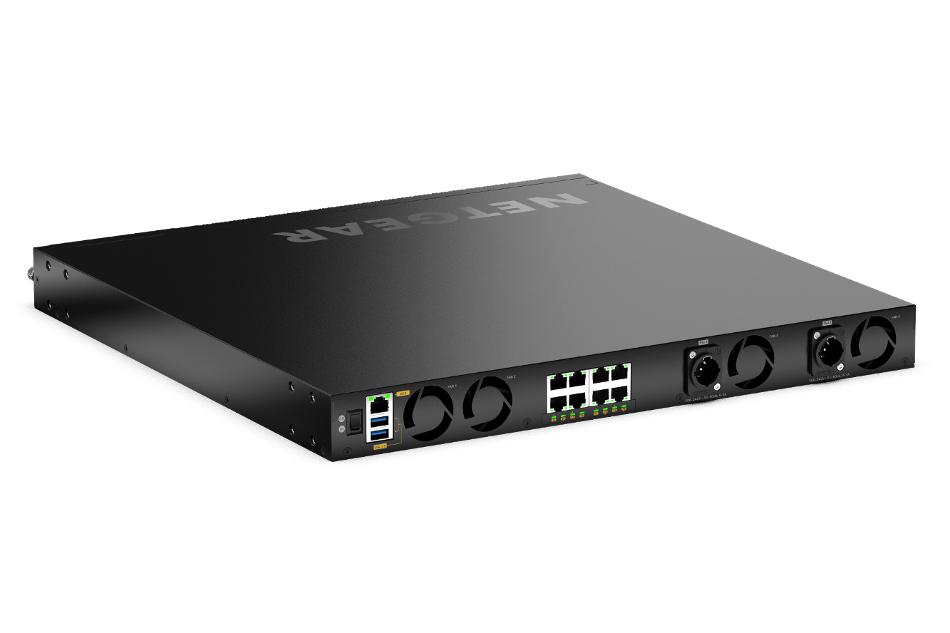

MSM4320
MSM4320
Ports
- 20
Port Types
- 16x 2.5G PoE++ incl. 8x Neutrik etherCON, 4x 25G SFP28 uplinks
PoE Budget
- 1130W total when the redundant PoE budget remains 530W (1+1 configuration)
Details
- Two internal 800W power supplies providing 530W of redundant base PoE budget
- Switch ships with one APM414V interface card with 4x 25G SFP28 ports
- Optional APM414C Interface Card with 4x 10G RJ-45 ports
- Optional APM414SD Interface Card with 2x Neutrik opticalCON DUO connectors for 4x MMF transceivers
- Optional APM414LD Interface Card with 2x Neutrik opticalCON DUO connectors for 4x SMF transceivers
- 2x Neutrik powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, NETGEAR AV OS™, and NETGEAR Engage™ Controller speed up AV installations
- SMPTE ST 2110 Grandmaster Clock and Boundary Clock for AES67 and ST2059-2 applications
- Multi-colour LED on each physical port reflecting the profile colour in the NETGEAR AV OS™ and Engage Controller
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
Power and Throughput
Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
Fast, Easy Configuration
for AV Pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.
Designed For AV Over IP Right out of the Box
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.
Focus on the Event Not the Fan Noise
Most models have quiet mode which greatly reduces fan noise.
