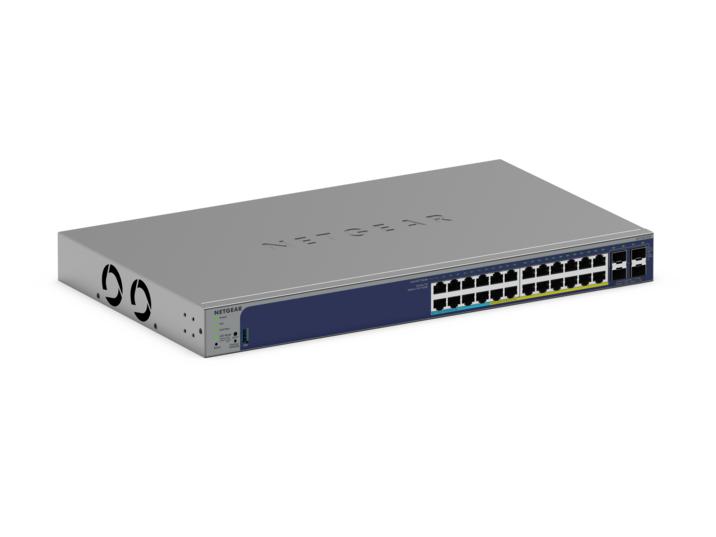

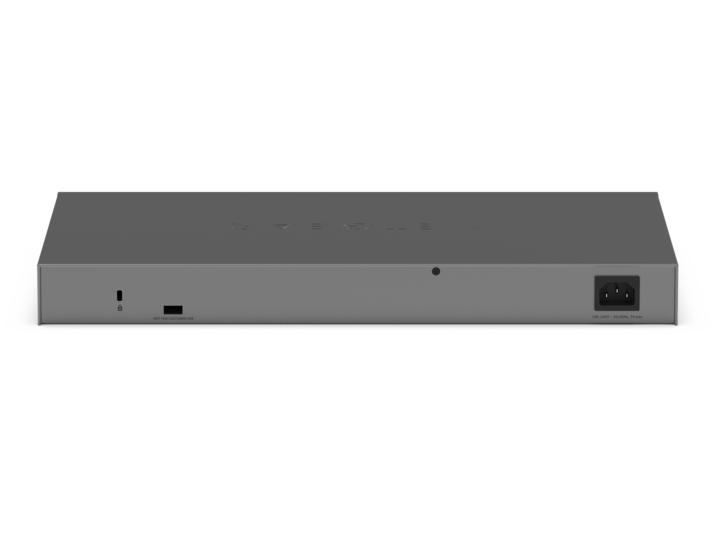

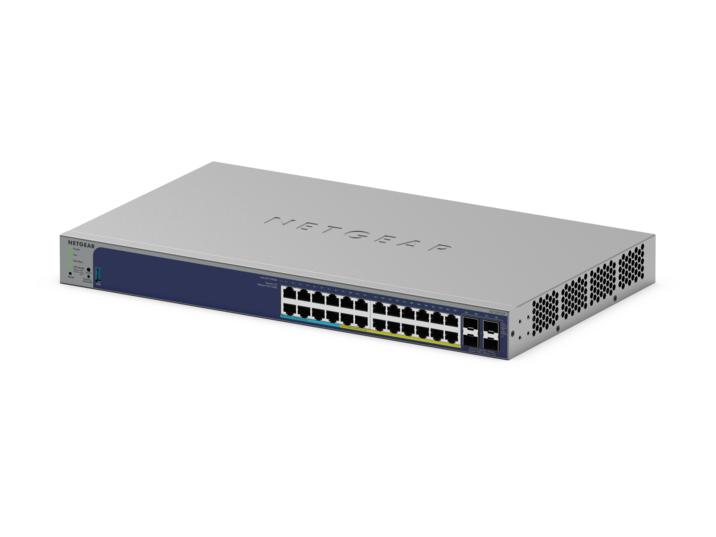

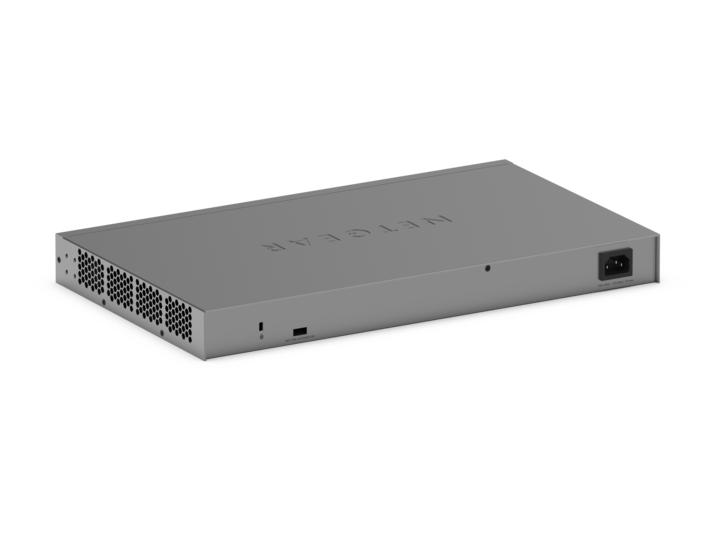

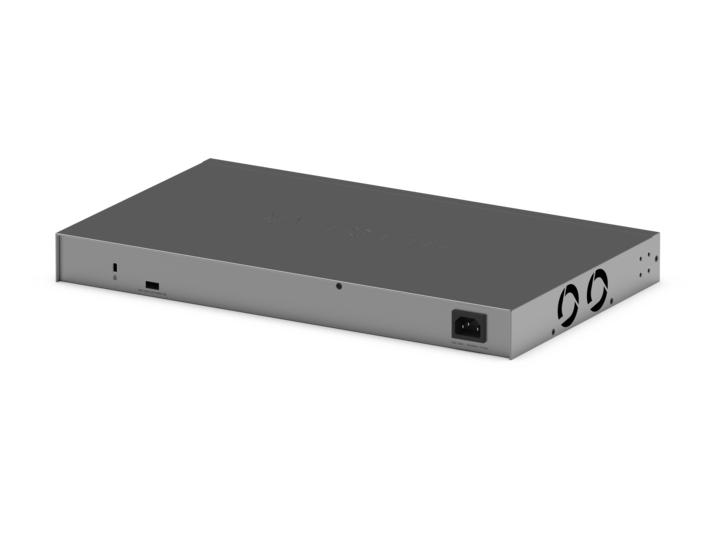

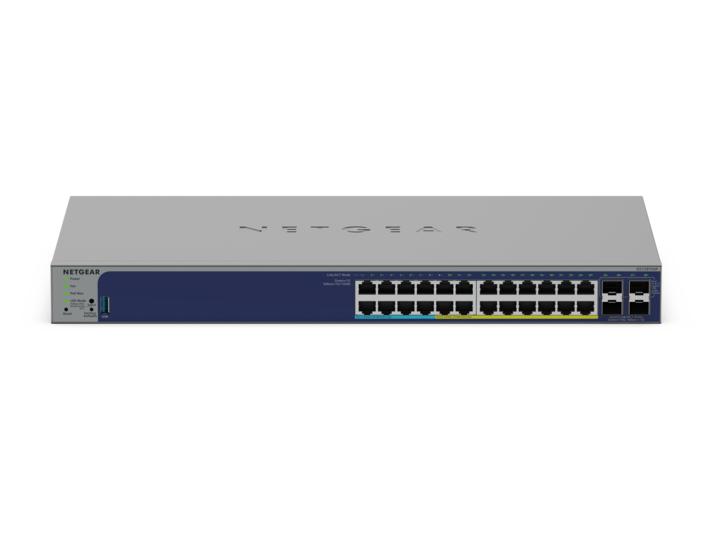

24-Port Gigabit PoE+ and PoE++ Smart Switch w/optional Remote/Cloud Management and 4 SFP+ Ports (420W)
24-Port Gigabit PoE+ and PoE++ Smart Switch w/optional Remote/Cloud Management and 4 SFP+ Ports (420W)
GS728TXUP
1 / 6
Ports
- 24 Ports
Port Types
- 24 x 10/100/1000Base-T RJ45 ports, 4 x 1000/10GBase-X fibre SFP+ ports, 16 x PoE+ (802.3at), 8 x PoE++ (802.3bt) ports
PoE Budget
- 420W
Details
GS728TXUP
Ports
- 24 Ports
Port Types
- 24 x 10/100/1000Base-T RJ45 ports, 4 x 1000/10GBase-X fibre SFP+ ports, 16 x PoE+ (802.3at), 8 x PoE++ (802.3bt) ports
PoE Budget
- 420W
Details
Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
NETGEAR INSIGHT REMOTE MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.
Product Specifications
NETGEAR GS728TXUP with Insight Cloud Management | |
DC power cord (varies by region) | |
Rackmount kit | |
Installation guide | |
Width: | 440 mm |
Depth: | 316 mm |
Height: | 43mm |
Weight: | 3.86 kg (8.51 lb) |
Model Description: | 24-Port Gigabit Ethernet Ultra60 PoE++ Smart Switch with 4 10G SFP+ Ports |
10/100Mbps ports: | 24 |
10G SFP+ ports: | 4: |
Number of PoE+ ports (802.3at): | 16 |
Number of PoE++ ports (802.3bt): | 8 |
Total PoE Power budget (Watts): | 420W |
Max MAC entries: | 16K |
Buffer size: | 1.5MB |
VLAN (Number Supported) : | 512 |
VLAN routing: | Yes |
Dynamic VLAN assignment: | Yes |
MLD Snooping: | Yes |
Static route: | Yes |
Host ARP table: | 512 |
EEE: | Yes |
DoS Prevention: | Yes |
Internal/External Power Supply/Adapter: | Internal |
Max consumption without PoE (Watts): | 27W |
FAN: | 2 |
Acoustic Noise Level @25C (dBA): | 30.5dBA |
Operating Temperature: | 0° to 50° C |
MTBF: | 286,168 hours (32.7 years) |
NETGEAR Insight Remote Cloud Management: | NETGEAR Insight is the easy-to-use solution for delivering centralized remote management of networks across multiple locations for small business owners, IT managers, MSPs and VARs all from a single pane-of-glass on any device. |
Warranty : | This product is backed by NETGEAR limited lifetime hardware warranty. |
| | Click here for coverage, availability and terms and conditions. |
Support : | NETGEAR Support offers a customizable support experience based on your operational needs: |
| |
|
| |
|
| Support coverage in one, three, or five year contracts |
