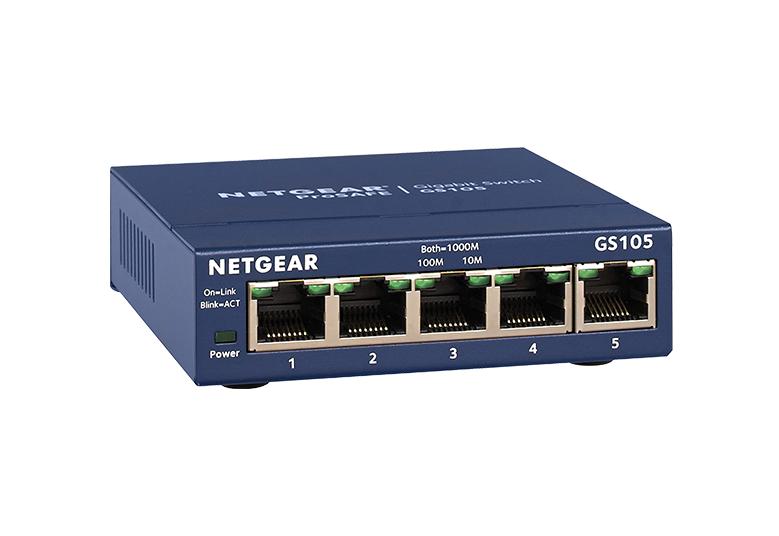

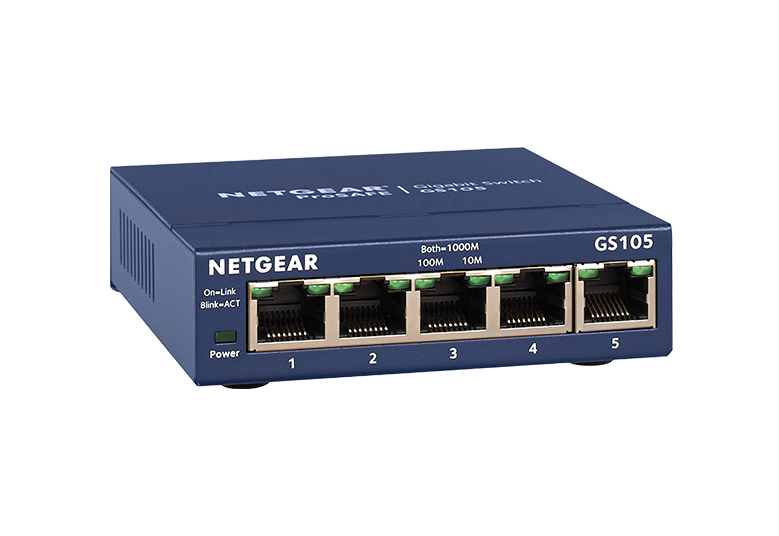

5-Port Gigabit Ethernet Unmanaged Switch
5-Port Gigabit Ethernet Unmanaged Switch
GS105
1 / 8
Details
GS105
Details

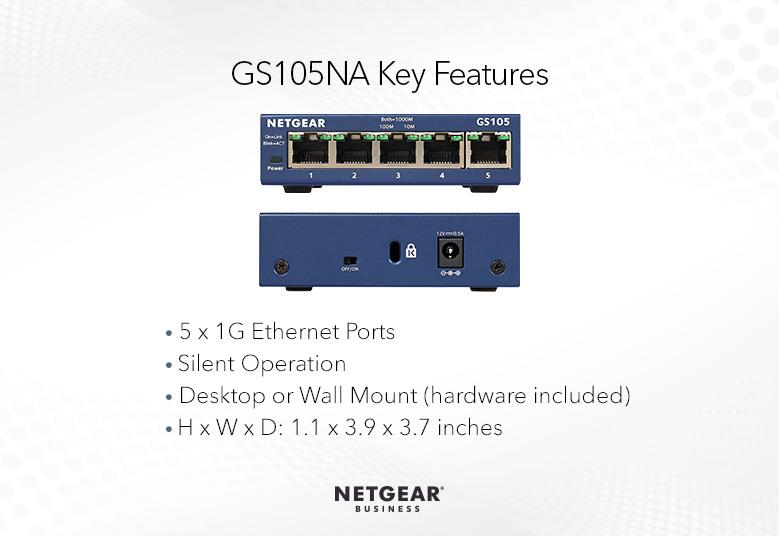

Features

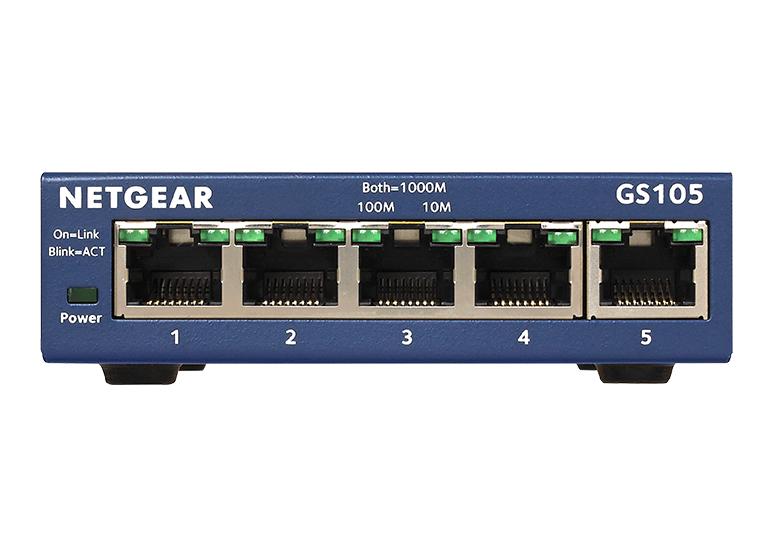

ETHERNET PORT CONFIGURATION
5 Gigabit ports
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE
Non-blocking switching architecture for maximum throughput at wire speed
Reliable Performance
Superior network performance at non-blocking rate delivers true Gigabit speed with no compromise
High Quality
Durable metal case and long product life
Energy Efficient
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate
Metal Case
Durable and Rugged

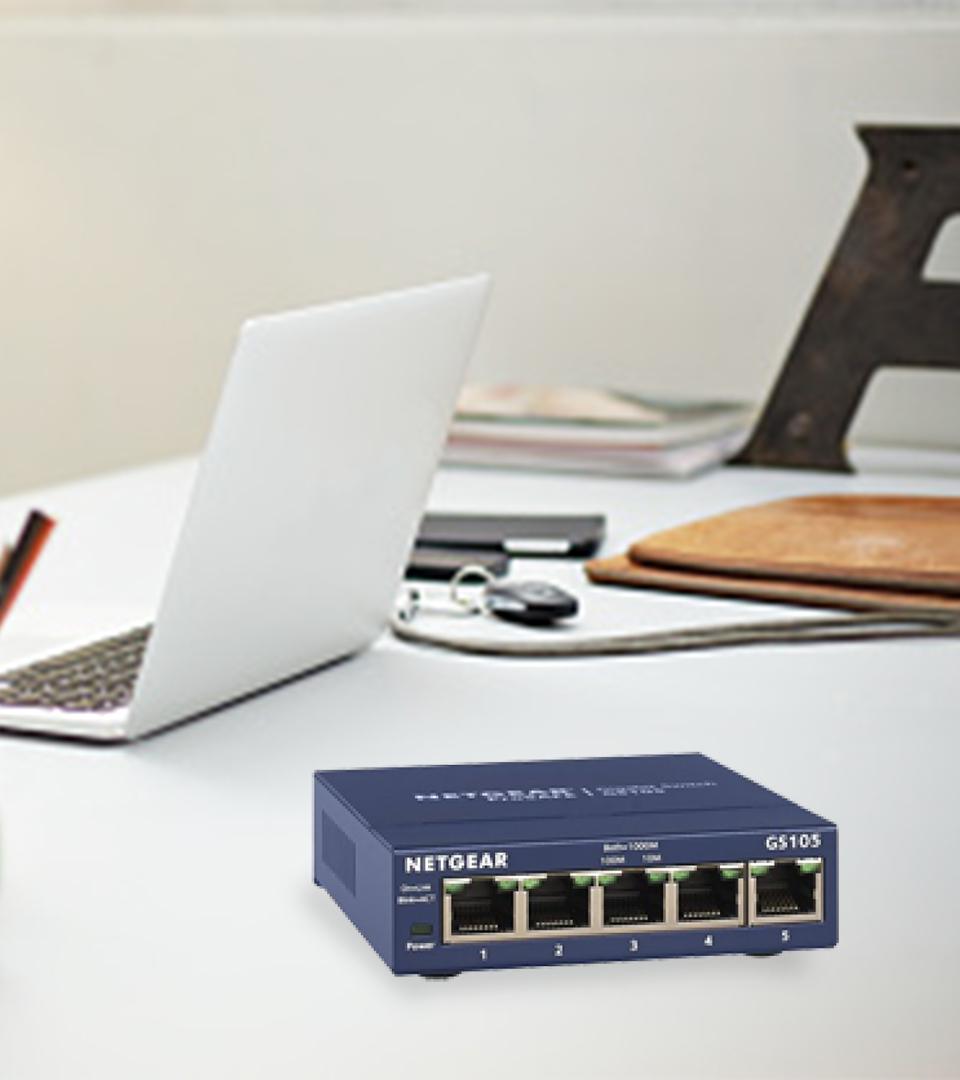

VERSATILE MOUNTING OPTIONS
Supports desktop or wall placement, and includes wall mounting kit in the box
STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs

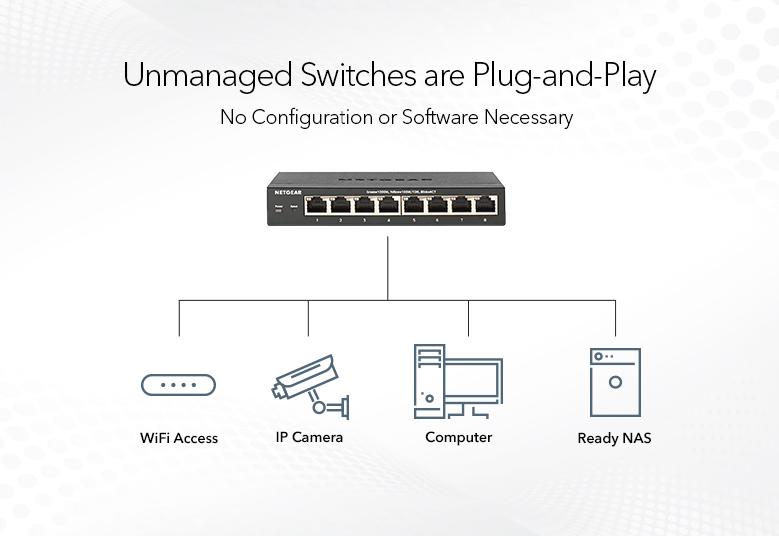

Plug-and-Play
No configuration necessary - perfect for SOHO small-medium businesses and home office / entertainment.
Smart Energy Savings
Energy efficient Ethernet (IEEE 802.3az) cuts energy consumption during little or no activity on active ports.
Built to Last
Switches are housed in a solid, compact metal case and rigorously tested for reliability.
Designed for Zero-Noise Operation
Passively cooled fanless design to protect your business environment.

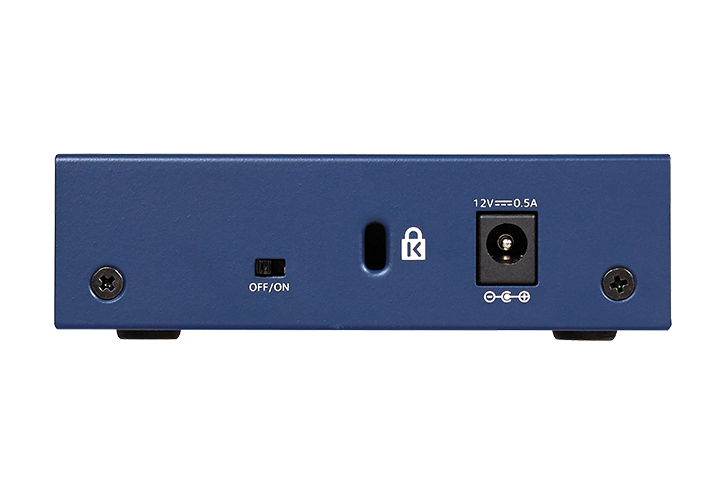

Technical Specifications
Dimensions (WxDxH) @mm : | 94 mm x 100 mm x 27 mm |
Weight (kg) : | 0.261 kg |
Speed : | 10/100/1000Mbps Gigibit Ethernet |
Number of Ports : | 5 |
PoE ports : | n/a |
Total PoE Budget : | n/a |
Loop Detection : | n/a |
Short cable power saving : | n/a |
Energy Efficient Ethernet Support (IEEE 802.3az): | Yes |
Jumbo Frame Support : | Yes |
Queue WRR Ratio : | 1:2:4:8 |
MAC Table Size : | 2K |
Packet buffer size : | 128KB |
IEEE 802.1p QoS : | Yes |
Max Power Consumption : | 2.7W |
Operating Temperature : | 50°C |
MTBF (hours) : | 3,197,945 hours |
FCC Class : | B |
Warranty : | This product is backed by NETGEAR limited lifetime hardware warranty. |
| | Click here for coverage, availability and terms and conditions. |
Support : | NETGEAR Support offers a customizable support experience based on your operational needs : |
| |
|
| |
|
| Support coverage in one, three, or five year contracts |
