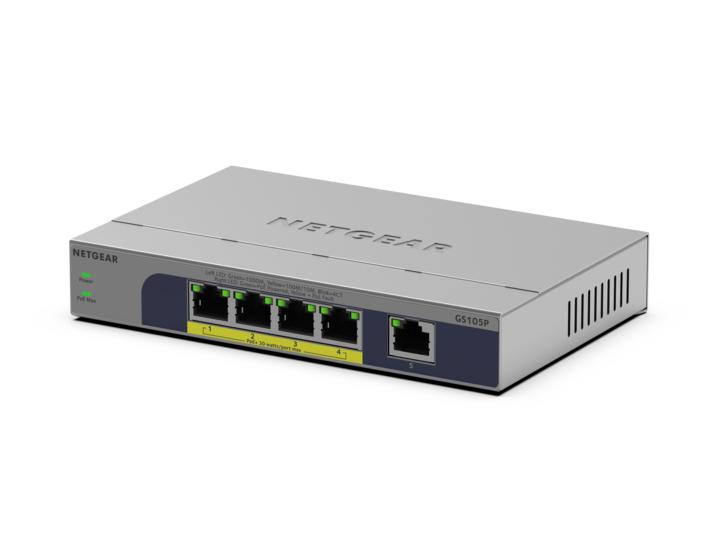

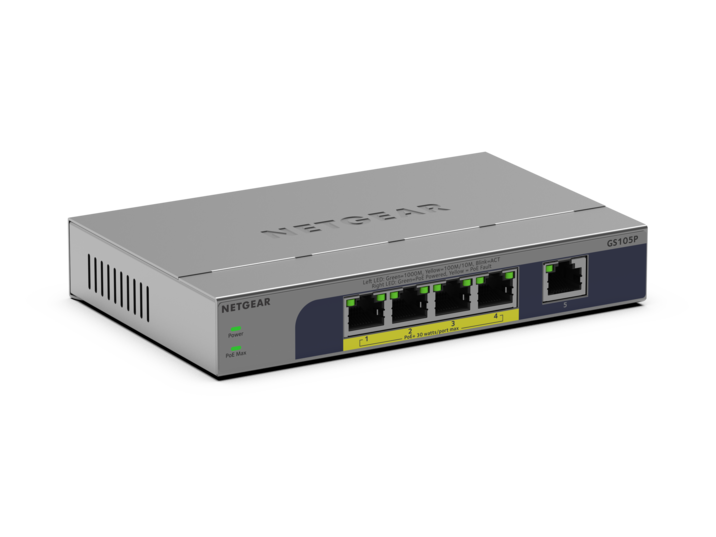

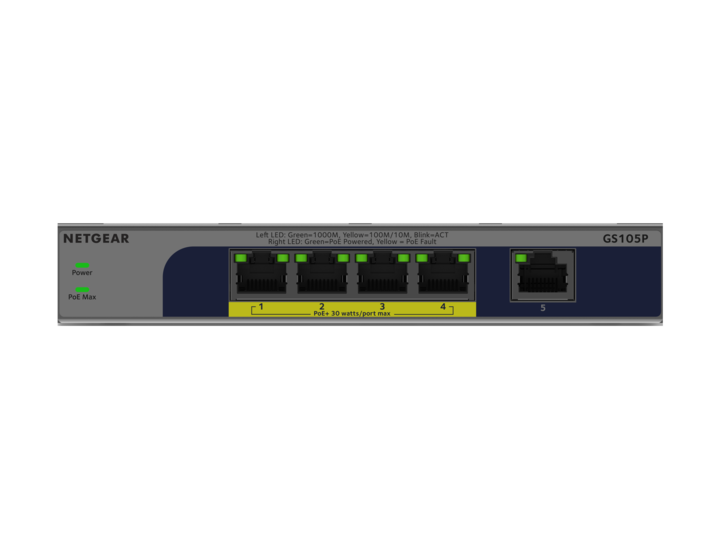

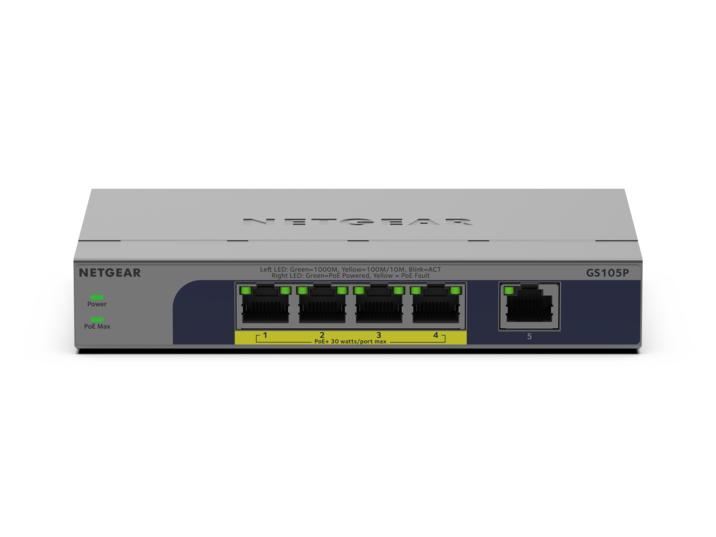

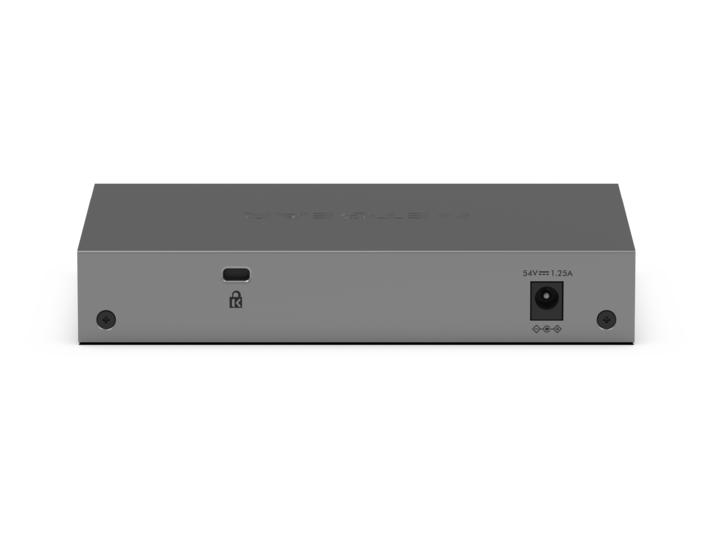

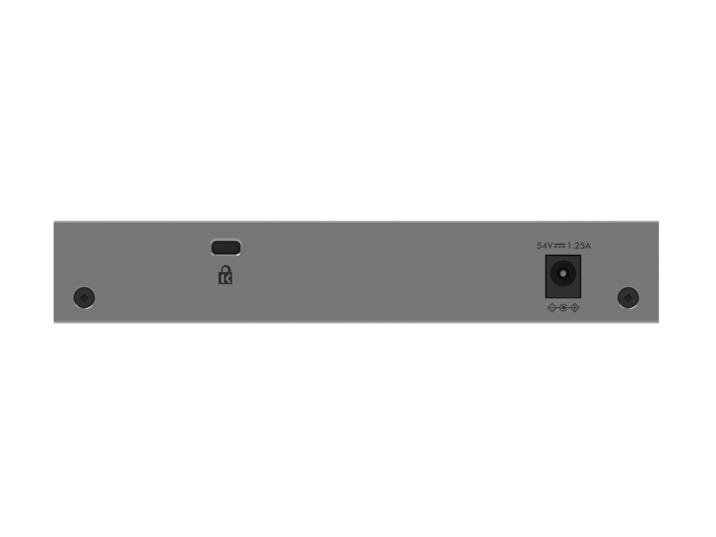

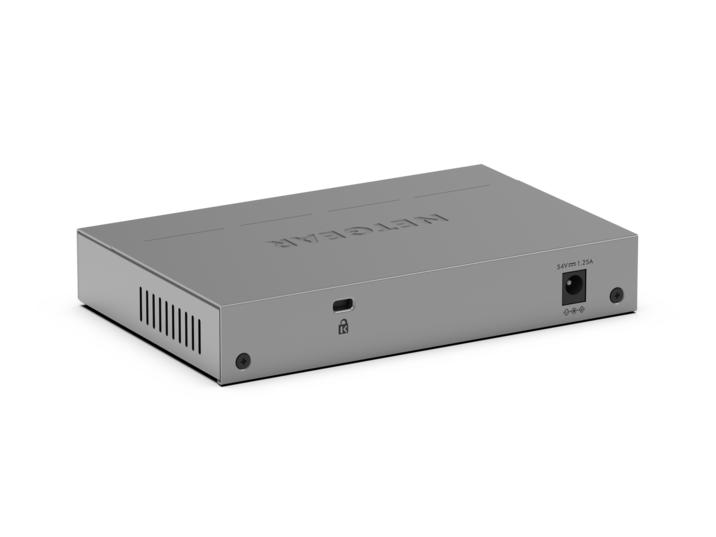

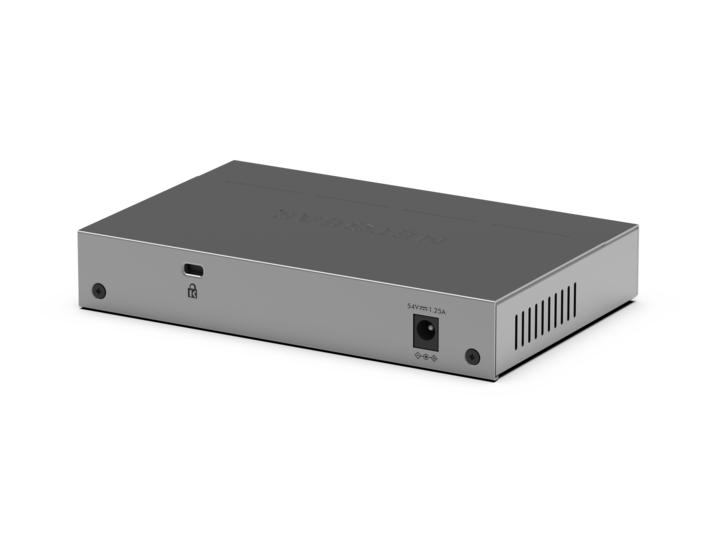

5-Port Gigabit Ethernet Unmanaged PoE Switch
5-Port Gigabit Ethernet Unmanaged PoE Switch
GS105P
1 / 3
Ports
- 5 Ports
Port Types
- 5 x Gigabit Copper Ports, 4 x 802.3af/802.3at Ports
PoE Budget
- Up to 63 W
Details
GS105P
Ports
- 5 Ports
Port Types
- 5 x Gigabit Copper Ports, 4 x 802.3af/802.3at Ports
PoE Budget
- Up to 63 W
Details
Features
POWER-OVER-ETHERNET
4 PoE+ ports delivering up to 30W per port with a 63W total power budget for wireless APs, IP Cameras, IP Phones and much more.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected Flex PoE
Technical Specifications
Dimensions (W x D x H) : | 158 x 101 x 27 mm (6.22 x 4.00 x 1.06 in) |
Weight : | 0.40kg (0.88 lb) |
Speed : | 1G |
Number of Ports : | 5 |
Number of PoE Ports : | 4 |
PoE Power per Port : | Up to 30 |
PoE Budget : | Up to 63W |
Packet buffer size : | 128 KB |
Energy Efficient Ethernet Support (IEEE 802.3az) : | Yes |
Jumbo Frame Support : | 9,216 bytes |
MAC Table Size : | 2K |
IEEE 802.1p QoS : | Yes |
Max Power Consumption : | 67.5W |
Operating Temperature : | 0-40°C (32°F - 104°F) |
MTBF (hours) : | 4,113,947 hours (469 years) |
FCC Class : | Class B |
