5-Port Gigabit Ethernet Unmanaged Essentials Switch
5-Port Gigabit Ethernet Unmanaged Essentials Switch
GS305v3
1 / 9
Ports
- 5 Ports
Port Types
- 5 x 10/100/1000Mbps Ports (Auto Uplink)
PoE Budget
- n/a
Details
GS305v3
Ports
- 5 Ports
Port Types
- 5 x 10/100/1000Mbps Ports (Auto Uplink)
PoE Budget
- n/a
Details
Features
PLUG & PLAY: Simple setup with no software or configuration needed.
FLEXIBLE MOUNTING: Mount on desktop, or wall.
SMALL SIZE, METAL CASE, AND SILENT OPERATION: Durable quality, space saver, and quietness for peace of mind.
The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts
Unmanaged Gigabit switches come in a wide range of models including desktop, wall-mount and rackmount form factors and 5 to 24 port configurations
Energy efficient, built to last, and rigorously tested to provide the reliability businesses need
802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks
Choice of Fast Ethernet and Gigabit Ethernet connectivity
Energy-efficient technology for power savings
Auto-MDI/MDIX eliminates the need for crossover cables
Non-blocking switching architecture for maximum throughput at wire speed
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Desktop or wall-mountable
Technical Specifications
Dimensions (W x D x H) | 101 x 94 x 29 mm (4.0 x 3.7 x 1.1 in) |
Weight | 0.24 kg (0.53 lb) |
Model Description | NETGEAR 5-Port Gigabit Ethernet Unmanaged Essentials Switch (GS305v3) |
Speed | Gigabit |
Number of Ports | 5 |
Connector Type | Metal |
Switch Housing | Metal |
LEDs | Power, Link/Activity |
Short cable power saving | Yes |
Energy Efficient Ethernet Support (IEEE 802.3az) | Yes |
Jumbo Frame Support | 9,216 bytes |
MAC Table Size | 2K |
Packet buffer size | 128 KB |

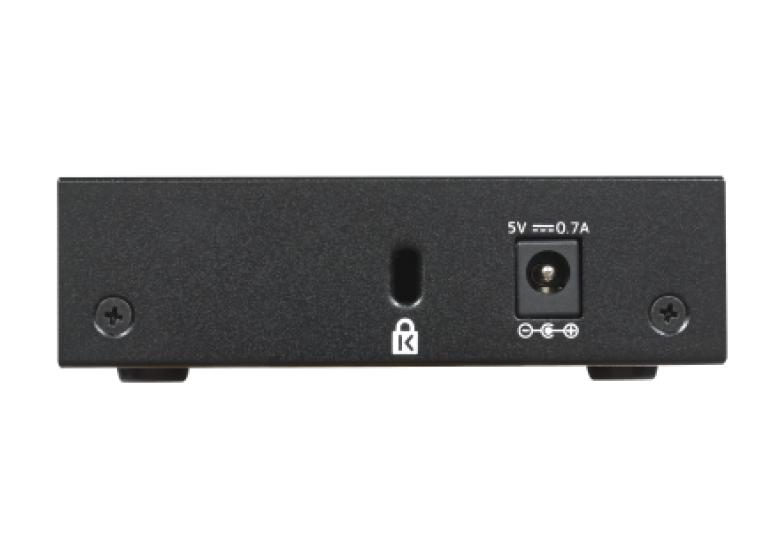

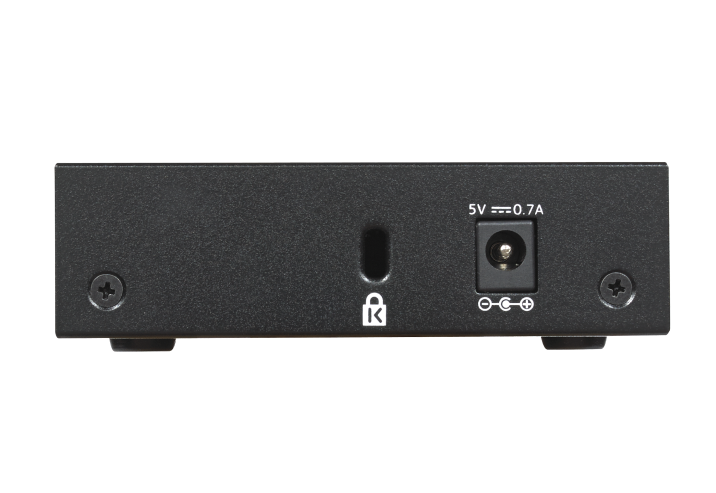

DC Power Adapter | 5V / 0.7A |
Max Power Consumption (Watts) | 2.34W |
Acoustic Noise Level @ 25° C (dBA) | 0 dBA (Fanless) |
Operating Temperature | 0° to 40°C (32° to 104°F) |
MTBF (@ 25° C) | 3,670,230 hours |
Electromagnetic compliance (A or B) | Class B |
Form Factor | Desktop or wall-mountable |
Warranty | This product is backed by NETGEAR limited lifetime hardware warranty. |
| Click here for coverage, availability and terms and conditions. |
Support | NETGEAR Support offers a customizable support experience based on your operational needs: |
| |
|
|
|
| Support coverage in one, three, or five year contracts |
