NETGEAR Insight Managed WiFi 6 AX1800 Dual-band Gigabit PoE Access Point (WAX610W)
NETGEAR Insight Managed WiFi 6 AX1800 Dual-band Gigabit PoE Access Point (WAX610W)
WAX610W
1 / 6
Ports
- 5 Ports
Port Types
- 1 × 2.5G
Details
- Dual-band delivering 1.8 Gbps of data throughput
- Purpose-built for hospitality, MDUs, and classrooms
- Connect to a Gigabit Ethernet switch for maximum speed
- 8 separate wireless networks (SSIDs)
- Simplified deployment with PoE
- VLAN and QoS configurable via Insight Remote Cloud Management
- Compatible with WiFi 4, WiFi 5, WiFi 6E and WiFi 7 on the 2.4 and 5GHz Bands
WAX610W
Ports
- 5 Ports
Port Types
- 1 × 2.5G
Details
- Dual-band delivering 1.8 Gbps of data throughput
- Purpose-built for hospitality, MDUs, and classrooms
- Connect to a Gigabit Ethernet switch for maximum speed
- 8 separate wireless networks (SSIDs)
- Simplified deployment with PoE
- VLAN and QoS configurable via Insight Remote Cloud Management
- Compatible with WiFi 4, WiFi 5, WiFi 6E and WiFi 7 on the 2.4 and 5GHz Bands
The most powerful WiFi ever
4x | 40% | 100% |
more capacity | increase in data throughput | backwards compatibility |
NETGEAR INSIGHT REMOTE MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. Includes 1-year subscription.
 |
 |
Features and benefits
POWERFUL BUSINESS WIFI
Faster and more reliable WiFi due to higher throughput and more coverage with the use of both 2.4Ghz and 5Ghz bands simultaneously.
IDEAL FOR HOSPITALITY & EDUCATION
Ultimate WiFi performance for hotels, multi-dwelling units (MDUs), and classrooms.
SEAMLESS MESH WIFI
Seamlessly expand your network with any mesh-connected Insight access points.
EASY DEPLOYMENT

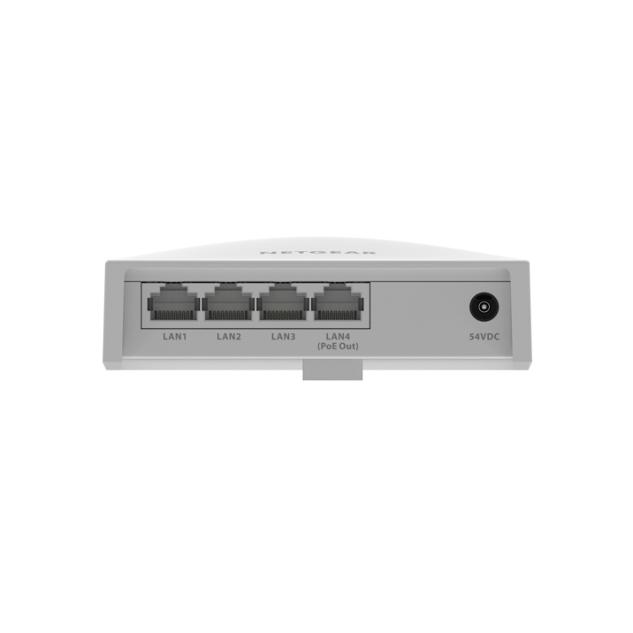

One PoE Gigabit port for easy setup, plus four additional LAN ports to connect to IP phones, smart TVs, and more.
CUSTOM GUEST WIFI
Create a branded, customizable guest WiFi experience with the optional Captive Portal.
8 WIRELESS NETWORKS (SSIDS)
Separate and secure networks for admin, guests, employees and IoT devices like cameras, locks and more.
BUSINESS-LEVEL SECURITY
WPA3 for the highest level of WiFi connection security.
SEPARATE VLANS
Keep employee and guest traffic safely separated and segregated.
EASY SET UP
Zero-touch deployment and setup with NETGEAR Insight.
FLEXIBLE MOUNTING
Simple, secure wall installation with the included hardware.
Technical Specifications
Dimensions : | 110 X 130 X 34.2 mm (4.33 X 5.12 X 1.34 in) |
Weight : | 0.38kg (0.85lb) |
WiFi Standard: | 5GHz: 802.11a/b/g/n/ac/ax, 2.4GHz: 802.11b/g/n/ac/ax |
Wireless Mode (Transmit x Receive): | 2.4GHz is 2x2, 5GHz is 2x2 |
OFDM/OFDMA: | OFDM and OFDMA |
Multi-User MIMO: | Bidirectional MU-MIMO |
Maximum Theoretical Throughput: | AX1800, 1.8Gbps |
Maximum Theoretical Throughput per Band: | 2.4GHz: 600Mbps, 5GHz: 1,200Mbps |
Antenna Gain Internal : | 2.4G - 3dBi/5G - 3dBi |
Power over Ethernet (PoE): | 802.3af |
PoE Power Consumption: | 20.19W |
Centralized Management: | Insight App |
Secure Socket Layer (SSL): | Yes |
Router Mode: | Yes |
WiFi Range: | 1,000 square feet |
Fast Roaming: | Yes |
Ethernet Ports: | 1 x GbE PoE uplink, 4 x GbE LAN ports |
Management: | NETGEAR Insight — Secure cloud and local network management |
Captive Portal: | Captive portal authentication for guests via NETGEAR Insight |
SSID wireless networks: | 8 |
| Supports OWE, WPA2-PSK, WPA3-PSK, WPA2-Enterprise, WPA3-Enterprise |
| WAX610W Insight Managed Wireless Access Point |
| Wall mount kit |
| Installation guide |
Warranty : | This product is backed by NETGEAR limited lifetime hardware warranty. |
|
| Click here for coverage, availability and terms and conditions. |
|
Support : | NETGEAR Support offers a customizable support experience based on your operational needs: |
|
|
|
|
|
|
|
| Support coverage in one, three, or five year contracts |
|
