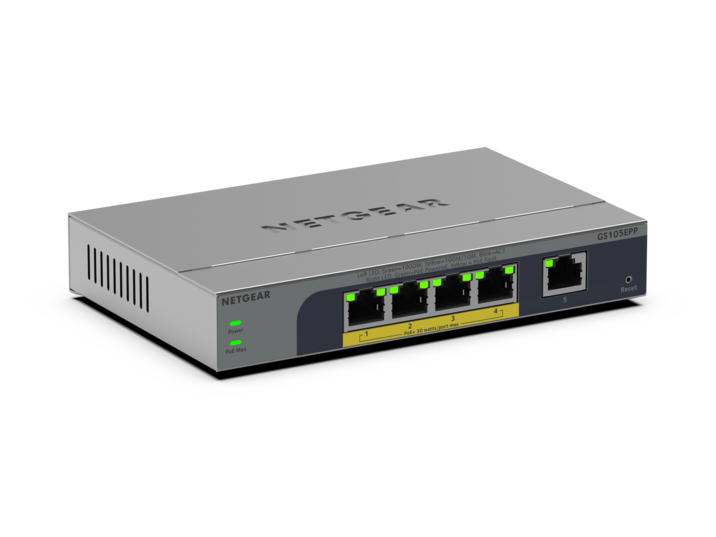

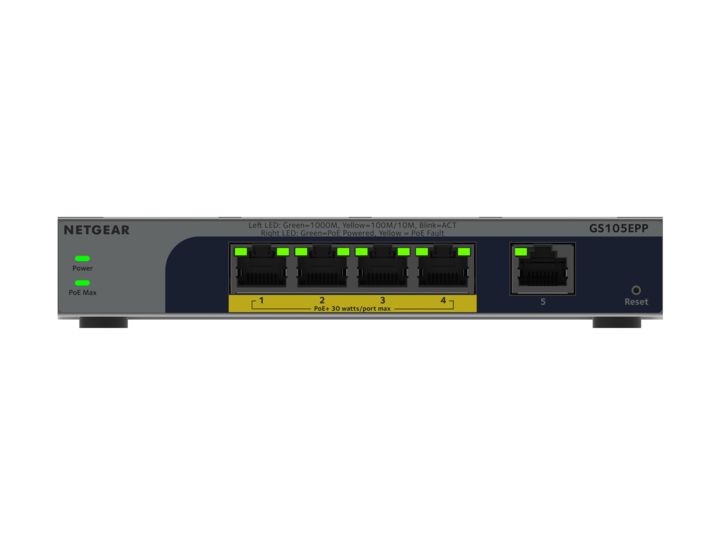

5-Port Gigabit Ethernet Easy Smart High-Power PoE+ Switch (120W)
5-Port Gigabit Ethernet Easy Smart High-Power PoE+ Switch (120W)
GS105EPP
1 / 6
Ports
- 5 Ports
Port Types
- 5 x 10/100/1000 RJ45 Copper Ports (Auto Uplink)
- 4 x PoE+ 802.3at Ports
- 0 x SFP fiber ports
PoE Budget
- Up to 120W
Details
GS105EPP
Ports
- 5 Ports
Port Types
- 5 x 10/100/1000 RJ45 Copper Ports (Auto Uplink)
- 4 x PoE+ 802.3at Ports
- 0 x SFP fiber ports
PoE Budget
- Up to 120W
Details
Features and benefits
EASY POE CONTROLS
Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices
GIGABIT ETHERNET
5 ports provide gigabit Ethernet connectivity to your devices
VLANS
Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Place your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Technical Specifications
Dimensions (W x D x H) : | 158 x 101 x 27 mm(6.2 x 4.0 x 1.1 in) |
Weight : | 0.40kg (0.88 lb) |
Speed : | 1G |
Number of Ports : | 5 |
Number of PoE+ Ports : | 4 |
PoE Power per Port : | Up to 30 |
PoE Budget : | Up to 120W |
Energy Efficient Ethernet Support (IEEE 802.3az) : | Yes |
Jumbo Frame Support : | 9,216 bytes |
MAC Table Size : | 2K |
Packet buffer size : | 192 kb |
IEEE 802.1p QoS : | Yes |
Max Power Consumption : | 137.8W |
Operating Temperature : | 0-40°C (32°F - 104°F) |
MTBF (hours) : | 853,770 hours (97 years) |
FCC Class : | Class B |
Warranty : | This product is backed by NETGEAR limited lifetime hardware warranty. |
| | Click here for coverage, availability and terms and conditions. |
Support : | NETGEAR Support offers a customizable support experience based on your operational needs: |
| |
|
|
|
| Support coverage in one, three, or five year contracts |
