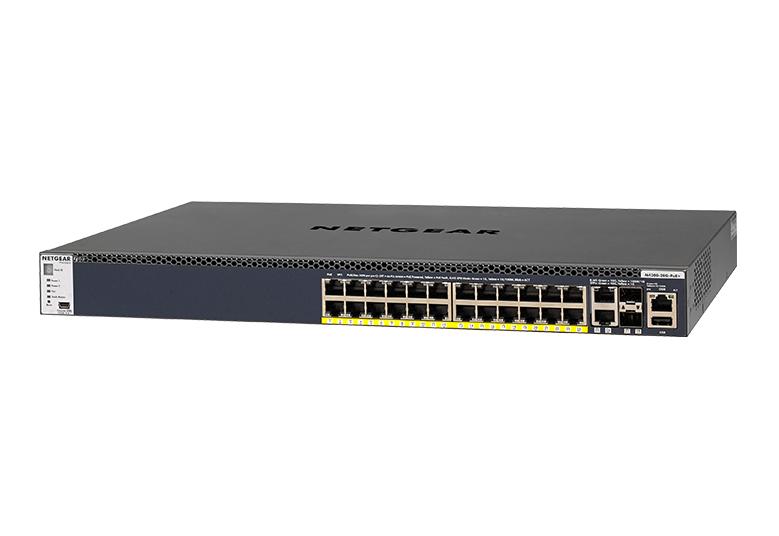

M4300-28G PoE+, GSM4328PB, 24x1G PoE+ 630W, 2x10G, 2xSFP+
M4300-28G PoE+, GSM4328PB, 24x1G PoE+ 630W, 2x10G, 2xSFP+
Features
Business Continuity Management
Full-width switches offer dual redundant, modular power supplies (select m4300 models)
High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Simple GUI
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow
With PoE+, plug and play ports, and hot swap, you're ready to grow whenever you need to.
Industry Standard
SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)
Zero Touch AV-over-IP
Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
No Delay
Non-Blocking Fabric for Near-Zero Switch Latency
NETGEAR IGMP Plus™
Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
Dedicated Design
ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com
One Cord for All
110V or 220V hot swap PSUs deliver 630W-720W redundant PoE+ budget across 24 ports
Industry-Standard Management
Stay on top of operations with: CLI, local GUI, SNMP, sFlow, RSPAN, single pane of glass NMS300
Secure Your Data
Defend with Access Control, DiffServ QoS policies, LACP Link Aggregation, Private VLANs, Denial of service protection
Dependable Operations
Enjoy high availability across virtual servers through load balancing and nonstop forwarding failover.
Product Specifications
Warranty : | This product is backed by NETGEAR limited lifetime hardware warranty. |
| | Click here for coverage, availability and terms and conditions. |
Support : | NETGEAR Support offers a customizable support experience based on your operational needs: |
| | Sprint support option with 24/5 Technical Support (phone, online) and Advance RMA Replacement |
| | Overdrive support option with 24/7 Technical Support (phone, online, 2h SLA) and Next Business Day RMA Replacement |
| Support coverage in one, three, or five year contracts |
Hardware Specifications: | Model Number: GSM4328PB |
| | PoE Budget (110V): 630W w/1 PSU, 630W w/2 PSUs in RPS mode, 720W w/2 PSUs in EPS mode |

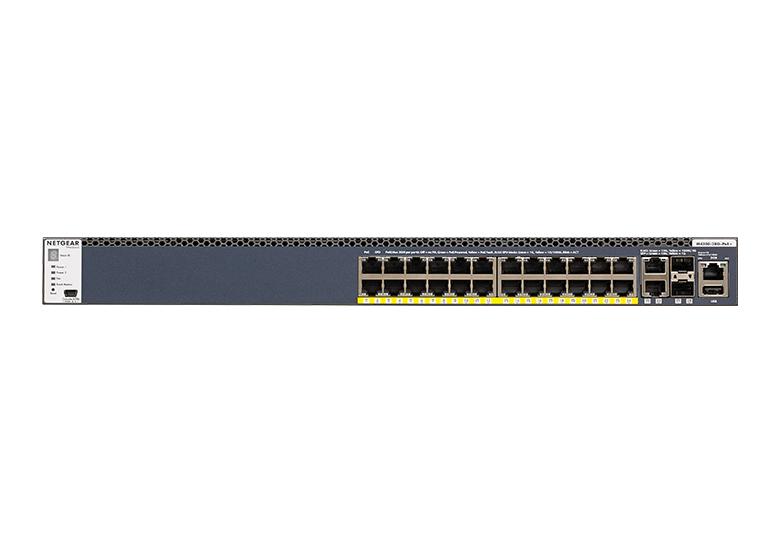

| | 24 Ports PoE+ Copper 10M / 100M / 1G |
| | 2 Ports Copper 100M / 1G / 10G |
| | 2 Ports SFP+ 1G / 10G |

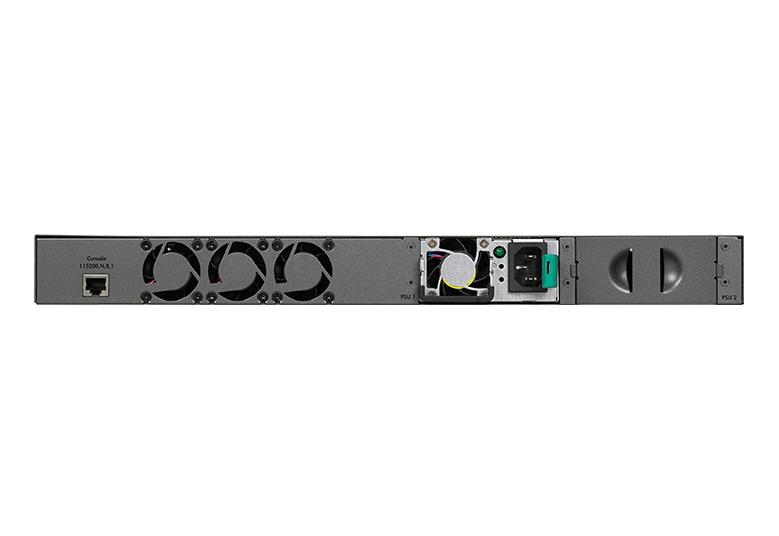

| | 2 Modular Bays with One (1) 1000W Modular PSU included APS1000W |
| | 128 Gps Switching Fabric |
| | Fixed Fan Front-to-Back 39.8dB |
Management Options: | Ethernet: Out-of-band 1G port (Front) |
| | Console: RJ45 RS232 (Back) |
| | Console: Mini-USB (Front) |
| | Storage: USB (Front) |
| | Single-pane-of-glass NMS300 management platform with mass-configuration support |
| | Dual firmware image and configuration file for updates with minimum service interruption |
