8-Port Gigabit Ethernet PoE+ Smart Managed Essentials Switch with 2 Dedicated SFP Ports (55W)
8-Port Gigabit Ethernet PoE+ Smart Managed Essentials Switch with 2 Dedicated SFP Ports (55W)

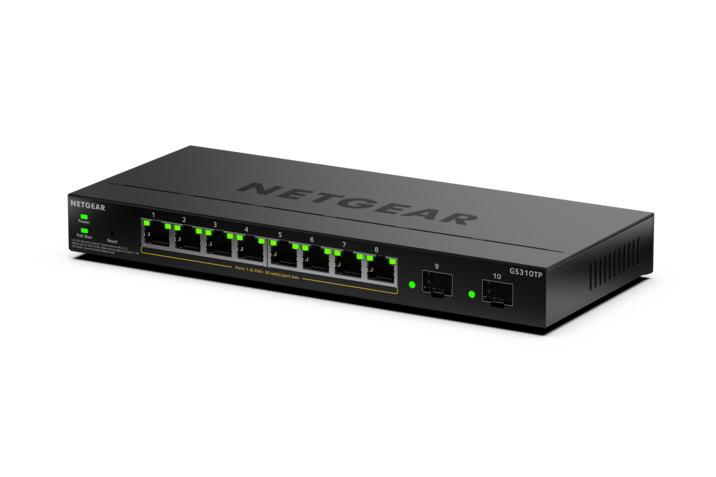

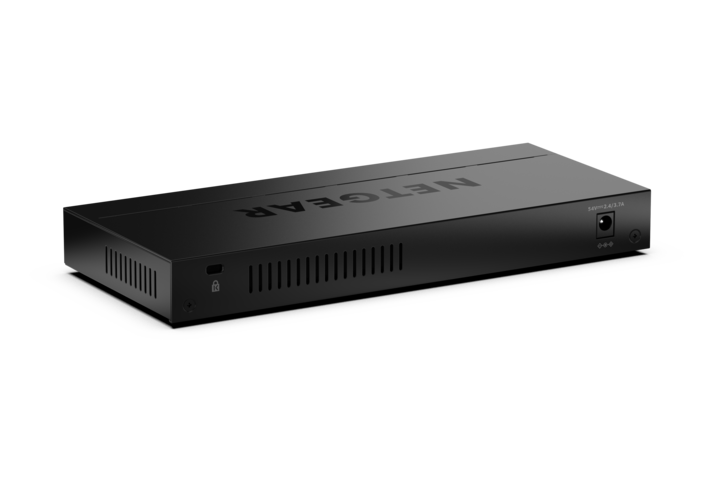

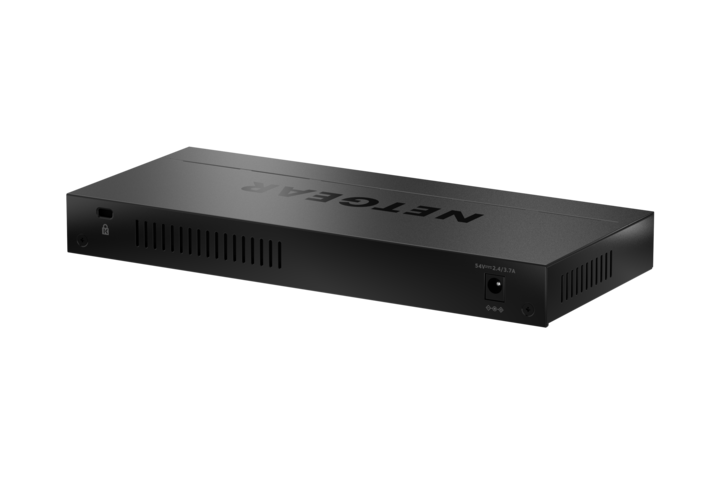

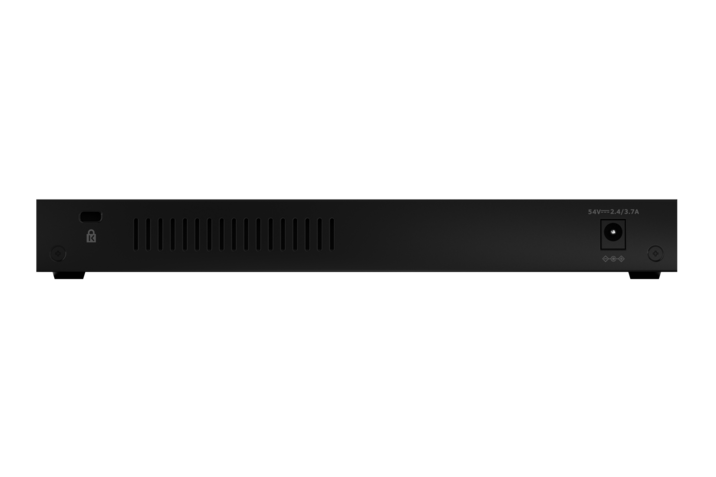

GS310TPv2
1 / 6
Ports
- 10 Ports
Port Types
- 8 x Gigabit Ethernet PoE+ ports
- 2 x SFP fiber uplink ports (dedicated)
PoE Budget
- 55W
Details
- Advanced L2/L3 smart switching features
- Easy-to-use web browser-based management GUI
- Advanced per-port PoE controls
- Quiet desktop or wall-mount placement
- Energy Efficient Ethernet (IEEE 802.3az)
GS310TPv2
Ports
- 10 Ports
Port Types
- 8 x Gigabit Ethernet PoE+ ports
- 2 x SFP fiber uplink ports (dedicated)
PoE Budget
- 55W
Details
- Advanced L2/L3 smart switching features
- Easy-to-use web browser-based management GUI
- Advanced per-port PoE controls
- Quiet desktop or wall-mount placement
- Energy Efficient Ethernet (IEEE 802.3az)
Features
VERSATILE PORT CONFIGURATION
Features 8 Gigabit Ethernet PoE+ ports and 2 dedicated SFP fiber ports for flexible, high-speed connectivity and fiber uplinks to your core network.
POWER-OVER-ETHERNET
A 55W total PoE budget supports powering PoE+ devices such as IP cameras, VoIP phones, and wireless access points from a single switch.
ADVANCED NETWORK MANAGEMENT
Equipped with L2/L3 Lite features including VLANs, QoS, and static routing to enhance network control, security, and efficiency.
EASY-TO-USE WEB INTERFACE
Simplify setup and network administration with an intuitive web-based management GUI, designed for users without extensive IT expertise.
Product Specifications
NETGEAR 10-Port Gigabit Ethernet PoE+ Smart Managed Essentials Switch |
Power adapter |
Wall-mount kit and rubber feet |
Width | 236mm |
Depth | 101mm |
Height | 27mm |
Weight | 0.61kg (1.34lb) |
10/100Mbps ports | N/A |
Gigabit ports | 8 |
SFP ports | 2 |
Number of PoE | 8 |
PoE+ (802.3at) | 8 (30W per port) |
Total PoE Power budget (Watts) | 55W |
Max MAC entries | 8K |
Buffer size | 512KB |
VLAN (Number Supported) | 64 |
VLAN routing | Yes |
Dynamic VLAN assignment | Yes |
Static route | IPv4 - 32 |
Host ARP table | 512 |
EEE | Yes |
DoS Prevention | Yes |
Internal/External | External, DC54V 1.25A |
Max consumption (Watts) | 69.5W |
FAN | None, Fanless |
Acoustic Noise Level @25C (dBA) | 0 |
Operating Temperature | 0° to 40° C |
MTBF | 1,200,041 hours (137 years) |
NETGEAR Web GUI | Configure your network effortlessly with the user friendly NETGEAR web GUI, no IT expert required. |
