24x1G PoE+ 480W 2x1G 和 4xSFP+ 全网管交换机
24x1G PoE+ 480W 2x1G 和 4xSFP+ 全网管交换机
GSM4230PX
1 / 12
端口
- 30 个端口
端口类型
- 24 x 1G PoE+
- 2 x 1G
- 4 x SFP+
PoE 预算
- 24 个 PoE+（30W/端口），480W 预算
详细信息
符合 TAA 标准的 SKU 可供选择。请联系您的销售代表
GSM4230PX
端口
- 30 个端口
端口类型
- 24 x 1G PoE+
- 2 x 1G
- 4 x SFP+
PoE 预算
- 24 个 PoE+（30W/端口），480W 预算
详细信息
符合 TAA 标准的 SKU 可供选择。请联系您的销售代表
POWERFUL AV SWITCHES
MADE SIMPLE
Pre-configured to get you up and running faster
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

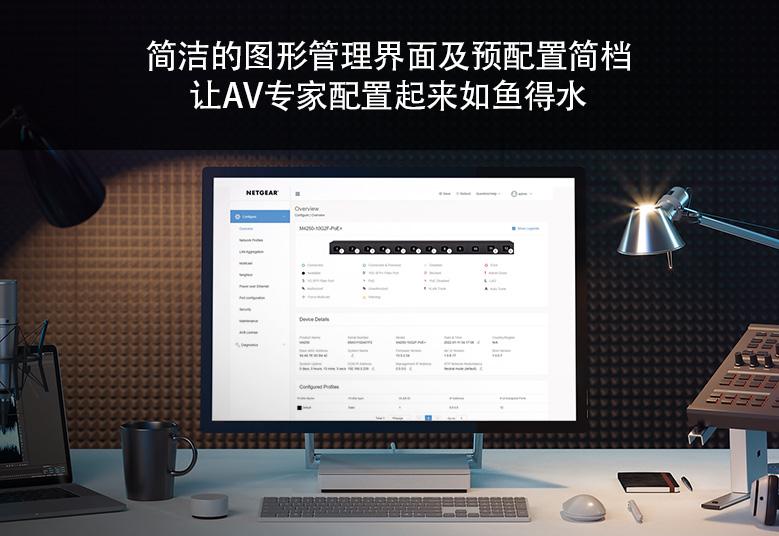

FAST, EASY
CONFIGURATION
FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP
RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

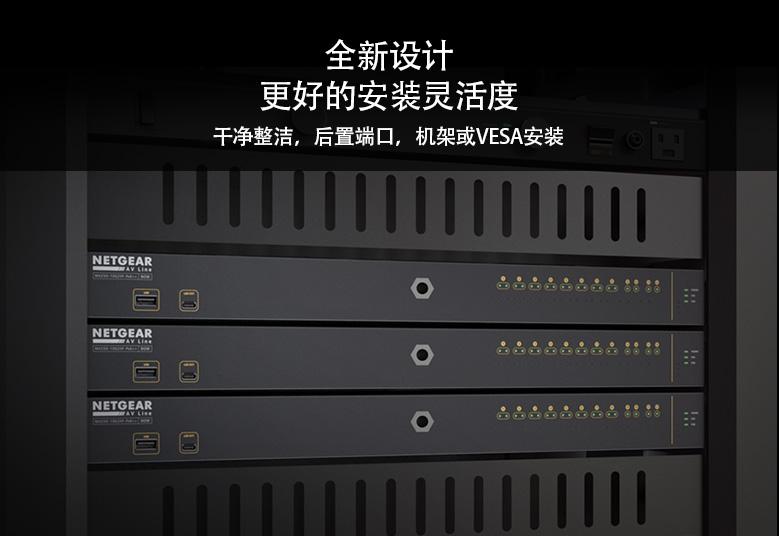

REFINED DESIGN
PROVIDES MOUNTING FLEXIBILITY

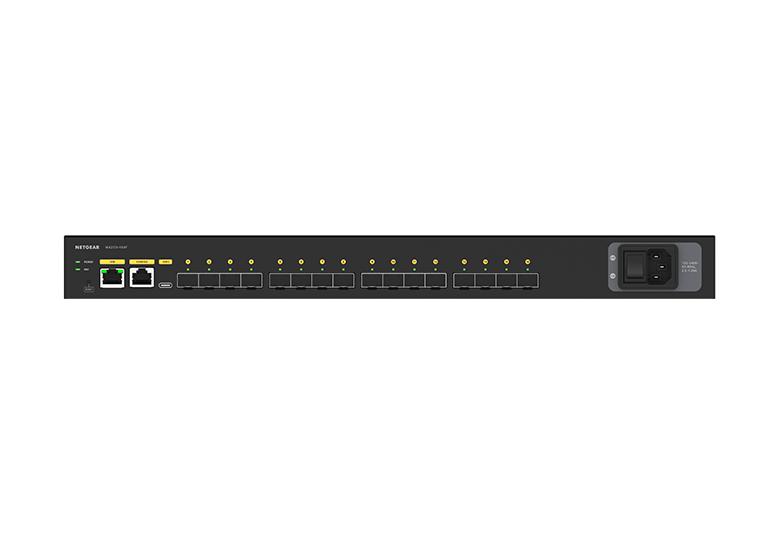

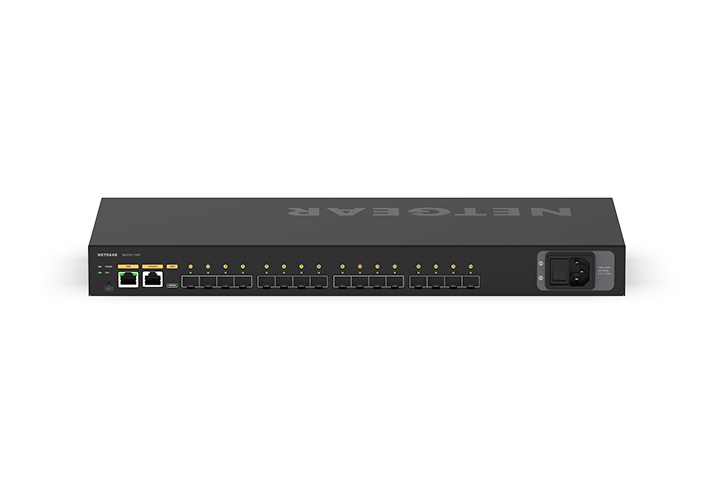

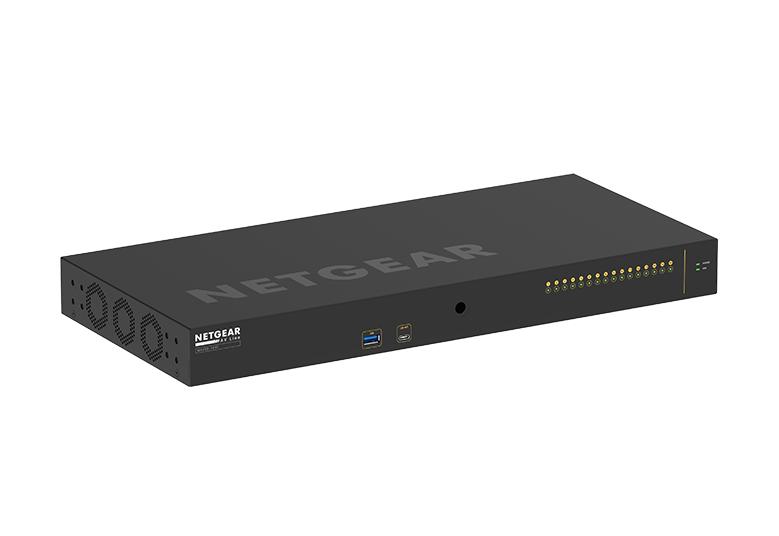

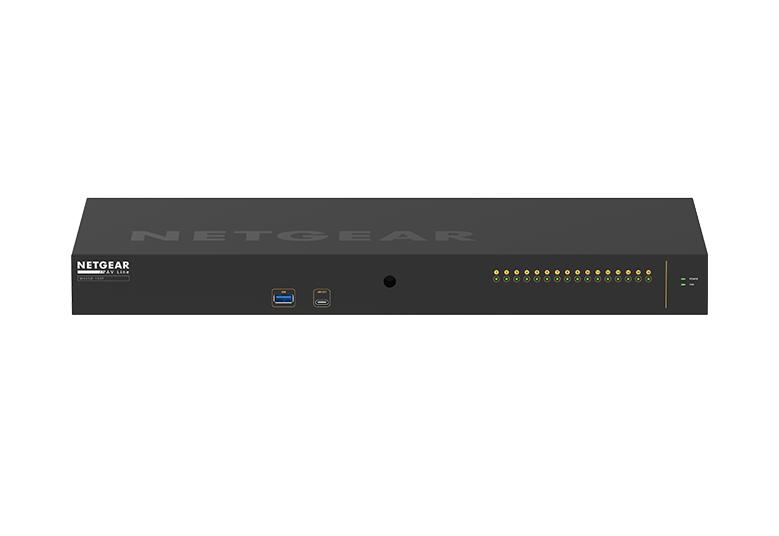

Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.
PRO AV FAMILY COMPARISON
USE CASE
SWITCH STACKING
PoE CAPABLE
PORT SPEEDS
AVB SUPPORT
AV WEB UI / AV TEMPLATES
AV DESIGN
(FRONT LED'S & REAR CABLING)
Product Specifications

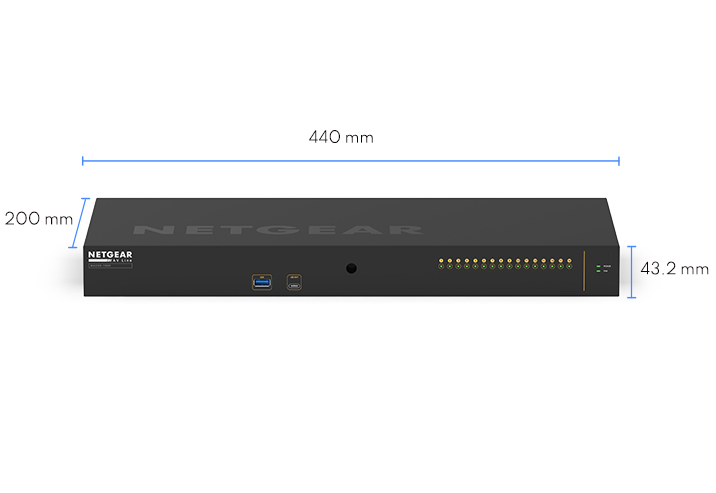

| Dimensions (WxDxH) | 440 x 200 x 43.2mm |
| Weight | 2.80Kg (6.17lb) |
| Primary Port Speed | 1 Gigabit |
| Number of Ports | 16 (1G/10G Fiber SFP+) |
| PoE Ports / Budget | None |
| IGMP Support | Enhanced (NETGEAR IGMP Plus™) |
| Jumbo Frame Support | Yes, up to 12kb |
| Acoustics | Fanless or 56.7dB@25ºC |
| Power Consumption | System Full Load: 47.84W/163.33Btu/hr; Standby without any port connection: 19.269W/65.78Btu/hr |
| AVB Support | Yes. Electronic license required, activation key sent via email (AVB4216F-10000S) |
Warranty : | This product is backed by NETGEAR limited lifetime hardware warranty. |
| Click here for coverage, availability and terms and conditions. |
Support : | NETGEAR Support offers a customizable support experience based on your operational needs: |
| Sprint support option with 24/5 Technical Support (phone, online) and Advance RMA Replacement |
| Overdrive support option with 24/7 Technical Support (phone, online, 2h SLA) and Next Business Day RMA Replacement |
| Support coverage in one, three, or five year contracts |

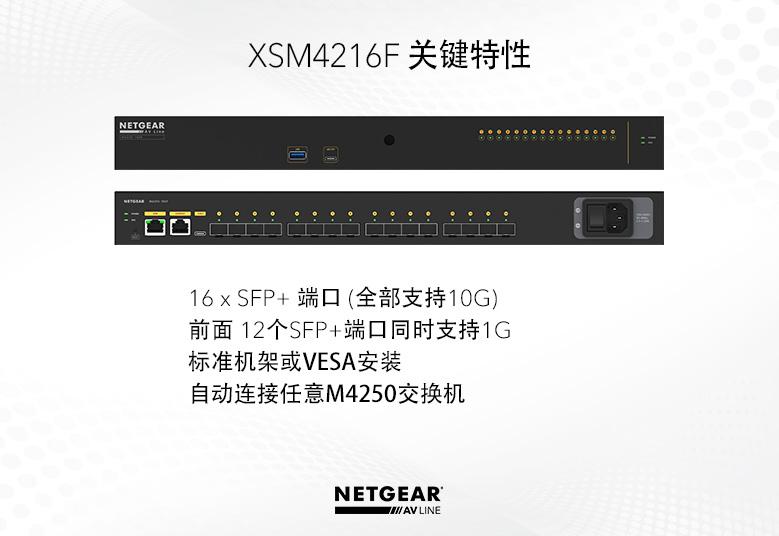

| What's in the Box | M4250-16XF (XSM4216F) |
| | Power cord(s) |
| | Console USB Type-C and RJ45-DB9 cables |
| | Rack-mounting standard brackets |
| | Longer brackets for recessed mounting |
| | Rubber footpads for tabletop installation |
| | Installation guide |
 | |
| |
|
