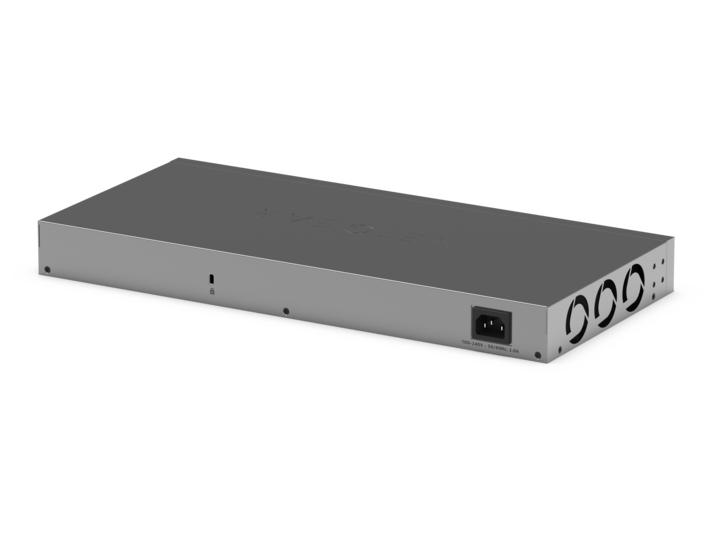

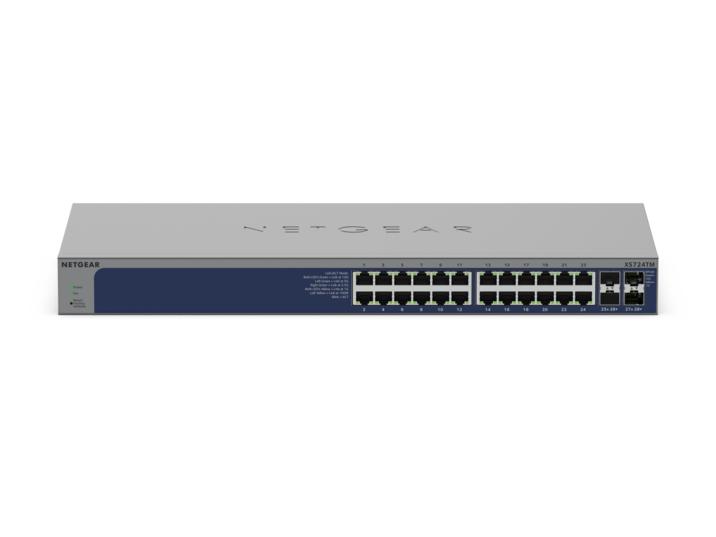

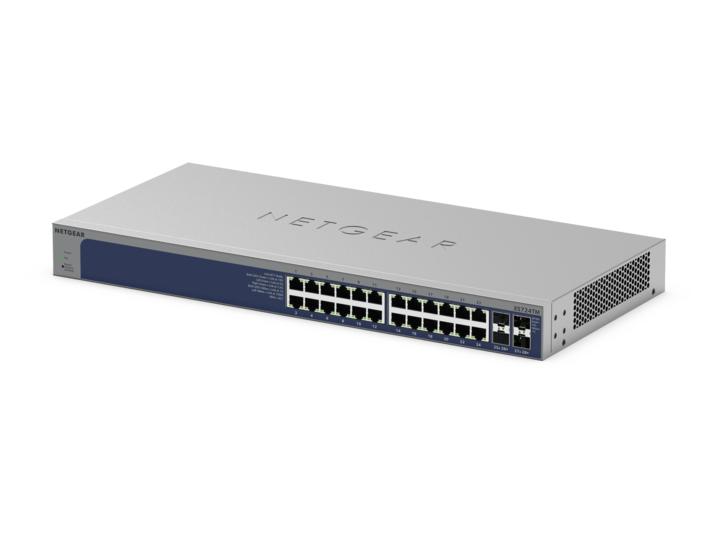

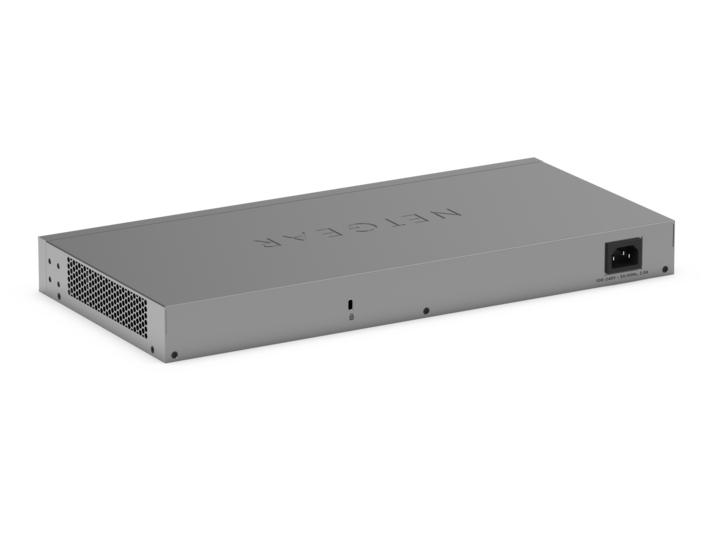

24 端口 10G/多千兆以太网智能交换机，带 4 个 10G SFP+ 端口

24 个 10G/多千兆端口，带 4 个专用 SFP+ 端口 节能以太网，实现最大节能效果 安静的桌面或机架式安装 可配置 L2+/Lite L3 网络功能 包含 1 年 NETGEAR Insight 云管理
24 端口 10G/多千兆以太网智能交换机，带 4 个 10G SFP+ 端口

1 / 5

24 个 10G/多千兆端口，带 4 个专用 SFP+ 端口 节能以太网，实现最大节能效果 安静的桌面或机架式安装 可配置 L2+/Lite L3 网络功能 包含 1 年 NETGEAR Insight 云管理
查找零售商
TNS_banner-desktop_new

整体网络解决方案助您充分发挥网络效能

从单一管理平台轻松部署、管理和监控 NETGEAR Insight 网管路由器、交换机和接入点。

NG Insight PDP Swim Lane 1840x920

源于您的反馈。专为您的工作方式而设计。

NETGEAR Insight 10.0——更智能、更简便地部署、监控和管理您的网络。

了解更多

产品规格

NETGEAR XS724TM with Insight Cloud Management​
Power cord (varies by region)​
Rackmount kit​
Installation guide​
Width440 mm (17.3 in)
Depth204 mm (8.03 in)
Height43.2 mm (1.7 in)
Weight3.38 kg (7.45 lb)
10G/Multi-Gigabit ports24
10G SFP+ ports4
Max MAC entries16K
Buffer size4 MB
VLAN (Number Supported)512
VLAN routingYes
Dynamic VLAN assignmentYes
MLD SnoopingYes
Static routeYes
Host ARP table1024
EEEYes
DoS PreventionYes
Internal/External Power Supply/AdapterInternal Power Supply
Max consumption (Watts)92.5 W
FAN3
Acoustic Noise Level @25C (dBA)29.61 dBA
Operating Temperature0° to 50° C
MTBF408,354.7 hours (46.6 years)
NETGEAR Insight Remote Cloud Management

NETGEAR Insight 是一个易于使用的解决方案，可通过任意设备上的单一管理平台，为小型企业所有者、IT 经理、MSP 和 VAR 提供跨多个位置的集中远程网络管理。
了解更多

Warranty :

This product is backed by NETGEAR limited lifetime hardware warranty.

​

Click here for coverage, availability and terms and conditions.

Support :

NETGEAR Support offers a customizable support experience based on your operational needs:


  • Sprint support option with 24/5 Technical Support (phone, online) and Advance RMA Replacement


  • Overdrive support option with 24/7 Technical Support (phone, online, 2h SLA) and Next Business Day RMA Replacement


Support coverage in one, three, or five year contracts​

Visit http://www.netgear.com/enterprise-support for more information.
