8端口多千兆(2.5 G)以太网Ultra 60 PoE++简易智能网管交换机
8端口多千兆(2.5 G)以太网Ultra 60 PoE++简易智能网管交换机
MS108EUP
1 / 4
端口
- 8 个端口
端口类型
- 8 x 1G/2.5G Ethernet RJ-45 copper ports (100M/1G/2.5G) - 1000 Base-T
- 4 x PoE+
- 4 x PoE++
PoE 预算
- 230 瓦
详细信息
MS108EUP
端口
- 8 个端口
端口类型
- 8 x 1G/2.5G Ethernet RJ-45 copper ports (100M/1G/2.5G) - 1000 Base-T
- 4 x PoE+
- 4 x PoE++
PoE 预算
- 230 瓦
详细信息
Simply Better Together
Combine your Multi-Gig switch with a WiFi Access Point to optimize your network for power and speed.
Features
RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

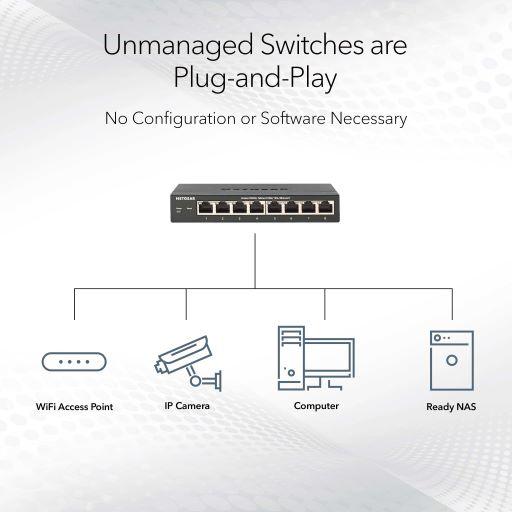

PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.
Technical Specifications
Dimensions (W x D x H) : | 158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in) |
Weight : | 0.48 kg (1.06 lb) |
Speed : | 100Mbps/1G/2.5G |
Number of Ports : | 8 |
Energy Efficient Ethernet Support (IEEE 802.3az) : | Yes |
Jumbo Frame Support : | 9,720 bytes |
Queue WRR Ratio : | 1:3:5:7:8:10:12:15 |
MAC Table Size : | 16K |
Packet buffer size : | 1 MB |
IEEE 802.1p QoS : | Yes |
Max Power Consumption : | 7.98W |
Operating Temperature : | 0-40°C (32°F - 104°F) |
MTBF (hours) : | 3,309,911 hrs (377.84 years) |
FCC Class : | Class B |
Fans : | 0 |
Acoustic Noise Level @25C : | Fanless |
Warranty : | This product is backed by NETGEAR limited lifetime hardware warranty. |
| | Click here for coverage, availability and terms and conditions. |
Support : | NETGEAR Support offers a customizable support experience based on your operational needs: |
| |
|
| |
|
| Support coverage in one, three, or five year contracts |
