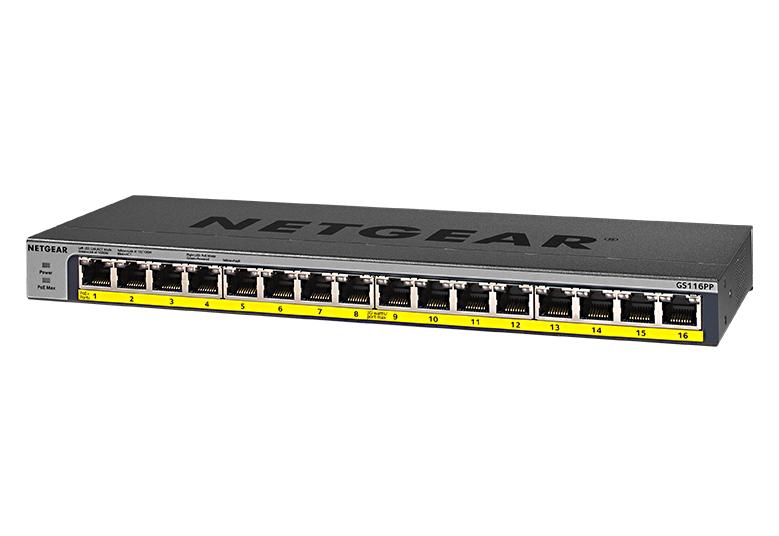

16-Port Gigabit Ethernet High-Power Unmanaged PoE+ Switch with FlexPoE (183W)
16-Port Gigabit Ethernet High-Power Unmanaged PoE+ Switch with FlexPoE (183W)
GS116PP
1 / 10
Ports
- 16 Ports
Port Types
- 16 x Gig Copper Ports
- 16 x 802.3af/802.3at Ports
PoE Budget
- 183W
Details
GS116PP
Ports
- 16 Ports
Port Types
- 16 x Gig Copper Ports
- 16 x 802.3af/802.3at Ports
PoE Budget
- 183W
Details
Features
PLUG AND PLAY
Simple setup with no software or configuration needed
POWER-OVER-ETHERNET
16 PoE+ ports with 183W total power budget, and includes NETGEAR FlexPoE allowing to reduce the power budget to 155W or even 76W (w/separately purchased power supply modules)
FLEXIBLE MOUNTING
Mount on rack, desktop, or wall
SMALL SIZE, METAL CASE AND SILENT OPERATION
Durable quality, space saver, and quietness for peace of mind
LIFETIME LIMITED WARRANTY & NEXT BUSINESS DAY REPLACEMENT
NETGEAR has your back to ensure your network is up and running
STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS
Can be placed on desk or on mounted rack and will operate quietly with assured durability
Choice of Fast Ethernet and Gigabit Ethernet connectivity
Energy-efficient technology for power savings
PoE power auto-balance - the switch automatically balances the PoE power based on the device needs independent of PoE class detected, at a very granular level
Auto-MDI/MDIX eliminates the need for crossover cables
Non-blocking switching architecture for maximum throughput at wire speed
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
Desktop or rack mountable
Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other PoE-powered devices
These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE power
Built-in PoE power selector switch that allow for optional / interchangeable power adapters* (sold separately) that can be used to increase (or decrease) the PoE power available on the switch
The flexible mounting system gives you the flexibility to place them in a desktop environment, wall mount them, or even rack-mount (accessories included)
Technical Specifications
Dimensions (W x D x H) | 286 x 102 x 27 mm |
Weight | 0.88kg |
Model Description | GS116PP 16-port PoE+ Gigabit Ethernet Unmanaged switch with 183W total power budget |
Speed | Gigabit |
Number of Ports | 16 |
Number of PoE+ Ports | 16 PoE+ ports, up to 30W per port |
PoE Budget | 183W |
Energy Efficient Ethernet Support (IEEE 802.3az) | Yes |
Jumbo frame support | Yes |
MAC Table Size | 4K |
Packet buffer size | 1MB |
IEEE 802.1p QoS | Yes |
Max Power Consumption | 200W |
Fans | 0 |
Operating Temperature | 0° to 40°C (32° to 104°F) |
MTBF (hours) | 2,362,192 hours |
FCC Class | Class A |
