10G/Multi-Gigabit Dual WAN Pro Router with Insight Cloud Management
10G/Multi-Gigabit Dual WAN Pro Router with Insight Cloud Management

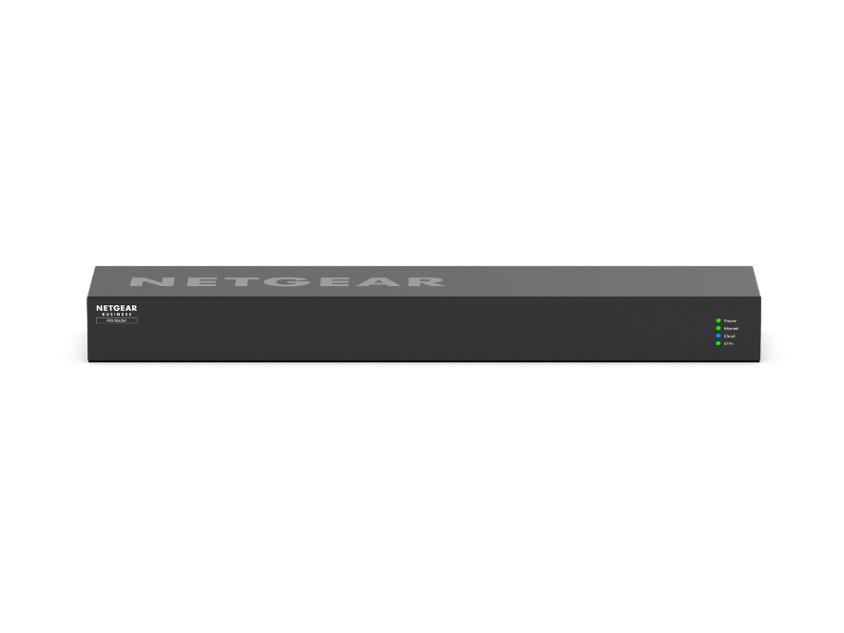

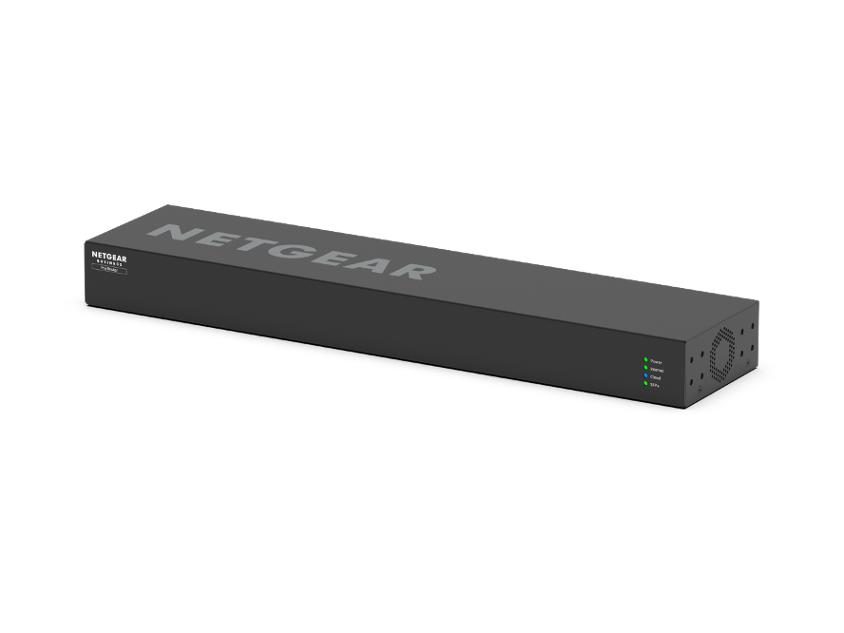

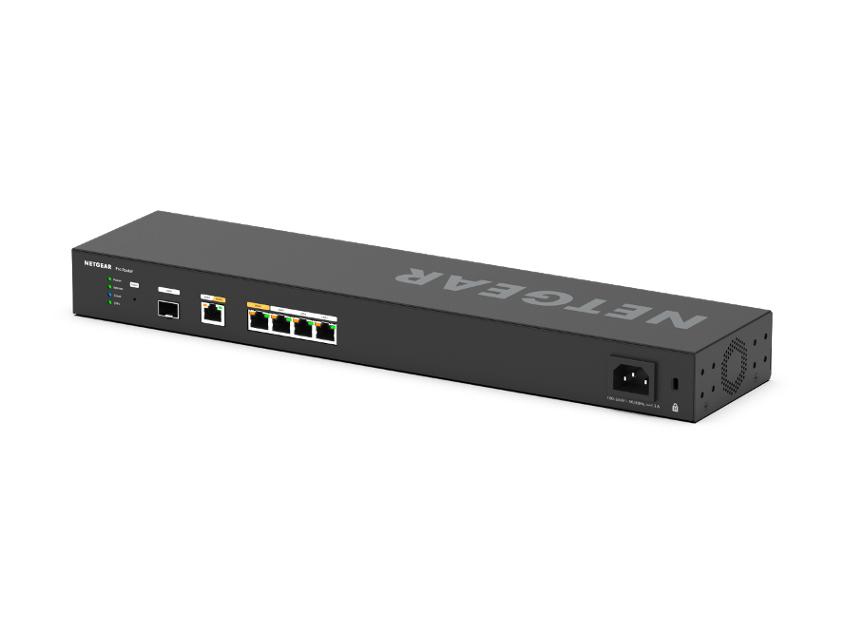

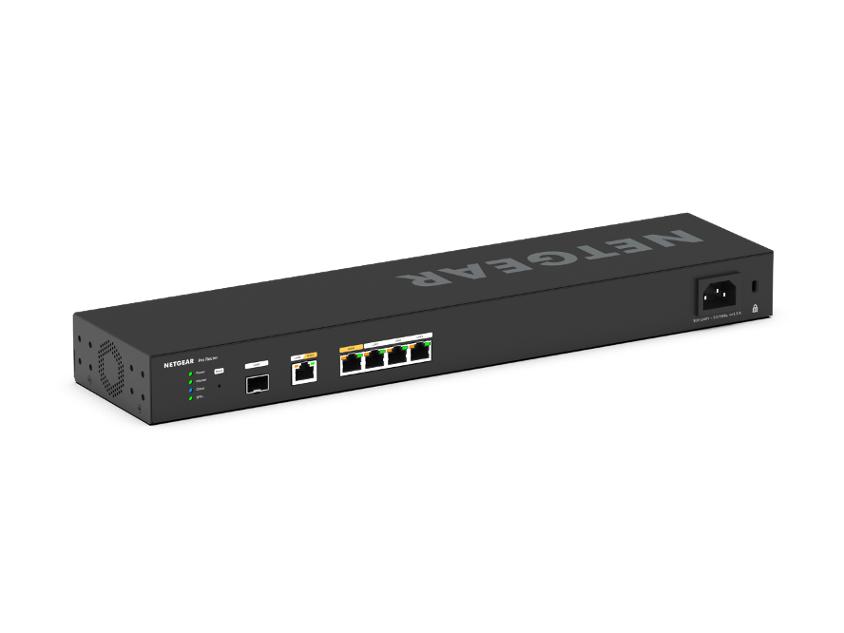

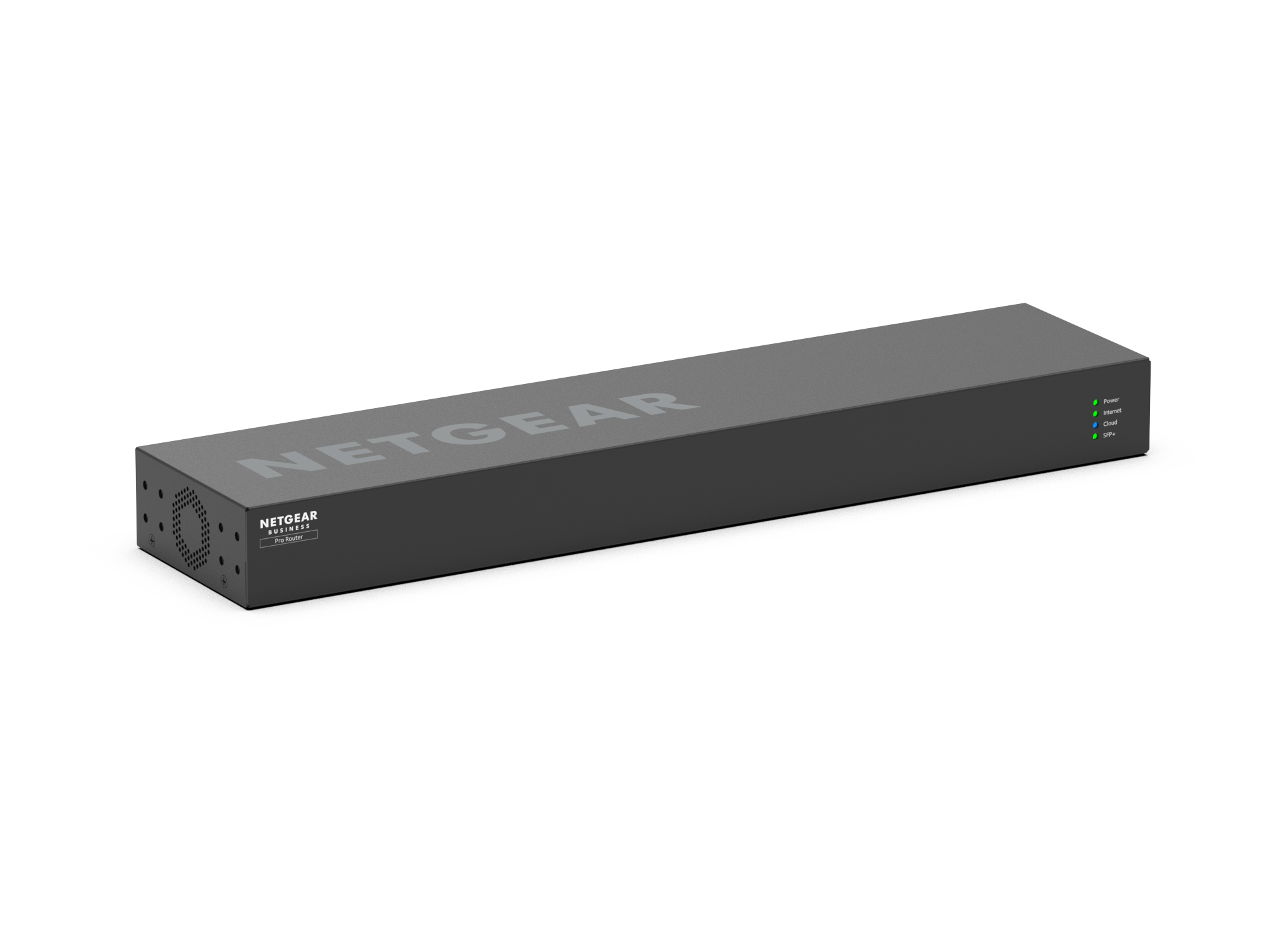

PR60X
1 / 7
Ports
- 6 Ports
Port Types
- 1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN)
- 1 x 2.5G/1G RJ-45 (WAN)
- 3 x 2.5G/1G RJ-45 (LAN)
- 1 x 10G/1G SFP+ (LAN)
Details

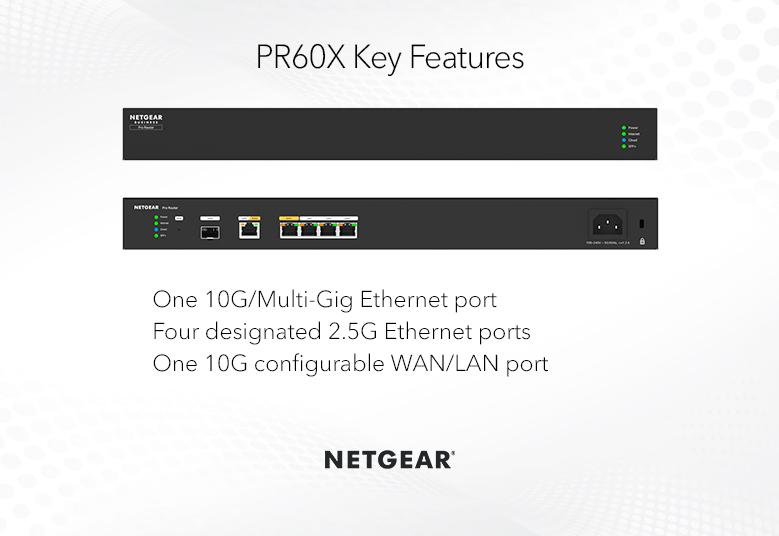

- 10G/Multi-Gigabit and 2.5G Dual WAN ports with failover
- High-performance hardware with one 10G/Multi-Gig Ethernet port, four 2.5G Ethernet ports and one 10G SFP+ port for long-distance backhaul.
- Seamless integration with NETGEAR Pro WiFi Access Points and select Smart switches through NETGEAR Insight Cloud Management
- Control, manage and monitor through NETGEAR Insight

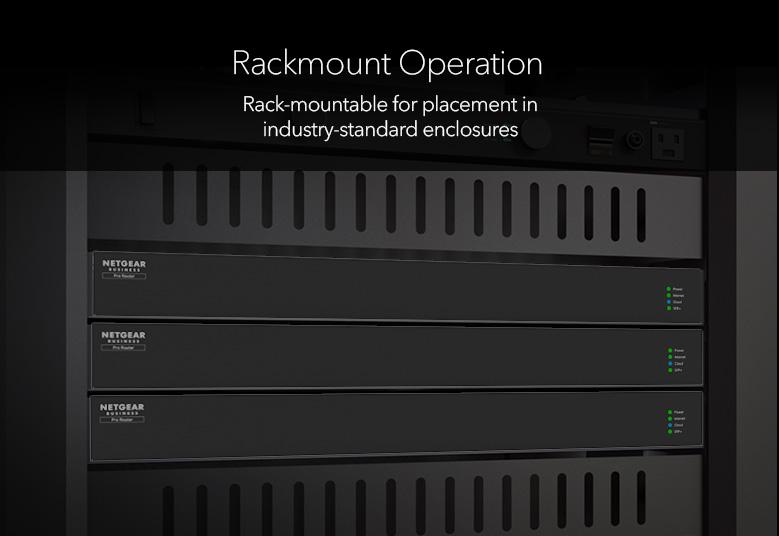

- Rack-mountable for placement in industry-standard enclosures
- Firewall protection
- IPSec configuration to create secure site-to-site VPN connections
- Add advanced threat prevention, web and DNS security with a simple license add-on.
- Turn your PR60X into a comprehensive security gateway with no separate hardware required.
PR60X
Ports
- 6 Ports
Port Types
- 1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN)
- 1 x 2.5G/1G RJ-45 (WAN)
- 3 x 2.5G/1G RJ-45 (LAN)
- 1 x 10G/1G SFP+ (LAN)
Details
- 10G/Multi-Gigabit and 2.5G Dual WAN ports with failover
- High-performance hardware with one 10G/Multi-Gig Ethernet port, four 2.5G Ethernet ports and one 10G SFP+ port for long-distance backhaul.
- Seamless integration with NETGEAR Pro WiFi Access Points and select Smart switches through NETGEAR Insight Cloud Management
- Control, manage and monitor through NETGEAR Insight
- Rack-mountable for placement in industry-standard enclosures
- Firewall protection
- IPSec configuration to create secure site-to-site VPN connections
- Add advanced threat prevention, web and DNS security with a simple license add-on.
- Turn your PR60X into a comprehensive security gateway with no separate hardware required.
Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
NETGEAR INSIGHT REMOTE MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.

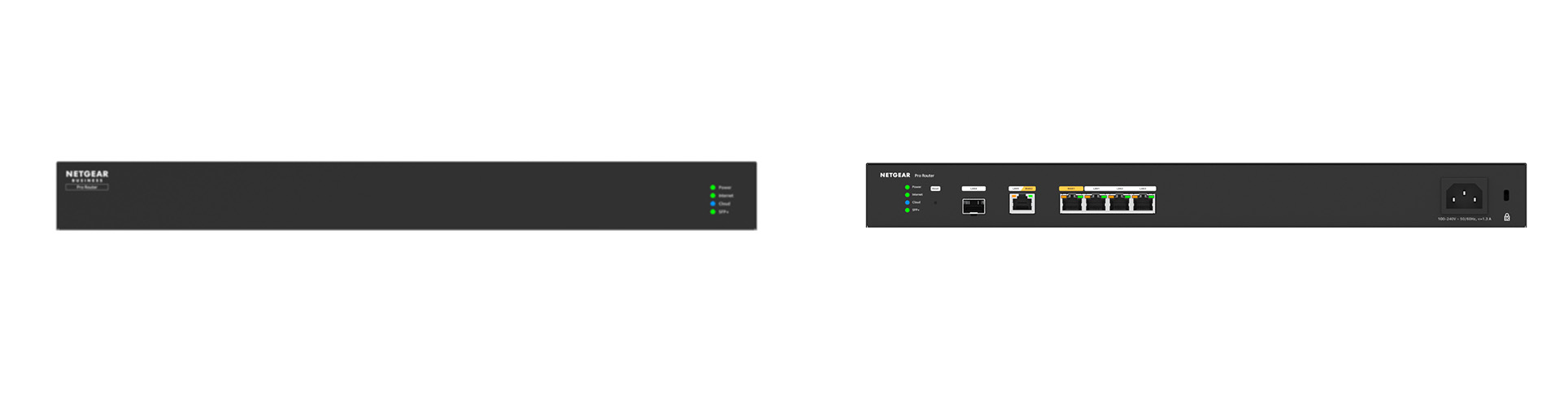

Technical Specifications
| NETGEAR PR60X 10G/Multi-Gigabit Dual WAN Pro Router with Insight Cloud Management | |
| Rack-mount kit | |
| Rubber feet (for Desktop deployment) | |
| Power cord(s) (varies by region) | |
| Ethernet cable | |
| Installation guide | |
| Width | 440mm |
| Depth | 100mm |
| Height | 43.2mm |
| Weight | 3.34lb (1.513kg) |
| Hardware | Quad Core ARM A73 @ 2.2 GHz, 2GB DDR4, Flash Memory 4GB eMMC |
| Connectivity | 1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN) 1 x 2.5G/1G RJ-45 (WAN) 3 x 2.5G/1G RJ-45 (LAN) 1 x 10G/1G SFP+ (LAN) |
| Performance | LAN-WAN Throughput: 2.4Gbps for 2.5G WAN port. 9.4Gbps for 10G WAN port WAN-LAN Throughput: 10Gbps max WAN with 17.5Gbps max LAN, when using WAN2 port. 2.5Gbps max WAN with 27.5Gbps max LAN, when using WAN1 port only |
| LAN/VLAN | Maximum Number of VLANs is 8 DHCP Server (limit is 32) 802.1Q VLAN |
| Security | Firewall Traffic Rules/Scheduling, Port Forwarding, Port Triggering, Stateful Packet Inspection (SPI), Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood, Respond To Ping on Internet Port |
| VoIP SIP ALG | Yes |
| Networking | ISP Address Assignment DHCP, Static IP Assignment, PPPoE, NAT, Static Routing, Routing Protocol (RIPv1, RIPv2), MAC Address Cloning/spoofing, NTP Support, UPnP, Auto Uplink on Switch Ports |
| VPN | IPSec Site-to-Site |
| Encryption/Authentication | 3DES, AES (128, 192, 256 bit)/SHA-1, SHA-2 (256bit), MD5 |
| Key Exchange | IKEv1, IKEv2, Pre-shared Key |
| Management Options | Insight Remote Cloud Management Web GUI |
| Logging | Accepted Packets, Dropped Packets Statistics, System, Source MAC filter, Session Limit, Bandwidth Limit, Ipsec VPN, Log Delivery Insight logging, Diagnostics Ping, DNS Lookup, Trace Route, Speed test, Maintenance Save/restore Configuration, Restore to Factory Defaults, Firmware Upgrades, Display and monitor Statistics |
| Major Regulatory Compliance Environment | RoHS |
| Safety | CE/LVD, CSA |
| EMI | FCC Part 15 Class B, CE mark |
| Operating Temperature | 0° to 40°C (32° to 104° F) |
| Storage Temperature | -20° to 70° C (-4° to 158° F) |
| Humidity | Operating humidity 90% maximum relative humidity, non-condensing, Storage humidity 95% maximum relative humidity, non-condensing |
| Power | AC 100-240V, 50/60Hz, 1.3A Electrical Specifications Power adapter input localized to regions |
| NETGEAR Insight Remote Cloud Management | NETGEAR Insight is the easy-to-use solution for delivering centralized remote management of networks across multiple locations for small business owners, IT managers, MSPs and VARs all from a single pane-of-glass on any device. |
| This product is backed by NETGEAR limited lifetime hardware warranty. |
| Click here for coverage, availability and terms and conditions. |
NETGEAR Support offers a customizable support experience based on your operational needs: Sprint support option with 24/5 Technical Support (phone, online) and Advance RMA Replacement Overdrive support option with 24/7 Technical Support (phone, online, 2h SLA) and Next Business Day RMA Replacement Visit http://www.netgear.com/enterprise-support for more information. | |
