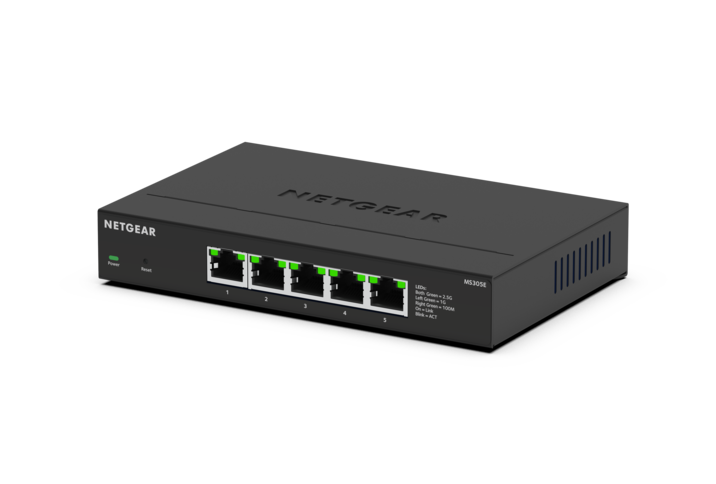

5-port Multi-Gigabit (2.5G) Ethernet Easy Smart Managed Essentials Switch
5-port Multi-Gigabit (2.5G) Ethernet Easy Smart Managed Essentials Switch
Simply Better Together
Combine your WiFi Access Points with a Multi-Gig Switch to optimize your network for power and speed.
Features
MULTI-GIGABIT ETHERNET
5 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each
NON-BLOCKING SWITCHING
25Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Technical Specifications
Dimensions (W x D x H) : | 158 x 101 x 27 mm (6.2 x 4 x 1.1 in) |
Weight : | 0.45kg (1lb) |
Speed : | 100Mbps/1G/2.5G |
Number of Ports : | 5 |
Energy Efficient Ethernet Support (IEEE 802.3az) : | Yes |
Jumbo Frame Support : | 12,288 bytes |
MAC Table Size : | 4K |
Packet buffer size : | 1 MB |
IEEE 802.1p QoS : | Yes |
Max Power Consumption : | 5.6W |
Operating Temperature : | 0-40°C (32°F - 104°F) |
MTBF (hours) : | 4,273,003 hrs |
FCC Class : | Class B |
Warranty | This product is backed by NETGEAR limited lifetime hardware warranty. |
Click here for coverage, availability and terms and conditions. | |
Support | NETGEAR Support offers a customizable support experience based on your operational needs: |
|
|
|
|
| Support coverage in one, three, or five year contracts |
