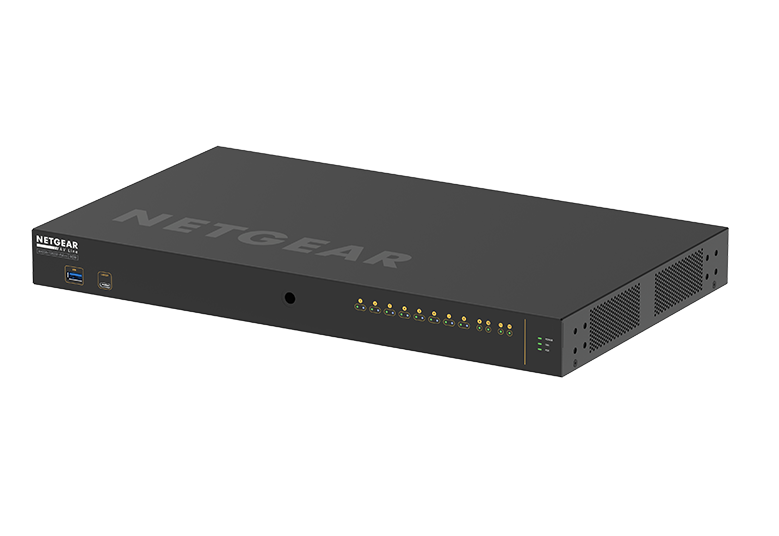

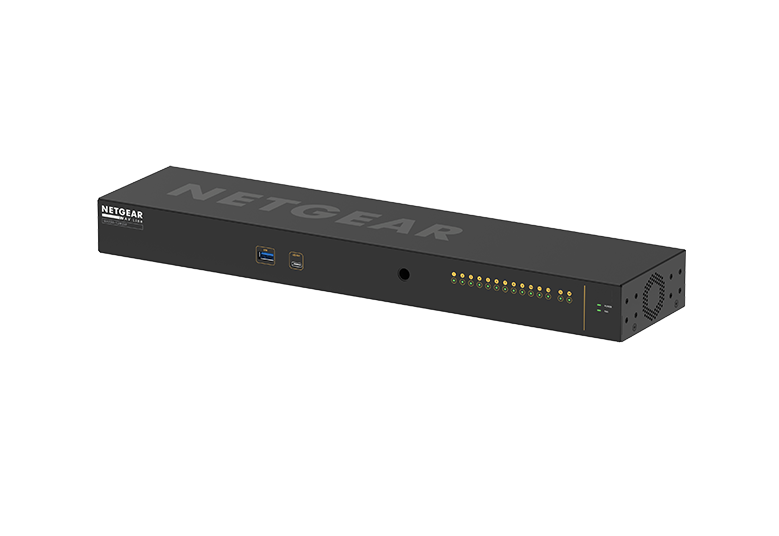

8x1G Ultra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality! M4250 Datasheet
8x1G Ultra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch
8x1G Ultra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch
8x1G Ultra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch
8x1G Ultra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch

1 / 4

8x1G Ultra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch
8x1G Ultra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch
8x1G Ultra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch
8x1G Ultra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch
Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality! M4250 Datasheet
Find a Retailer

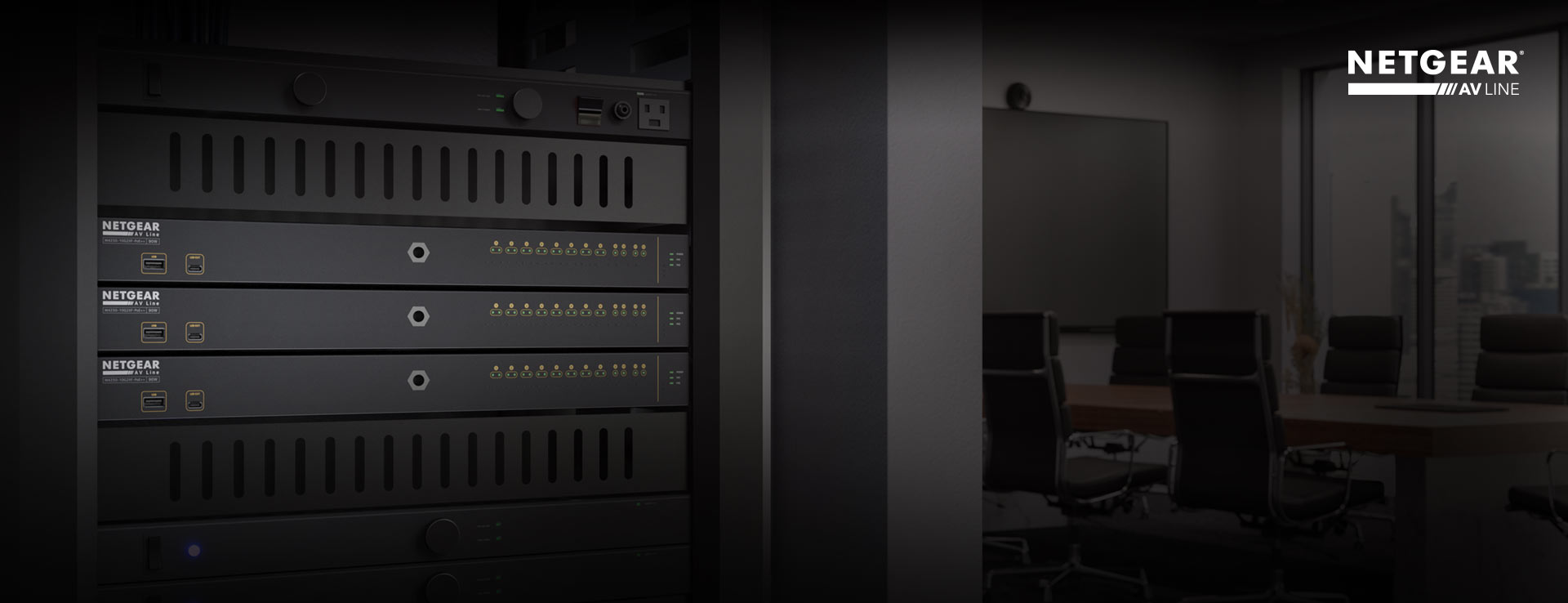

m4250 proav powerful av switches tcm148 140003


POWERFUL AV SWITCHES
MADE SIMPLE

Pre-configured to get you up and running faster

m4250 pro av dt 3 tcm148 139379

FAST, EASY
CONFIGURATION
FOR AV PROS

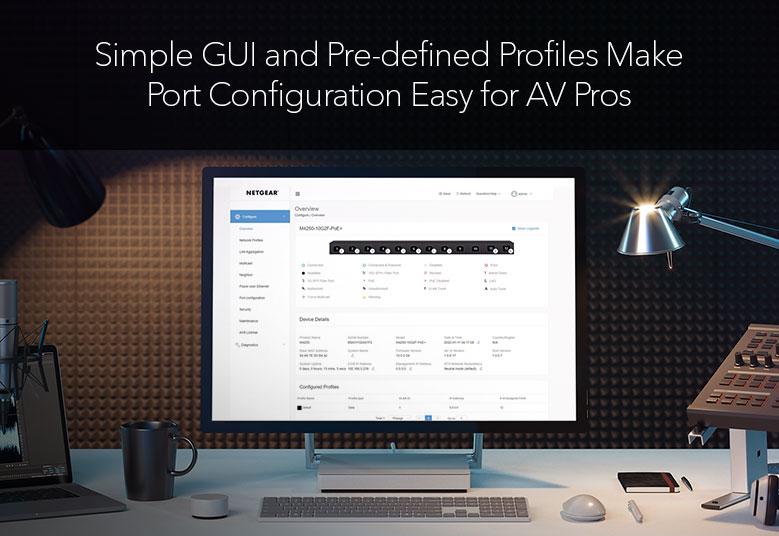

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

m4250-pro-av-dt-4

FOCUS ON THE EVENT
NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

m4250-right-out-of-the-box

DESIGNED FOR AV OVER IP
RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

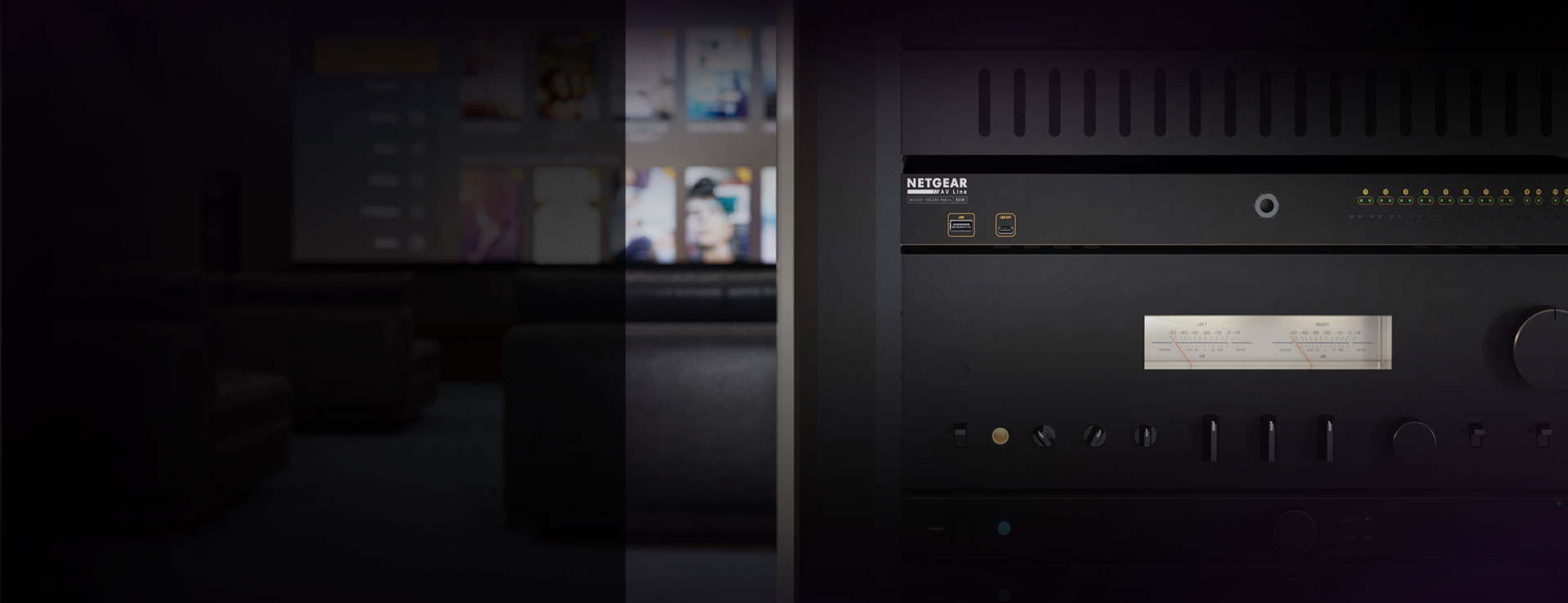

m4250 pro av 6 tcm148 139921

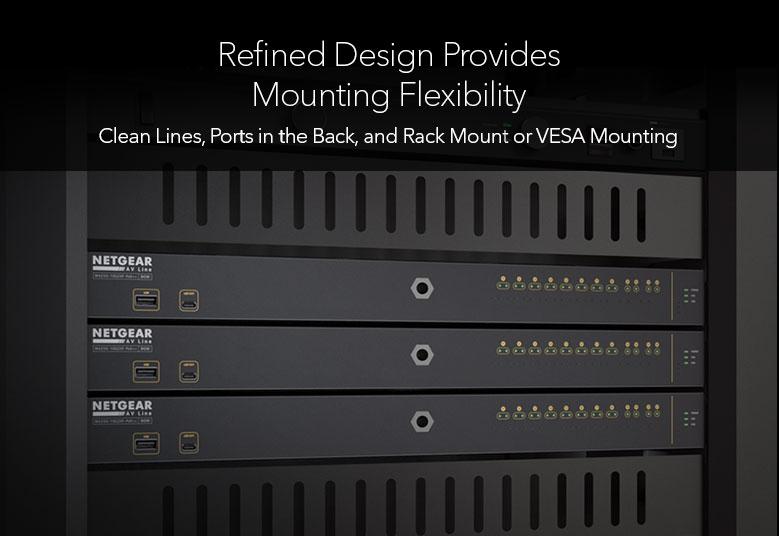

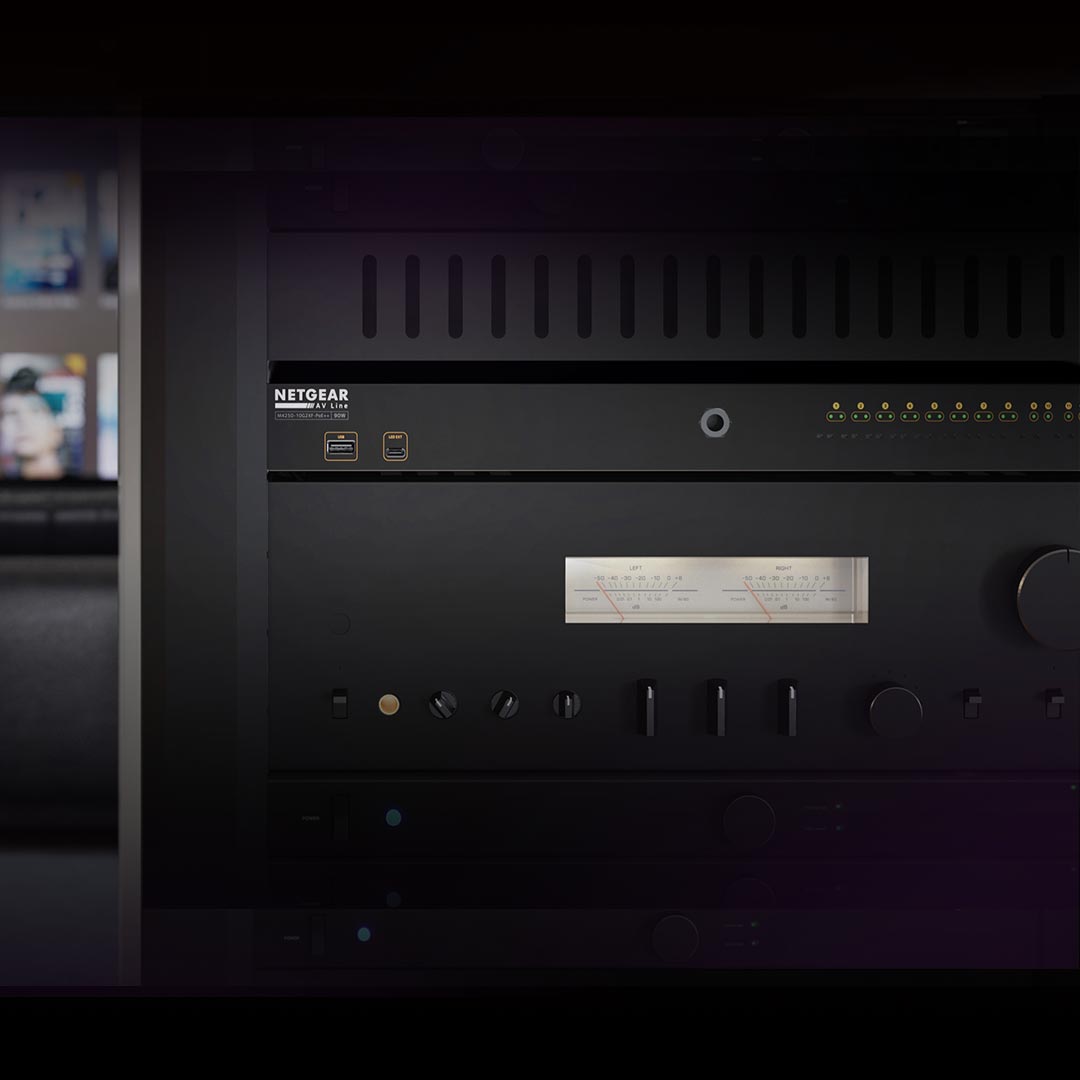

REFINED DESIGN
PROVIDES MOUNTING FLEXIBILITY

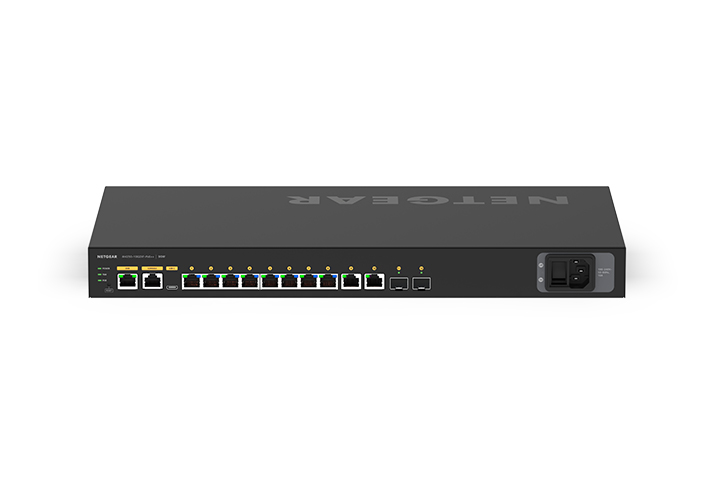

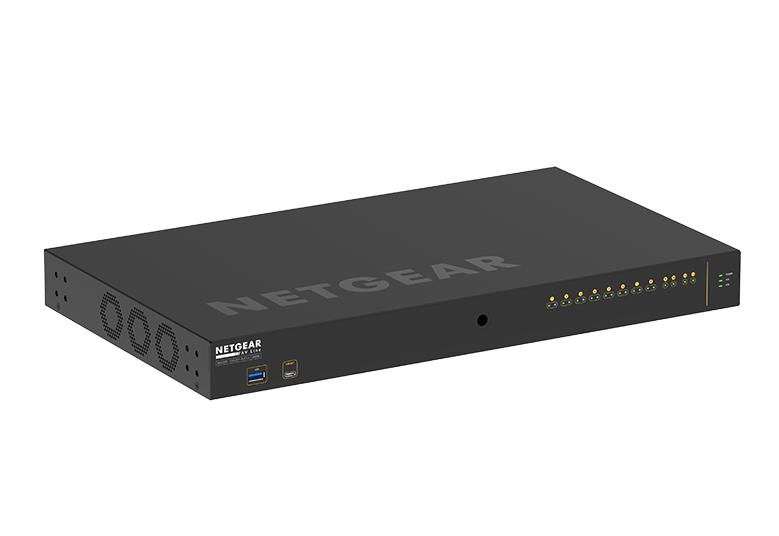

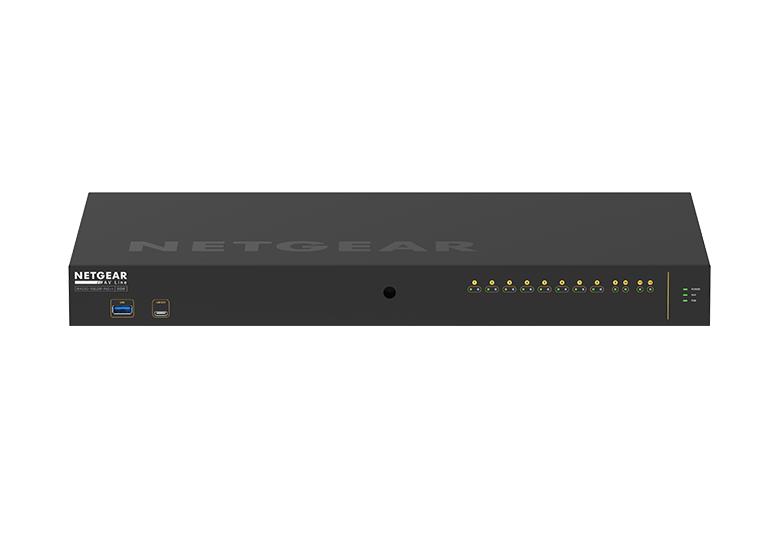

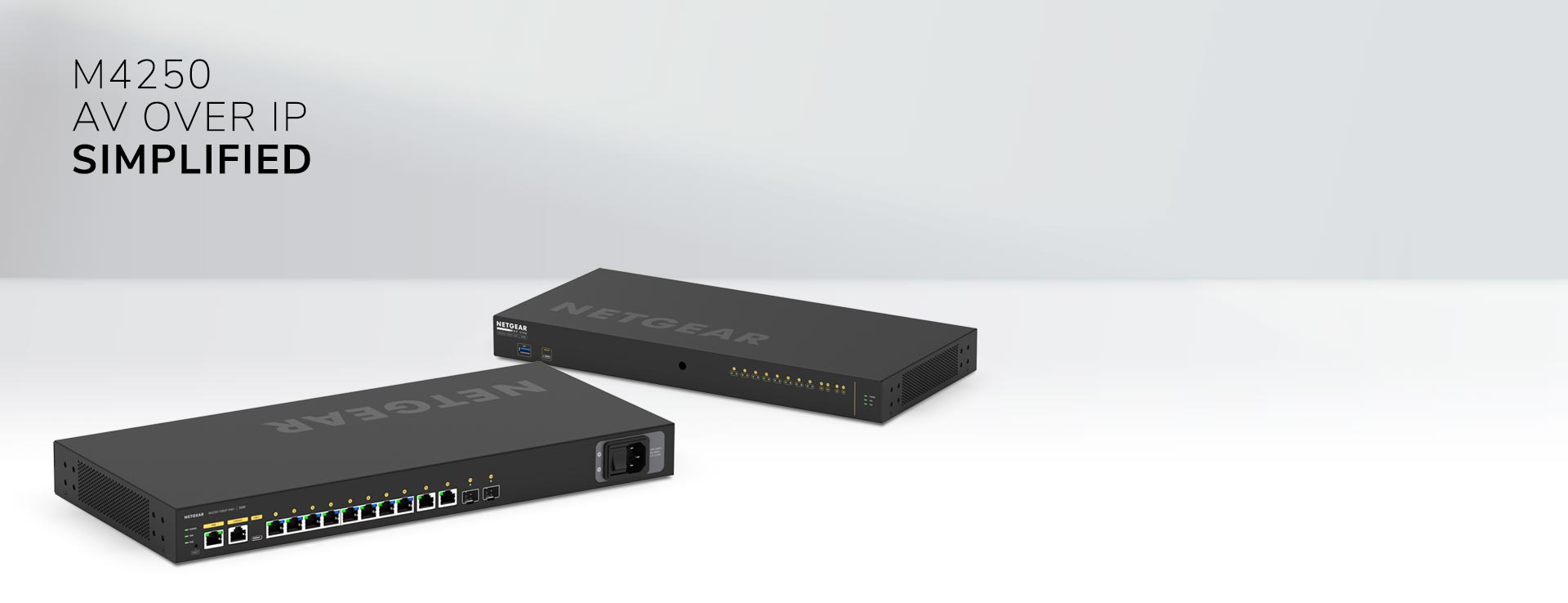

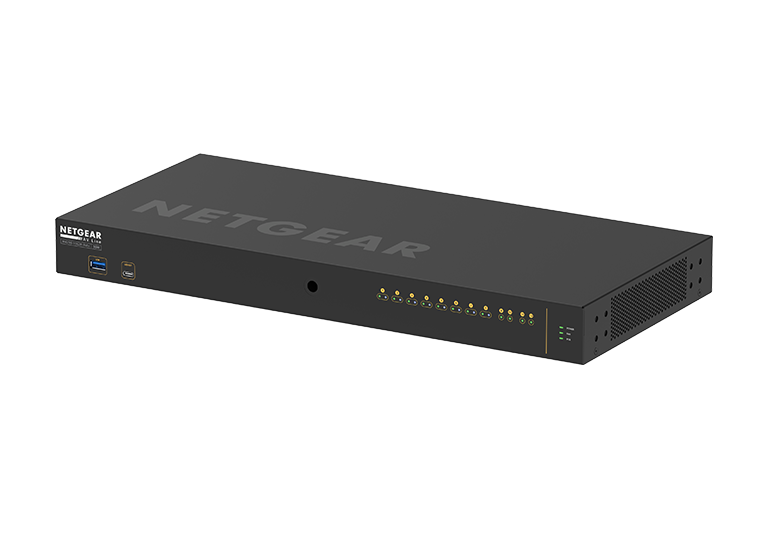

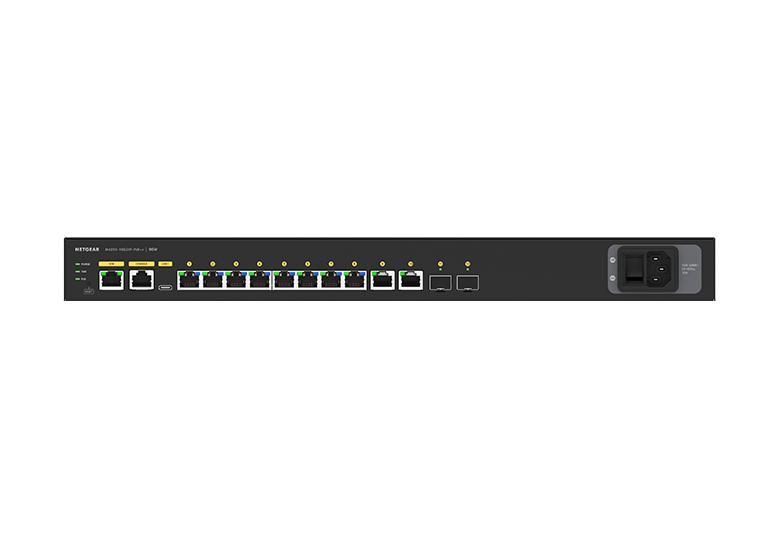

Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.

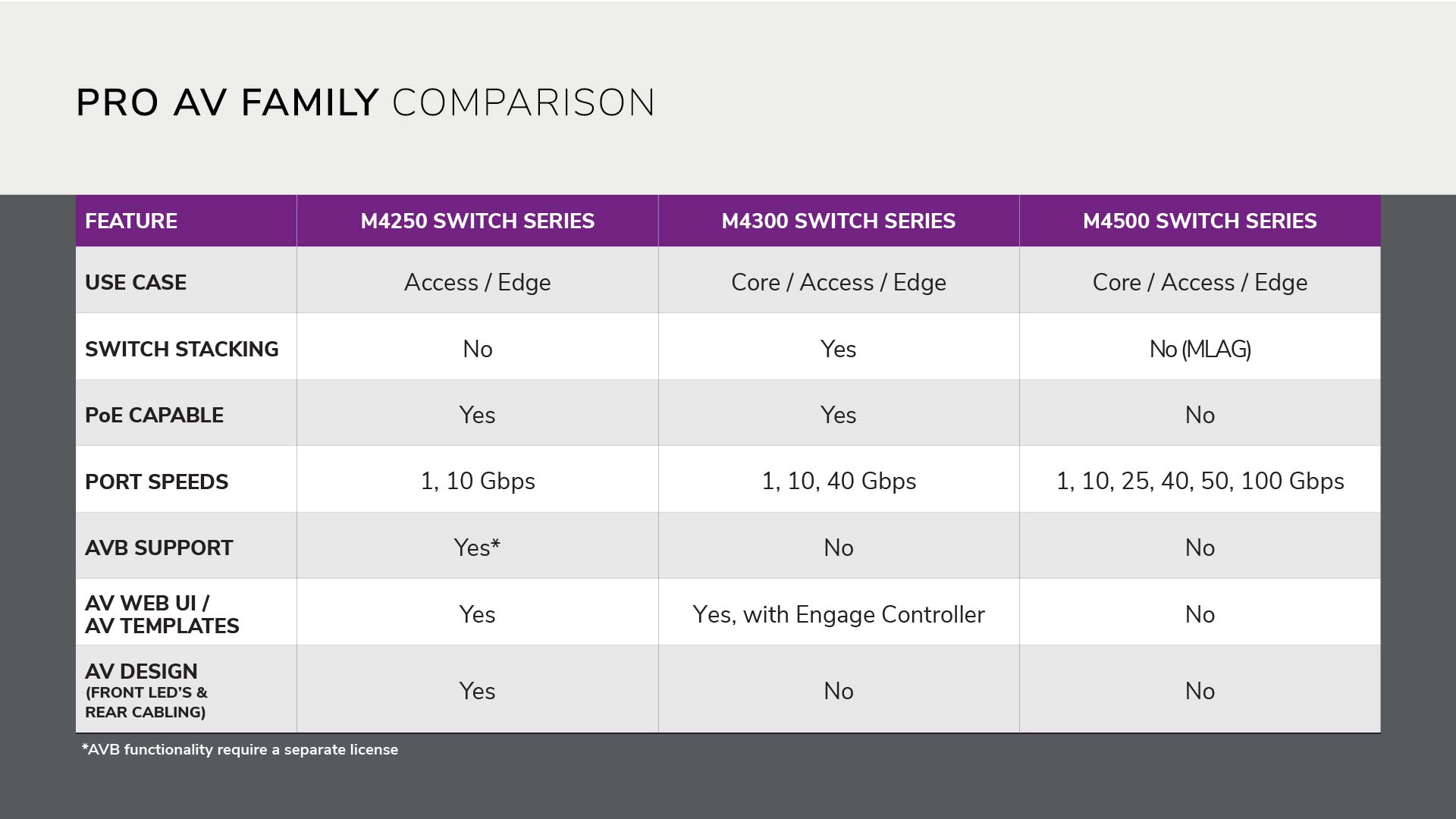

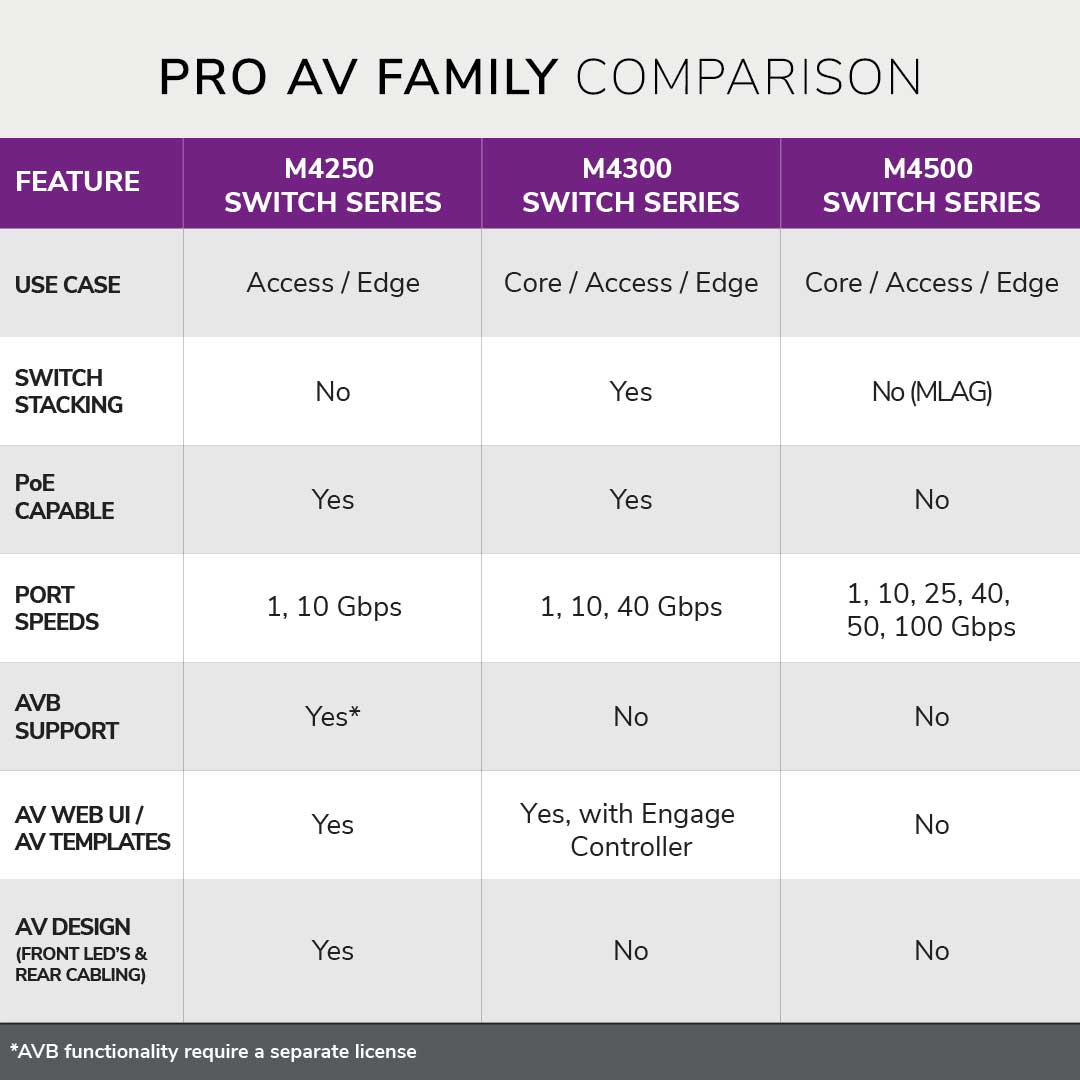

PRO AV FAMILY COMPARISON

USE CASE

SWITCH STACKING

PoE CAPABLE

PORT SPEEDS

AVB SUPPORT

AV WEB UI / AV TEMPLATES

AV DESIGN
(FRONT LED'S & REAR CABLING)

M4250 SWITCH SERIES

Access/Edge

No

Yes

1, 2.5, 10Gbps

Yes*

Yes

Yes

M4350 SWITCH SERIES

Core/Access/Edge

Yes

Yes

1, 2.5, 10, 25, 100Gbps

Yes

Yes

No

M4500 SWITCH SERIES

Core/Access/Edge

No (MLAG)

No

1, 10, 25, 100Gbps

No

No

No

Product Specifications

Dimensions (WxDxH):

440 x 200 x 43.2mm

Weight:

3.83Kg (8.44lb)

Primary Port Speed:

1 Gigabit

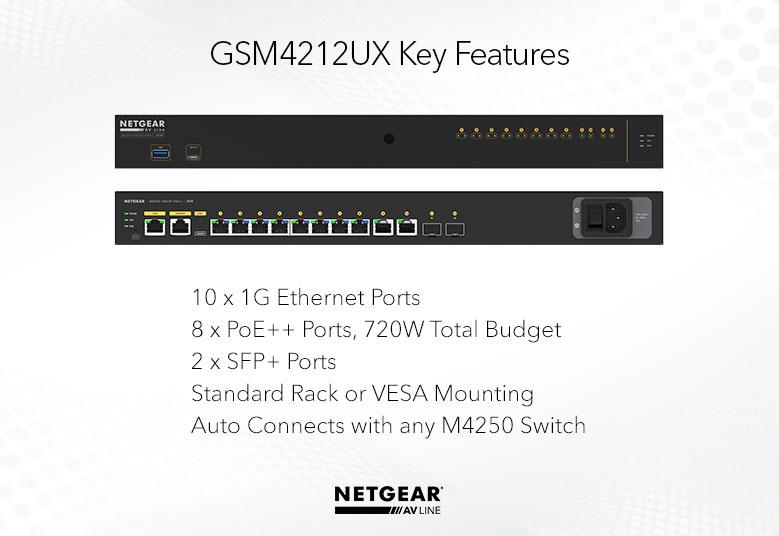

Number of Ports:

12 (10x 1G, 2x SFP+)

PoE Ports / Budget:

8 PoE++ (90W/port), 720W Budget

IGMP Support:

Enhanced (NETGEAR IGMP Plus™)

Jumbo Frame Support:

Yes, up to 12kb

Acoustics:

Fanless or 50.5dB@25ºC

Power Consumption:

With PoE: 837.7W/2859.91Btu/hr; Without PoE: 26.3W/89.79Btu/hr; Standby without any port connection: 18W/61.45Btu/hr

AVB Support:

Yes. Electronic license required, activation key sent via email (AVB4212UX-10000S)

Warranty :

This product is backed by NETGEAR limited lifetime hardware warranty.​

Click here for coverage, availability and terms and conditions.

Support :

NETGEAR Support offers a customizable support experience based on your operational needs:​

  • Sprint support option with 24/5 Technical Support (phone, online) and Advance RMA Replacement​

  • Overdrive support option with 24/7 Technical Support (phone, online, 2h SLA) and Next Business Day RMA Replacement​

Support coverage in one, three, or five year contracts​

Visit http://www.netgear.com/enterprise-support for more information.

What's in the Box:

M4250-10G2XF-PoE++ (GSM4212UX)

​

Power cord(s)

​

Console USB Type-C and RJ45-DB9 cables

​

Rack-mounting standard brackets

​

Longer brackets for recessed mounting

​

Rubber footpads for tabletop installation

​

Installation guide

High Resolution Images

Low Resolution Images
Installation GuideUser Manual Product Datasheet
