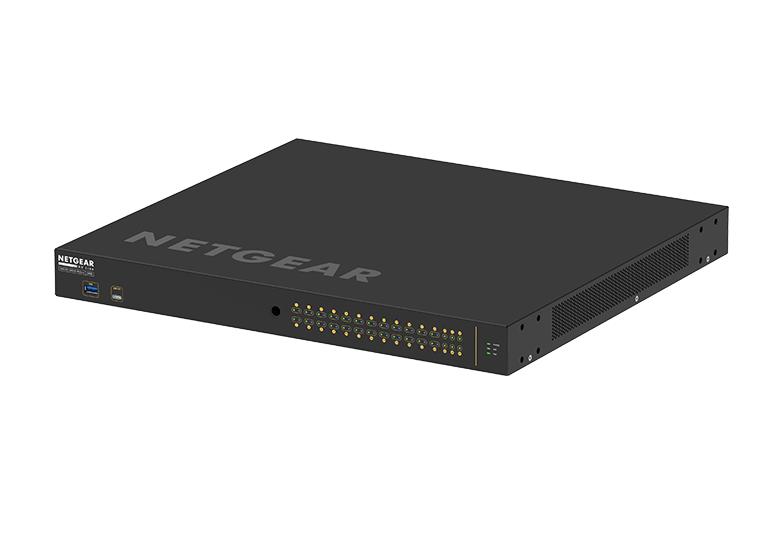

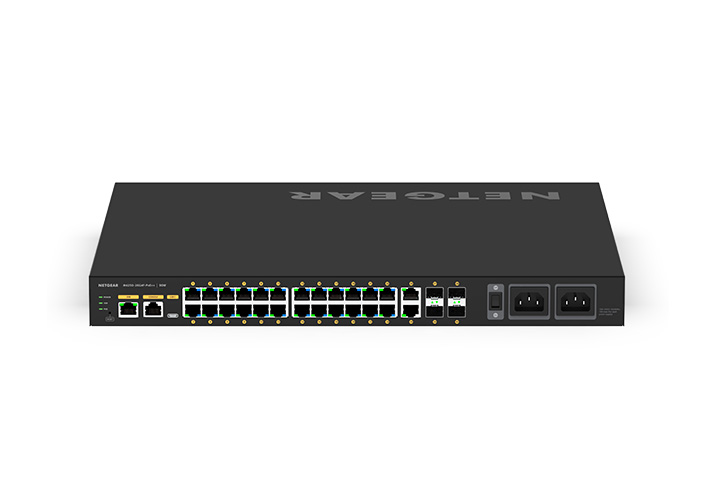

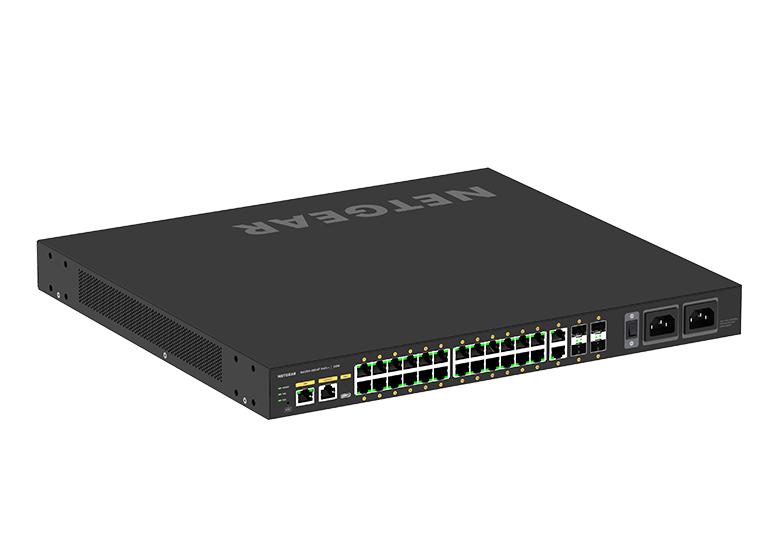

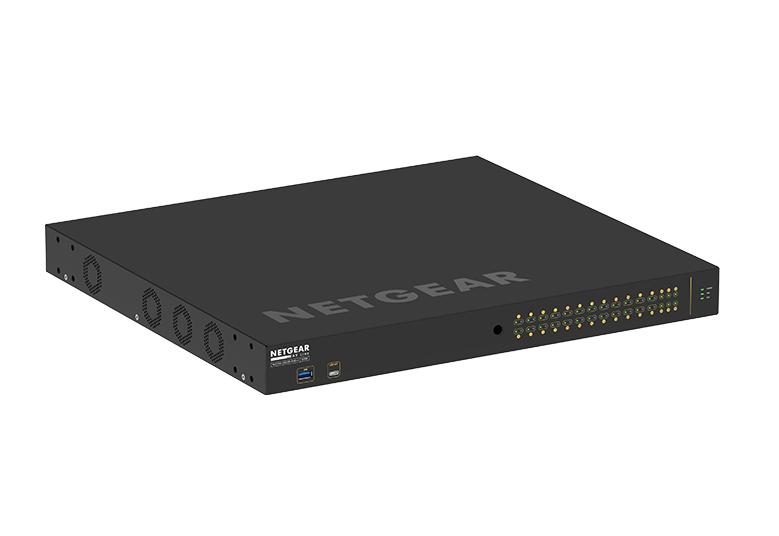

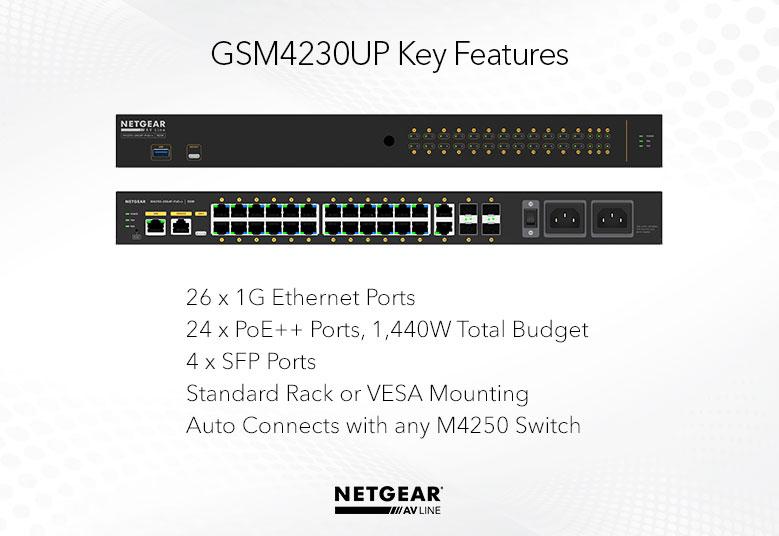

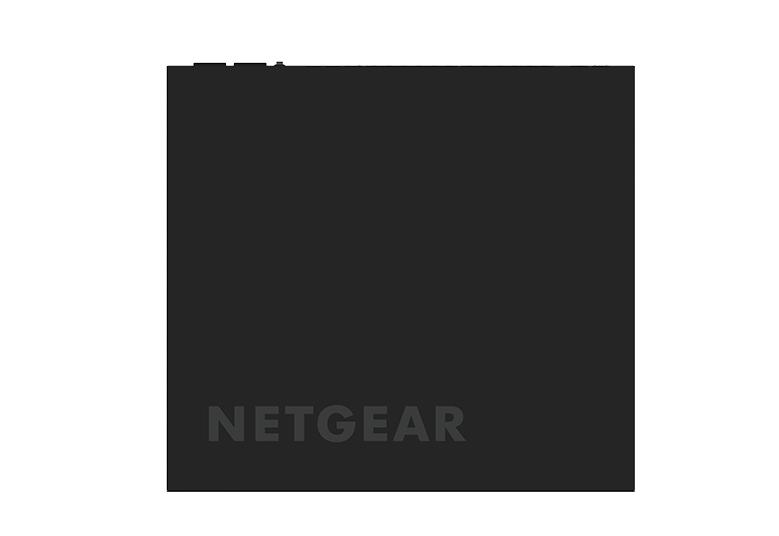

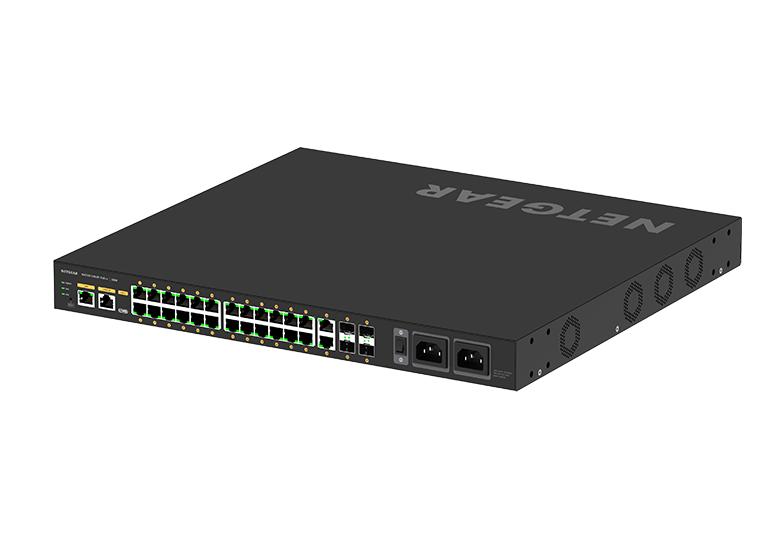

Managed Switch with PoE++ Ports and IGMP Support (GSM4230UP)
Managed Switch with PoE++ Ports and IGMP Support (GSM4230UP)
GSM4230UP
1 / 12
Ports
- 30 Ports
Port Types
- 24 x 1G PoE++
- 2 x 1G
- 4 x SFP
PoE Budget
- 24 PoE++ (90W/port)
- 1
- 440W Budget
Details
GSM4230UP
Ports
- 30 Ports
Port Types
- 24 x 1G PoE++
- 2 x 1G
- 4 x SFP
PoE Budget
- 24 PoE++ (90W/port)
- 1
- 440W Budget
Details
POWERFUL AV SWITCHES
MADE SIMPLE
Pre-configured to get you up and running faster
FAST, EASY
CONFIGURATION
FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP
RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
REFINED DESIGN
PROVIDES MOUNTING FLEXIBILITY
Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.
PRO AV FAMILY COMPARISON
USE CASE
SWITCH STACKING
PoE CAPABLE
PORT SPEEDS
AVB SUPPORT
AV WEB UI / AV TEMPLATES
AV DESIGN
(FRONT LED'S & REAR CABLING)
Product Specifications

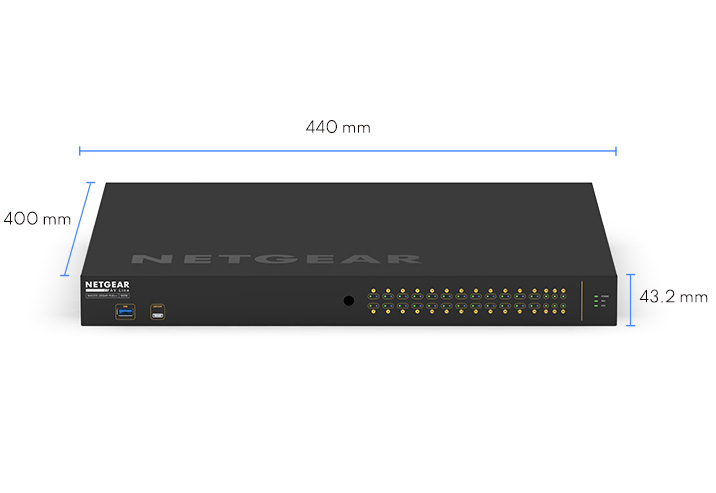

Dimensions (WxDxH): | 440 x 400 x 43.2 mm |
Weight: | 6.75Kg (14.87lb) |
Primary Port Speed: | 1 Gigabit |
Number of Ports: | 30 (24x 1G PoE++, 2x 1G, 4x SFP) |
PoE Ports / Budget: | 24 PoE++ (90W/port), 1,440W Budget |
IGMP Support: | Enhanced (NETGEAR IGMP Plus™) |
Jumbo Frame Support: | Yes, up to 12kb |
AVB Support: | Yes. Electronic license required, activation key sent via email (AVB4230UP-10000S). |
Acoustics: | Fanless or 60dB@25ºC |
Power Consumption: | Single AC With PoE: 889W/3035.05Btu/hr |
| | Dual AC With PoE: 1734W/5919.88Btu/hr |
| | Without PoE: 48.8W/166.6Btu/hr |
| | Standby without any port connection: 36.9W/125.98Btu/hr |
Warranty : | This product is backed by NETGEAR limited lifetime hardware warranty. |
| Click here for coverage, availability and terms and conditions. |
Support : | NETGEAR Support offers a customizable support experience based on your operational needs: |
| Sprint support option with 24/5 Technical Support (phone, online) and Advance RMA Replacement |
| Overdrive support option with 24/7 Technical Support (phone, online, 2h SLA) and Next Business Day RMA Replacement |
| Support coverage in one, three, or five year contracts |
| | M4250-26G4F-PoE++ (GSM4230UP) |
| | Power cord(s) |
| | Console USB Type-C and RJ45-DB9 cables |
| | Rack-mounting standard brackets |
| | Longer brackets for recessed mounting |
| | Rubber footpads for tabletop installation |
| | Installation guide |
