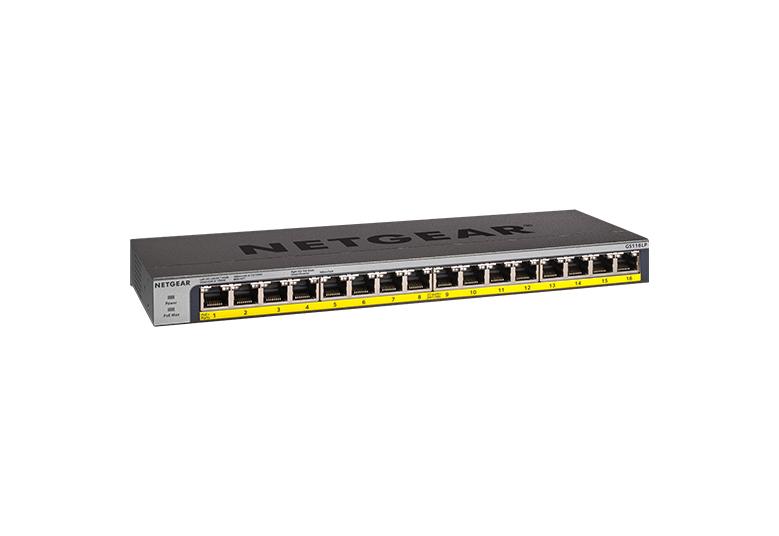

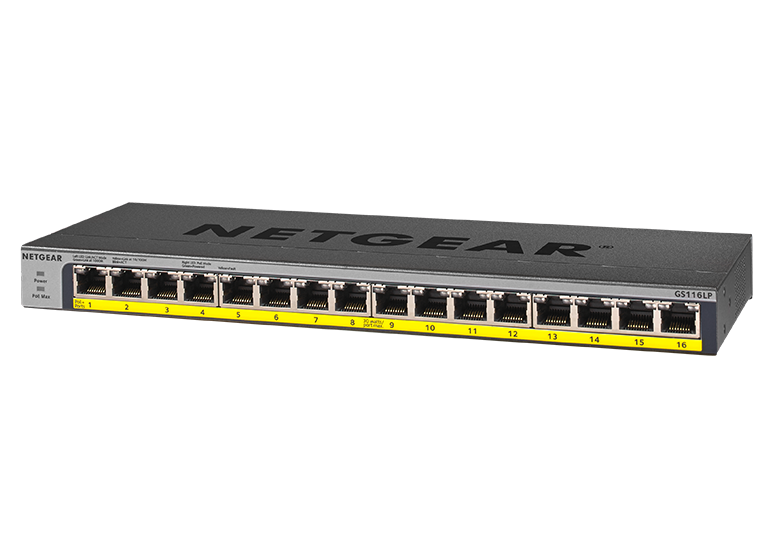

16-Port Gigabit Ethernet Unmanaged PoE+ Switch with FlexPoE (76W)
16-Port Gigabit Ethernet Unmanaged PoE+ Switch with FlexPoE (76W)
GS116LP
1 / 10
Ports
- 16 Ports
Port Types
- 16 x Gig Copper Ports
- 16 x 802.3af/802.3at Ports
PoE Budget
- 76W
Details
GS116LP
Ports
- 16 Ports
Port Types
- 16 x Gig Copper Ports
- 16 x 802.3af/802.3at Ports
PoE Budget
- 76W
Details
Features
PLUG AND PLAY: Simple setup with no software or configuration needed.
POWER-OVER-ETHERNET: 16 PoE+ ports with 183W total power budget, and includes NETGEAR FlexPoE allowing to reduce the power budget to 155W or even 76W (w/separately purchased power supply modules)
FLEXIBLE MOUNTING: Mount on rack, desktop, or wall.
SMALL SIZE, METAL CASE AND SILENT OPERATION: Durable quality, space saver, and quietness for peace of mind.
LIFETIME LIMITED WARRANTY & NEXT BUSINESS DAY REPLACEMENT: NETGEAR has your back to ensure your network is up and running.
STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS: Can be placed on desk or on mounted rack and will operate quietly with assured durability.
Choice of Fast Ethernet and Gigabit Ethernet connectivity
Energy-efficient technology for power savings
PoE power auto-balance - the switch automatically balances the PoE power based on the device needs independent of PoE class detected, at a very granular level.
Auto-MDI/MDIX eliminates the need for crossover cables
Non-blocking switching architecture for maximum throughput at wire speed
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
Desktop or rackmountable
Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other PoE-powered devices
These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE power
Built-in PoE power selector switch that allow for optional / interchangeable power adapters* (sold separately) that can be used to increase (or decrease) the PoE power available on the switch
The flexible mounting system gives you the flexibility to place them in a desktop environment, wall mount them, or even rack-mount (accessories included)
Technical Specifications
Dimensions (WxDxH) @mm | 286 x 102 x 27 mm |
Weight (kg) | 0.88 kg |
Speed | Gigabit |
Number of Ports | 16 |
Number of PoE+ Ports | 16 PoE+ ports, up to 30W per port |
PoE Budget | 76W |
Energy Efficient Ethernet Support (IEEE 802.3az) | Yes |
Jumbo Frame Support | Yes |
MAC Table Size | 4K |
Packet buffer size | 1MB |
IEEE 802.1p QoS | Yes |
Max Power Consumption | 90W |
Fans | 0 |
Operating Temperature | 0° to 40°C (32° to 104°F) |
MTBF (hours) | 2,362,192 hours |
FCC Class | Class A |
Warranty : | This product is backed by NETGEAR limited lifetime hardware warranty. |
| | Click here for coverage, availability and terms and conditions. |
Support : | NETGEAR Support offers a customizable support experience based on your operational needs: |
|
|
|
|
| Support coverage in one, three, or five year contracts |
