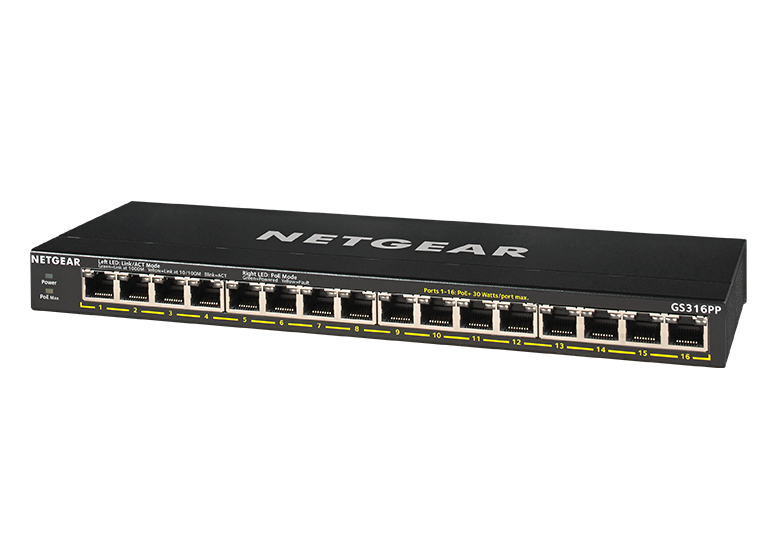

NETGEAR GS316PP Unmanaged 16-Port PoE+ Gigabit Ethernet Switch
NETGEAR GS316PP Unmanaged 16-Port PoE+ Gigabit Ethernet Switch
GS316PP
1 / 9
Ports
- 16 Ports
Port Types
- 16 x 10/100/1000Mbps Ports (Auto Uplink)
- 16 x 802.3af PoE Ports
- 16 x 802.3at PoE+ Ports
PoE Budget
- Up to 183W
Details
GS316PP
Ports
- 16 Ports
Port Types
- 16 x 10/100/1000Mbps Ports (Auto Uplink)
- 16 x 802.3af PoE Ports
- 16 x 802.3at PoE+ Ports
PoE Budget
- Up to 183W
Details
Features
ETHERNET PORT CONFIGURATION:
16 Gigabit ports
PLUG-AND-PLAY:
Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE:
Non-blocking switching architecture for maximum throughput at wire speed
POWER-OVER-ETHERNET:
16 PoE+ ports with 183W total power budget to power wireless AP, IP Cameras, IP Phones and much more
NETGEAR FlexPoE
Upgradable to 183W PoE+ Budget (w/separately purchased power supply module)
PoE POWER AUTO-BALANCE AND ALLOCATION
NETGEAR's unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs.
SILENT OPERATION:
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
ENERGY EFFICIENT:
Designed to optimize power usage lowering its cost to operate.
Metal Case
Durable and Rugged
VERSATILE MOUNTING OPTIONS:
Supports desktop and wall placement. Includes wall mount kit in the box
STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs
Technical Specifications
Dimensions | 286 x 102 x 27 mm (11.3 x 4 x 1.1 in) |
Weight | 0.88 kg (1.94 lb) |
Model name | NETGEAR 16-Port Gigabit Ethernet Unmanaged PoE+ Essentials Switch (183W) |
Speed | Gigabit |
Number of Ports | 16 |
PoE ports/Max power output | 183W |
Energy Efficient Ethernet support | Yes |
Jumbo frame support | 9,216 bytes |
MAC table size | 4K |
Packet buffer size | 1 MB |
PoE Auto balance | Yes |
PoE budget | Up to 183W |
Warranty | This product is backed by NETGEAR limited lifetime hardware warranty. |
| Click here for coverage, availability and terms and conditions. |
Support | NETGEAR Support offers a customizable support experience based on your operational needs: |
| |
|
|
|
| Support coverage in one, three, or five year contracts |
