NETGEAR Orbi RBR860S Tri-Band WiFi 6 Router
NETGEAR Orbi RBR860S Tri-Band WiFi 6 Router
up to 180 m²
1 / 6
up to 180 m²
New
ORBI 860 Series Router
10 Gig
INTERNET PORT
futureproof for the fastest speeds
Product Specifications
| Orbi WiFi 6 Router (RBR860) | 1 |
| 6ft (2m) Ethernet cable | 1 |
| 19V/3.16A power adapter | 1 |
| Quick Start Guide | 1 |

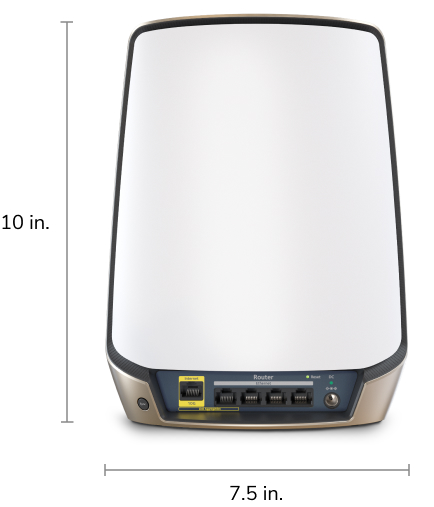

| Height | 10 inches (254mm) |
| Width | 7.5 inches (190.5mm) |
| Depth | 2.8 inches (71.12mm) |
| Weight | 2.86 lbs (1.29kg) |
| WiFi Coverage | 2,700 sq. ft. |
| Requirements | High-speed internet connection to existing modem or gateway |
ROUTER
| WiFi Coverage | 2,700 sq. ft. |
| Speed | AX6000 (2400 + 2400 + 1200Mbps)† |
| Simultaneous Tri-Band WiFi with dedicated backhaul | Radio 1: IEEE® 802.11b/g/n/ax/2.4GHz – 1024 QAM support Radio 2: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support Radio 3: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support |
| Processor | Quad-core 2.2GHz processor |
| Memory | 512MB NAND Flash and 1GB RAM |
| Antenna | Eight (8) high-performance internal antennas with high-power amplifiers |
| Ports | One (1) 10Gbps Multi-Gigabit Ethernet WAN port Four (4) 10/100/1000Mbps Gigabit Ethernet LAN ports |
| Standards-based WiFi Security | 802.11i, 128-bit AES encryption with PSK |
| Guest WiFi Network | Easy to setup separate & secure Internet access for guests |
| NETGEAR Armor™ | Internet security for your home with automatic protection, updates, & alerts that monitors and helps safeguard all connected devices from hackers and data theft. Learn More |
| NETGEAR Smart Parental Controls™ | Easily manage your kids' time and accessibility online across their connected devices.2 |
| NETGEAR 1-year limited warranty (valid only if purchased from a NETGEAR authorized reseller) | Extend your warranty and technical support within 90 days of product purchase (US only) Learn More |
| 90-day complimentary technical support (valid only if purchased from a NETGEAR authorized reseller) | Learn More |
Never sacrifice speed
NETGEAR-invented Tri-band technology with a Dedicated Backhaul “express lane” for WiFi to travel directly between router and satellites means you get maximum, unimpeded whole-home WiFi speed that stays fast even with 100 devices connected at the same time.
Bigger means better coverage
Orbi’s tall, elegant shape is no coincidence. Under the hood, our patented antenna design ensures superior WiFi across the whole home. The Orbi 860 Series' all-new antenna upgrades deliver a stunning 20% boost in performance and coverage from the previous generation.
Connect more devices than ever
Orbi WiFi 6 mesh systems are supercharged for today’s data intensive devices and smart homes. Connect everything from PCs, phones, and TVs to security cameras, door locks, and more. Only Orbi can deliver so much device capacity with maximum speed.
Easy setup and management
The Orbi app makes it easy to install your Orbi and get it up and running in less than 15 minutes. Easily manage your home network even when you are not at home. Orbi is compatible with any internet service provider’s equipment.
Smart Security. Powerful Privacy. Total Peace of Mind.
A powerful suite of tools to help keep you safe online, at home or on the go.
CONNECTED KIDS ARE PROTECTED TOO
Easily manage kids’ time and accessibility online across all connected devices using Smart Parental Control
Footnotes
† Maximum wireless signal rate derived from IEEE ® 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 6Gbps wireless speeds achieved when connecting to other 802.11ax 6Gbps devices.
†† Gigabit service plans & compatible cable modem required for gigabit or multi-gig internet speeds.
‡ Compared to RBK853 throughput improvement at maximum range.
1 NETGEAR ® Armor™ Powered by Bitdefender ® is a free during the initial 1-year period. A yearly subscription, after the trial period, protects all of your connected devices. Visit www.netgear.com/armor
2 NETGEAR Smart Parental Controls™ fees apply for a Premium Plan. Visit www.netgear.com/spc
