40x10G SFP+ and 4x100G QSFP28 Managed Switch
XSM4344FC
1 / 9
Ports
- 44 Ports
PoE Budget
- -
Details
- 40 10GBASE-X SFP+ ports with 4 100GBASE-X QSFP28 uplinks.
- 420W internal power supply.
- 1 slot for modular power supply (1+1 redundancy).
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used.
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
- Layer 3 feature set includes static, policy-based, and dynamic routing.
- NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations.
- SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
- Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.
Ports
- 44 Ports
PoE Budget
- -
Details
- 40 10GBASE-X SFP+ ports with 4 100GBASE-X QSFP28 uplinks.
- 420W internal power supply.
- 1 slot for modular power supply (1+1 redundancy).
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used.
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
- Layer 3 feature set includes static, policy-based, and dynamic routing.
- NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations.
- SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
- Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.
Power and Throughput
Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
Fast, Easy Configuration
for AV Pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.
Focus on the Event Not the Fan Noise
Most models have quiet mode which greatly reduces fan noise.
Designed For AV Over IP Right out of the Box
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

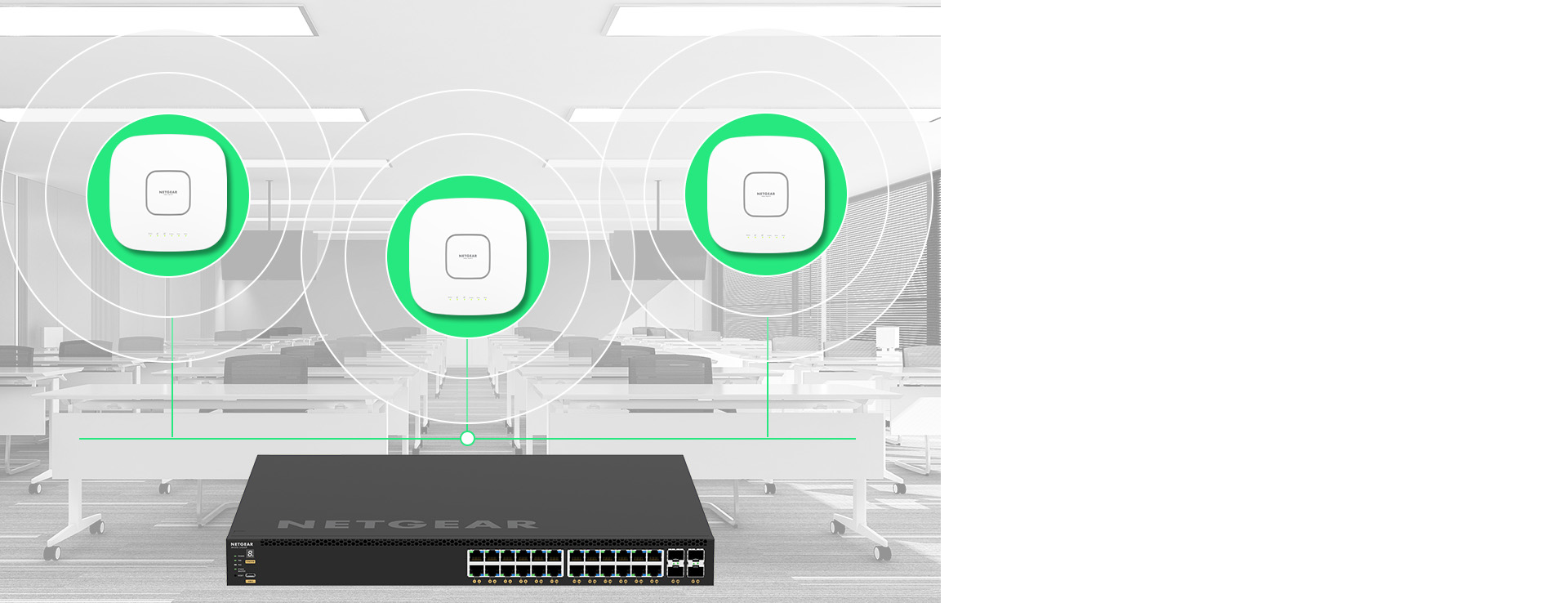

MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
PRO AV FAMILY COMPARISON
USE CASE
SWITCH STACKING
PoE CAPABLE
PORT SPEEDS
AVB SUPPORT
AV WEB UI / AV TEMPLATES
AV DESIGN
(FRONT LED'S & REAR CABLING)
M4350-40F4C Technical Specifications
M4350-40F4C (XSM4344FC) | 1 | |
Power cord(s) | 1 | |
Console USB Type-C cable | 1 | |
Rack-mounting standard bracket set | 1 | |
Set of longer brackets for recessed mounting | 1 | |
Rubber footpads for tabletop installation | 4 | |
Installation guide | 1 |
Width | 440mm | |
Depth | 400mm | |
Height | 43.2mm | |
Weight | 7.38Kg (16.26lb) | |
Primary Port Speed | 10 Gigabit | |
Number of Ports | 44 (40 x 10G SFP+, 4 x 100G QSFP28) | |
IGMP Support | Enhanced (NETGEAR IGMP Plus™) | |
Jumbo Frame Support | Yes, up to 12kb | |
AVB Support | Yes, included. | |
Acoustics | Quiet Mode 34.2dB@25ºC | |
Power Consumption | Max: 213.6W/728.21Btu/hr Standby without any port connection: 65W/221.12Btu/hr | |
PSU Compatible Models | APS600Wv3 APS1200Wv2 APS2000Wv2 |
NETGEAR Engage Controller | Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive. |
This product is backed by NETGEAR limited lifetime hardware warranty. | |
Click here for coverage, availability and terms and conditions. |
NETGEAR Support offers a customizable support experience based on your operational needs: | ||
| ||
| ||
Support coverage in one, three, or five year contracts | ||
Pro AV Information | Learn More | |
M4350-40F4C Support | Learn More | |
AV Resource Center | Learn More |
