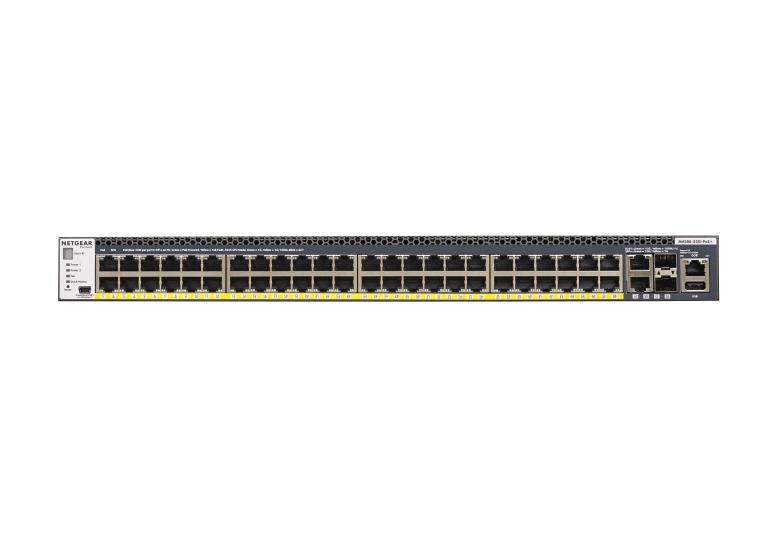

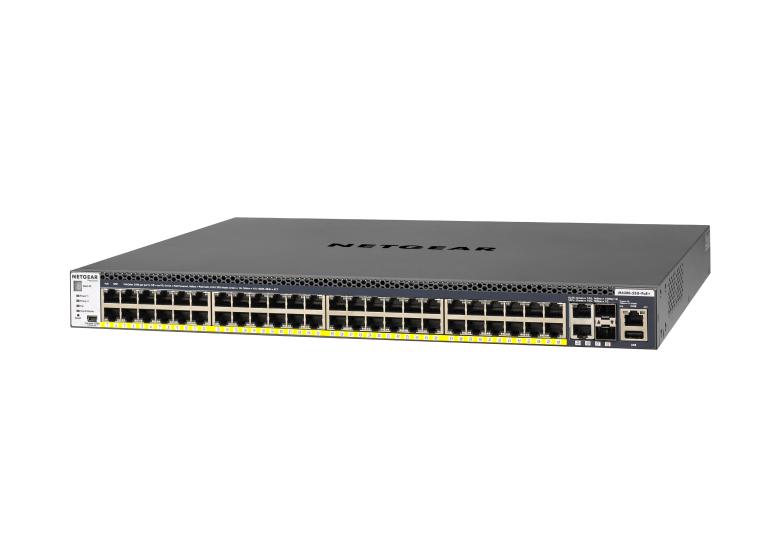

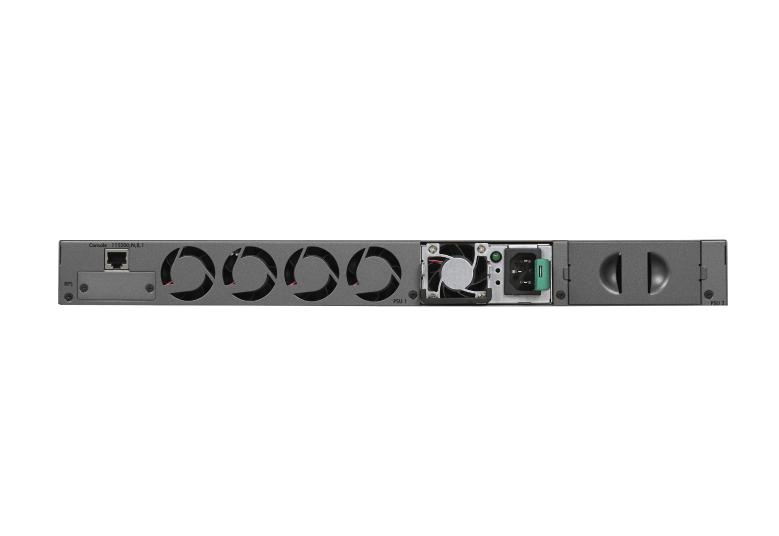

M4300-52G-PoE+, GSM4352PA, 48x1G PoE+ 480W, 2x10G, 2xSFP+
GSM4352PA
M4300-52G-PoE+, GSM4352PA, 48x1G PoE+ 480W, 2x10G, 2xSFP+
1 / 5
M4300-52G-PoE+, GSM4352PA, 48x1G PoE+ 480W, 2x10G, 2xSFP+
Ports
- 52 Ports
Port Types
- 48 x 1G PoE+ 480W
- 2 x 10G
- 2 x SFP+
PoE Budget
- 480W PoE Budget with 1 PSU @ 110V / 220V AC input 480W PoE Budget with 2 PSUs in redundant RPS mode @ 110V / 220V AC input 720W PoE Budget with 2 PSUs in shared EPS mode @ 110V / 220V AC input External RPS4000v2 for power redundancy (RPS) when 2 internal PSUs are used in EPS mode
Details
GSM4352PA
Ports
- 52 Ports
Port Types
- 48 x 1G PoE+ 480W
- 2 x 10G
- 2 x SFP+
PoE Budget
- 480W PoE Budget with 1 PSU @ 110V / 220V AC input 480W PoE Budget with 2 PSUs in redundant RPS mode @ 110V / 220V AC input 720W PoE Budget with 2 PSUs in shared EPS mode @ 110V / 220V AC input External RPS4000v2 for power redundancy (RPS) when 2 internal PSUs are used in EPS mode
Details
Features
Business Continuity Management
Full-width switches offer dual redundant, modular power supplies (select m4300 models)
High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Fiber Ports
48 SFP+ Fiber ports have 1G/10G speeds & 2x 10Gb Copper
Simple GUI
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow
With PoE+, plug and play ports, and hot swap, you're ready to grow whenever you need to
Industry Standard
SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)
Zero Touch AV-over-IP
Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
No Delay
Non-Blocking Fabric for Near-Zero Switch Latency
NETGEAR IGMP Plus™
Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
Dedicated Design
ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com
One Cord for All
Hot swap APS550W PSUs deliver 480W redundant PoE+ budget across 24 ports, or 720W in share mode
Industry-Standard Management
Stay on top of operations with: CLI, local GUI, SNMP, sFlow, RSPAN, single pane of glass NMS300
Secure Your Data
Defend with Access Control, DiffServ QoS policies, LACP Link Aggregation, Private VLANs, Denial of service protection
Dependable Operations
Enjoy high availability across virtual servers through load balancing and nonstop forwarding failover.
Technical Specifications
Warranty : | This product is backed by NETGEAR limited lifetime hardware warranty. |
| | Click here for coverage, availability and terms and conditions. |
Support : | NETGEAR Support offers a customizable support experience based on your operational needs: |
| | Sprint support option with 24/5 Technical Support (phone, online) and Advance RMA Replacement |
| | Overdrive support option with 24/7 Technical Support (phone, online, 2h SLA) and Next Business Day RMA Replacement |
Support coverage in one, three, or five year contracts |

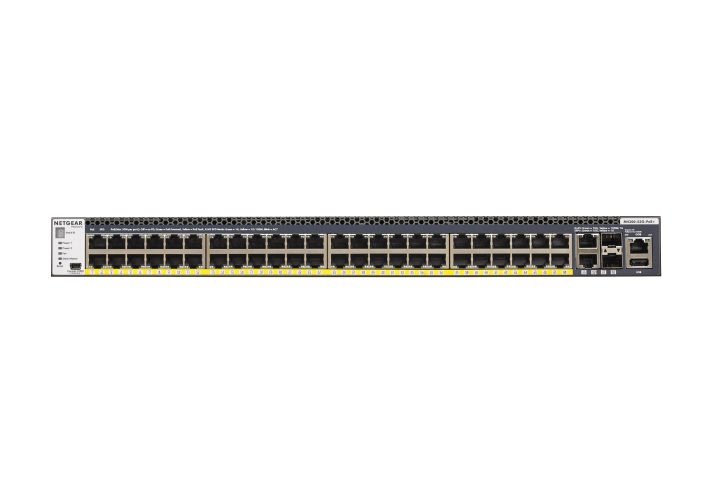

Hardware Specifications : | 48x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (550W PSU) |
Ordering Number : | GSM4352PA |
Acoustics : | 39.8dB @ 25°C (77°F) |
Power Consumption (Max) : | 865 Watts |
1G RJ45 Ports : | 48 x 10/100/1000 |
10G RJ45 Ports : | 2 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds) |
10G Fiber SFP+ Ports : | 2 x SFP+ (1G and 10G speeds) |
Power over Ethernet : | 48 x PoE+ 30W |
PoE Budget (Watts) : | 480W PoE Budget with 1 PSU @ 110V / 220V AC input |
| | 480W PoE Budget with 2 PSUs in redundant RPS mode @ 110V / 220V AC input |
| | 720W PoE Budget with 2 PSUs in shared EPS mode @ 110V / 220V AC input |
| | External RPS4000v2 for power redundancy (RPS) when 2 internal PSUs are used in EPS mode |
Feature Set : | Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing) |
Management Ports : | 1G Ethernet service port for out-of-band management (OOB, RJ45) |
| | RS232 straight-through serial RJ45 for local management console |
| | Mini-USB port for local management console |
| | USB port for local storage, logs, configuration or image files |

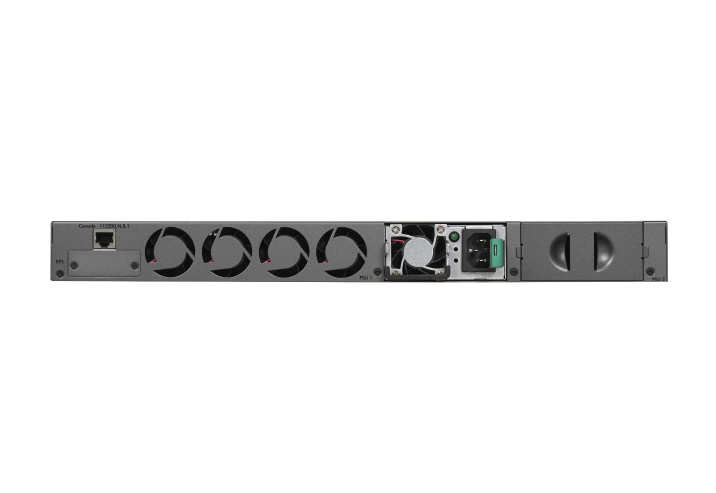

Form Factor : | Full width with dual, redundant modular PSUs for business continuity |
