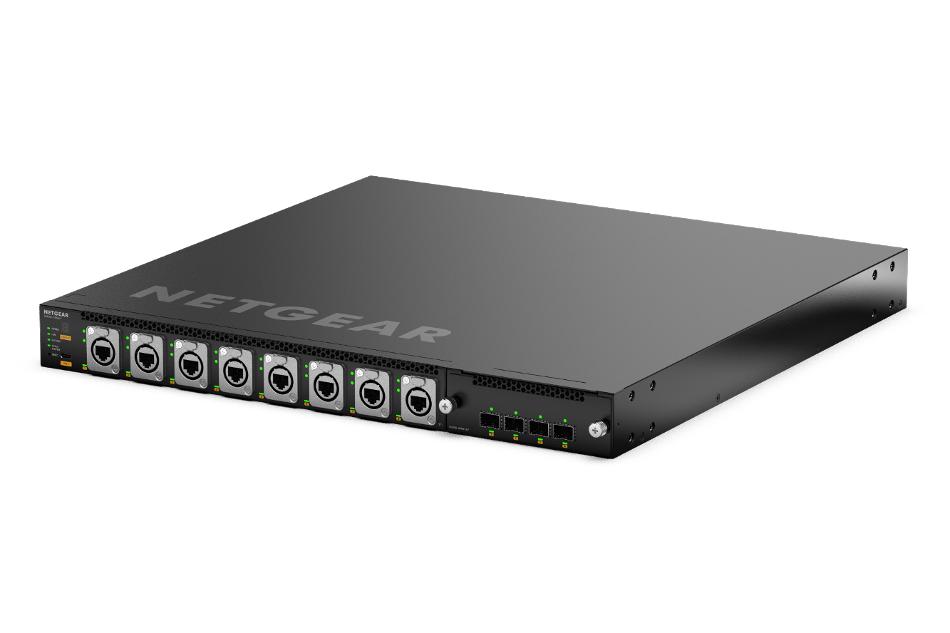

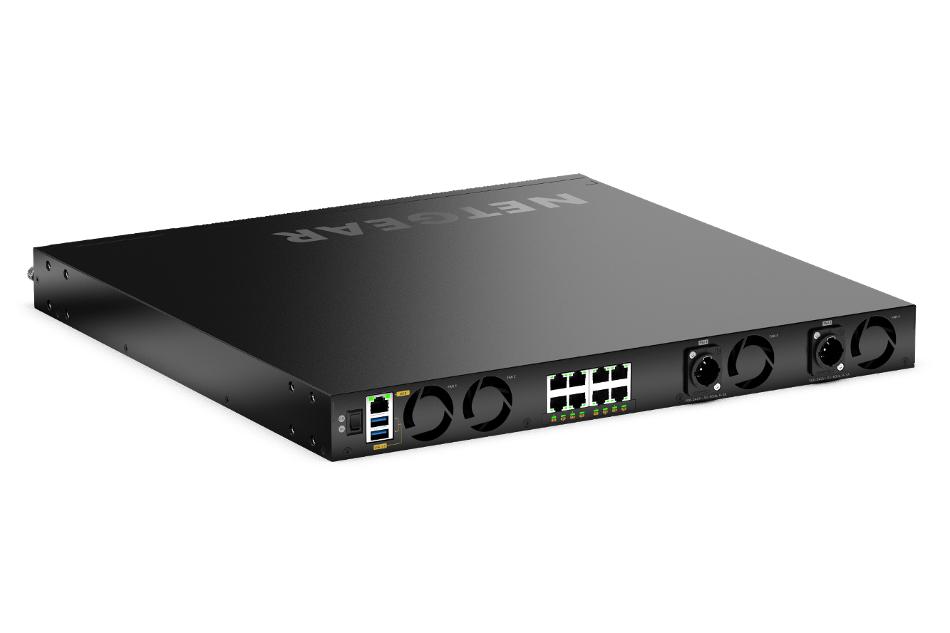

16x 2.5G PoE++ (530W base, up to 1,130W) incl. 8x Neutrik etherCON and 4xSFP28 25G Managed Switch

PRO AV RESOURCES banner
Find a Retailer

16x 2.5G PoE++ (530W base, up to 1,130W) incl. 8x Neutrik etherCON and 4xSFP28 25G Managed Switch

<ul> <li>Two internal 800W power supplies providing 530W of redundant base PoE budget</li> <li>Switch ships with one APM414V interface card with 4x 25G SFP28 ports</li> <li>Optional APM414C Interface Card with 4x 10G RJ-45 ports</li> <li>Optional APM414SD Interface Card with 2x Neutrik opticalCON QUAD connectors for 4x MMF transceivers</li> <li>Optional APM414LD Interface Card with 2x Neutrik opticalCON QUAD connectors for 4x SMF transceivers</li> <li>2x Neutrik powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords</li> <li>Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover</li> <li>Layer 3 feature set includes static, policy-based, and dynamic routing</li> <li>NETGEAR IGMP Plus&trade;, NETGEAR AV OS&trade;, and NETGEAR Engage&trade; Controller speed up AV installations</li> <li>SMPTE ST 2110 Grandmaster Clock and Boundary Clock for AES67 and ST2059-2 applications</li> <li>Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS&trade; and Engage Controller</li> </ul>
16x 2.5G PoE++ (530W base, up to 1,130W) incl. 8x Neutrik etherCON and 4xSFP28 25G Managed Switch
NEW

1 / 4

<ul> <li>Two internal 800W power supplies providing 530W of redundant base PoE budget</li> <li>Switch ships with one APM414V interface card with 4x 25G SFP28 ports</li> <li>Optional APM414C Interface Card with 4x 10G RJ-45 ports</li> <li>Optional APM414SD Interface Card with 2x Neutrik opticalCON QUAD connectors for 4x MMF transceivers</li> <li>Optional APM414LD Interface Card with 2x Neutrik opticalCON QUAD connectors for 4x SMF transceivers</li> <li>2x Neutrik powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords</li> <li>Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover</li> <li>Layer 3 feature set includes static, policy-based, and dynamic routing</li> <li>NETGEAR IGMP Plus&trade;, NETGEAR AV OS&trade;, and NETGEAR Engage&trade; Controller speed up AV installations</li> <li>SMPTE ST 2110 Grandmaster Clock and Boundary Clock for AES67 and ST2059-2 applications</li> <li>Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS&trade; and Engage Controller</li> </ul>
Find a Retailer
m4350 power and throughput tcm148 150410

Power and Throughput

Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

m4350 simplified desktop

Groundbreaking AV GUI

A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant

NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design

Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration

Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

M4350 fast easy configuration tcm148 150414

Fast, Easy Configuration
for AV Pros

A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.

m4250 pro av dt 5 tcm148 139377

Designed For AV Over IP Right out of the Box

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

m4250 pro av dt 4 tcm148 139378

Focus on the Event Not the Fan Noise

Most models have quiet mode which greatly reduces fan noise.

m4250 pro av dt 8 tcm148 139376

PRO AV RESOURCES

All the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.

RESOURCES

PRO AV FAMILY COMPARISON

USE CASE

SWITCH STACKING

PoE CAPABLE

PORT SPEEDS

AVB SUPPORT

AV WEB UI / AV TEMPLATES

AV DESIGN
(FRONT LED'S & REAR CABLING)

M4250 SWITCH SERIES

Access/Edge

No

Yes

1, 2.5, 10Gbps

Yes*

Yes

Yes

M4350 SWITCH SERIES

Core/Access/Edge

Yes

Yes

1, 2.5, 10, 25, 100Gbps

Yes

Yes

No

M4500 SWITCH SERIES

Core/Access/Edge

No (MLAG)

No

1, 10, 25, 100Gbps

No

No

No

M4350-16M4V (MSM4320) Technical Specifications

M4350-16M4V (MSM4320)

1

Power Cord (Standard AC to C13)

1

Neutrik powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords

2

Console USB Type-C cable

1

Rack-mounting standard bracket set

1

Set of longer brackets for recessed mounting

1

Rubber footpads for tabletop installation

4

Installation guide

1

Width

440mm

Depth

432mm

Height

43.2mm

Weight

7.85kg (17.31lb)

Primary Port Speed

2.5 Gigabit

Number of Ports

20 (16 x 2.5G PoE++ incl. 8x Neutrik etherCON, and 4x 25G SFP28)

IGMP Support

Enhanced (NETGEAR IGMP Plus™)

Jumbo Frame Support

Yes, up to 12kb

AVB Support

Yes, included.

Acoustics

Quiet Mode 35.6dB@25ºC

Power Consumption

With max PoE: 1359.8W/4,639.64Btu/hr

Without PoE: 109.6W/373.96Btu/hr

Standby w/o any port connection

50.6W/170.60Btu/hr

PSU Compatible Models

Internal only

Internal PSUs

2 internal 800W PSUs with PowerCON connectors

Compatible Interface Cards

APM414SD (2x Neutrik opticalCON QUAD for 4x MMF Transceivers)
APM414LD (2x Neutrik opticalCON QUAD for 4x SMF Transceivers)
APM414V (4x Standard 25G SFP28 ports) ships with the switch
APM414C (4x Standard 10G RJ5 ports)

NETGEAR Engage Controller

Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive.
Learn More

Warranty :

This product is backed by NETGEAR limited lifetime hardware warranty.​

Click here for coverage, availability and terms and conditions.

Support :

NETGEAR Support offers a customizable support experience based on your operational needs:​

  • Sprint support option with 24/5 Technical Support (phone, online) and Advance RMA Replacement​

  • Overdrive support option with 24/7 Technical Support (phone, online, 2h SLA) and Next Business Day RMA Replacement​

Support coverage in one, three, or five year contracts​

Visit http://www.netgear.com/enterprise-support for more information.
