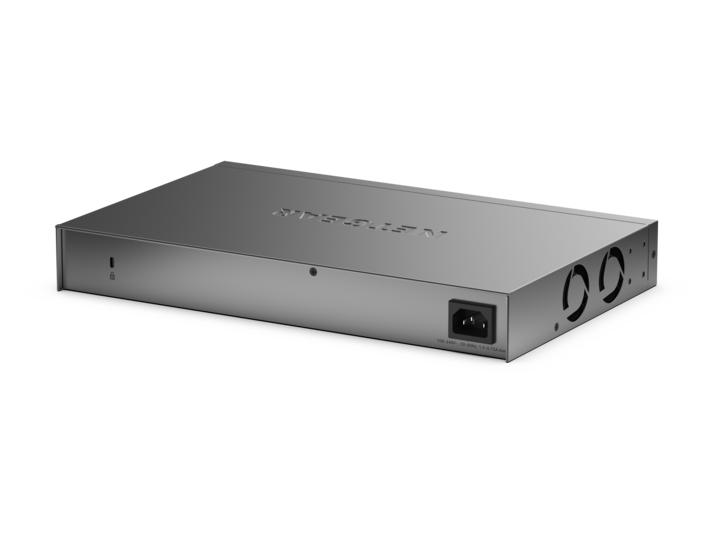

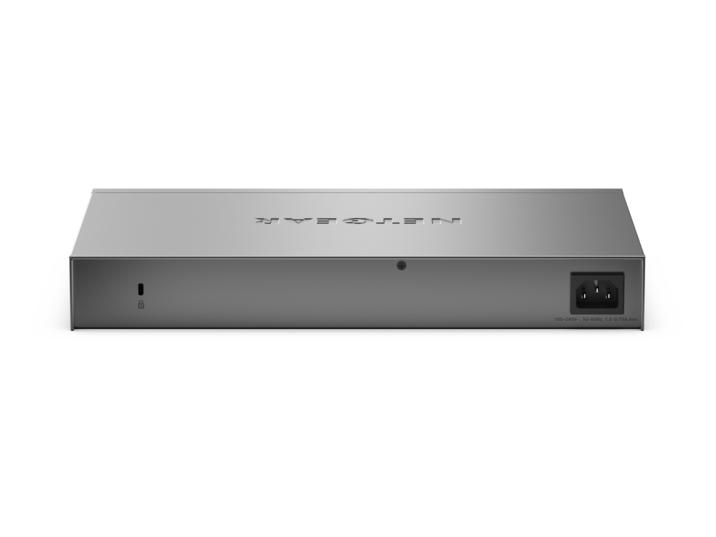

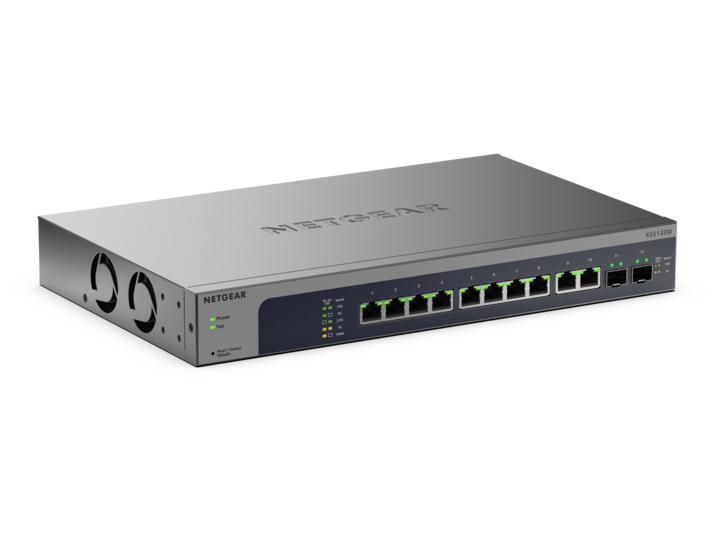

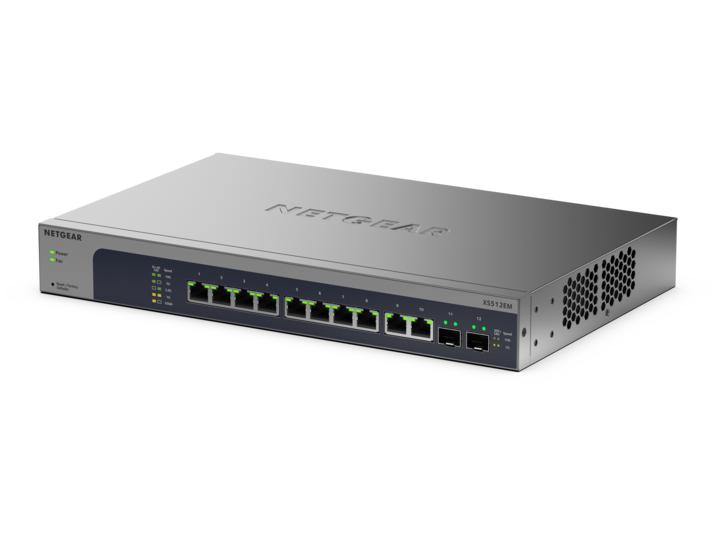

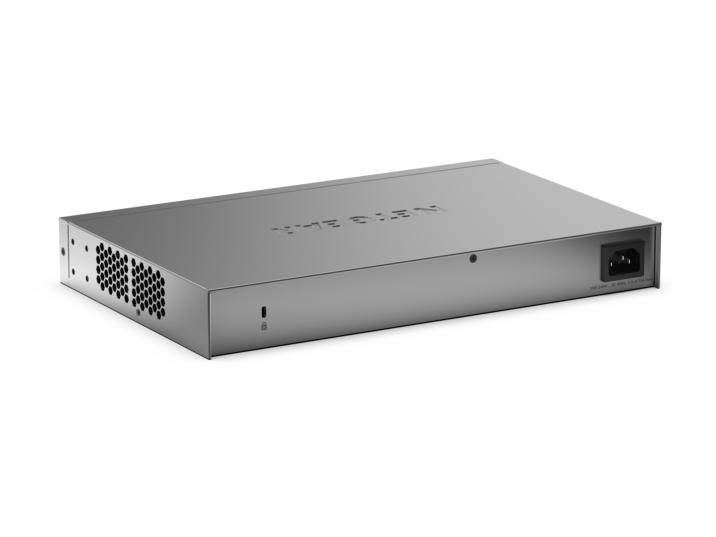

10G/Multi-Gigabit Easy Smart Managed Switch (XS512EMv2)
12-Port 10G/Multi-Gigabit Ethernet Easy Smart Managed Switch with 2 10G SFP+ Ports
10G/Multi-Gigabit Easy Smart Managed Switch (XS512EMv2)
12-Port 10G/Multi-Gigabit Ethernet Easy Smart Managed Switch with 2 10G SFP+ Ports
- 10 x 10G/Multi-Gigabit ports with 2 10G SFP+ ports
- Easy management with intuitive web-based Interface
- Versatile placement options: desktop or rackmount
- Optimized for low-noise operation
Why Multi-Gigabit?
Maximize network performance by giving your devices the speed they need automatically: 100M /1G / 2.5G / 5G or 10G.
LEARN MOREFeatures
MULTI-GIGABIT CONNECTIONS
Each port automatically detects and provides the exact speed needed (1G/2.5G/5G/10G). Upgrade your current network without upgrading your existing cabling, thanks to Multi-Gigabit you will be able to run 5G and 2.5G over connections up to 100m.SFP+ FIBER UPLINKS
10G SFP+ ports provide flexible fiber connectivity options for core switch uplinks with backward compatibility to Gigabit fiber networks.WHISPER-QUIET ACTIVE COOLING & FLEXIBLE FORM FACTOR
Active fan design operates below office ambient noise levels while maintaining optimal performance at temperatures up to 50°C, with Rack-mount or Desktop deployment options for versatile placement in any network environment.AUTO-VLAN
Automatic VLAN assignment for voice, video, WiFi, and camera traffic providing instant network segmentation and optimization for critical business applications.COMPREHENSIVE QOS CONTROLS
Port-based, IEEE 802.1p, and DSCP-based traffic prioritization with rate limiting ensures optimal performance for mission-critical applications like voice and video.LINK AGGREGATION & REDUNDANCY
Static LAG and LACP support enables bandwidth aggregation and failover protection with up to 8 members per LAG for enhanced network reliability.Technical Specifications
-
Dimensions (W x D x H)330 x 208 x 43 mm (13 x 8.2 x 1.7 in)
-
Weight2.5kg (5.5lb)
-
Speed1G/2.5G/5G/10G
-
Number of Ports
100M/1G/2.5G/5G/10G RJ-45 copper ports: 10
SFP+ Ports : 2 (supports 2x10G copper modules)
-
Form FactorDesktop/Rackmount
-
Bandwidth240 Gbps
-
MAC Table Size32K
-
Packet buffer size2MB
-
IEEE 802.1p QoSYes
-
VLAN (# supported)64
-
Number of LAGs & number of members6 LAGs with max 8 members in each LAG
-
Supported multicast groups256
-
Max Power Consumption60W
-
Energy Efficient Ethernet Support (IEEE 802.3az)Yes
-
Fans2
-
Acoustic noise level @ 25° C (dBA)28.2 dBA
-
LEDsPower, Speed, Fan, Link/Activity
-
Operating Temperature0-50°C (32°F - 122°F)
-
MTBF (hours)420,709 hrs (48.1 years)
-
FCC ClassClass A
-
This product is backed by a NETGEAR limited lifetime hardware warranty (depending on region). Click here for coverage, availability and terms and conditions.
Next Business Day Hardware Replacement for duration of warranty (depending on region). Click here for coverage, availability and terms and conditions.
-
ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing 1, 3, or 5-year contracts.
ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
