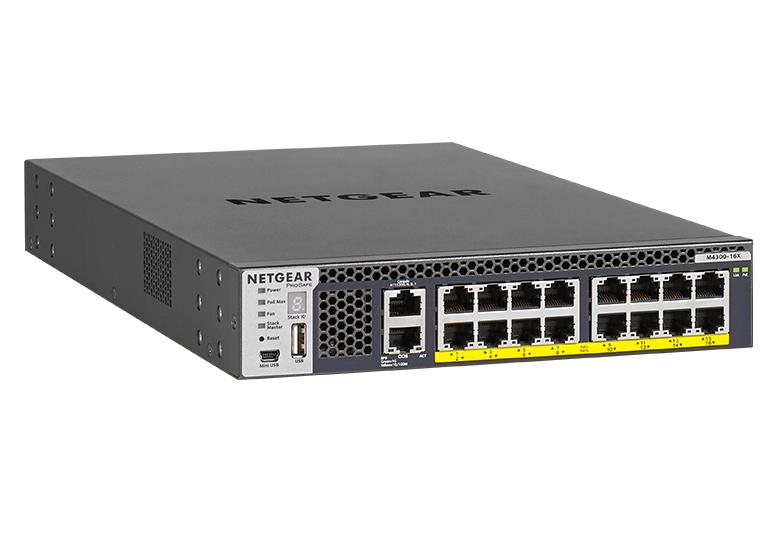

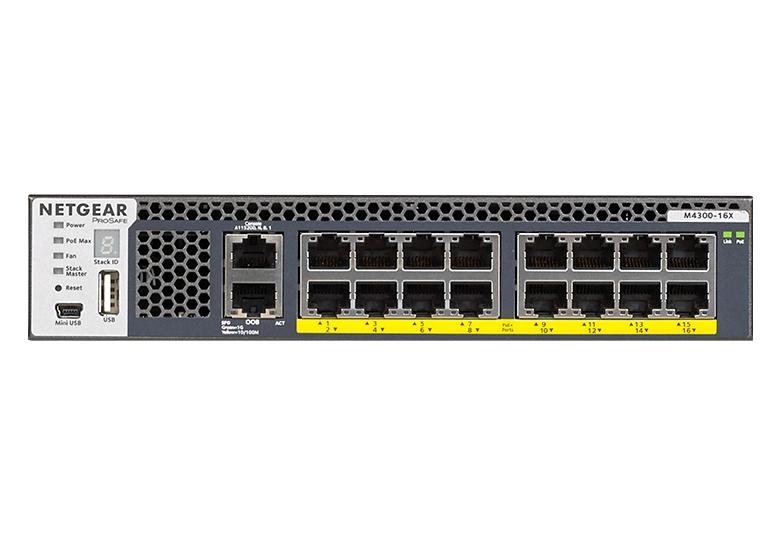

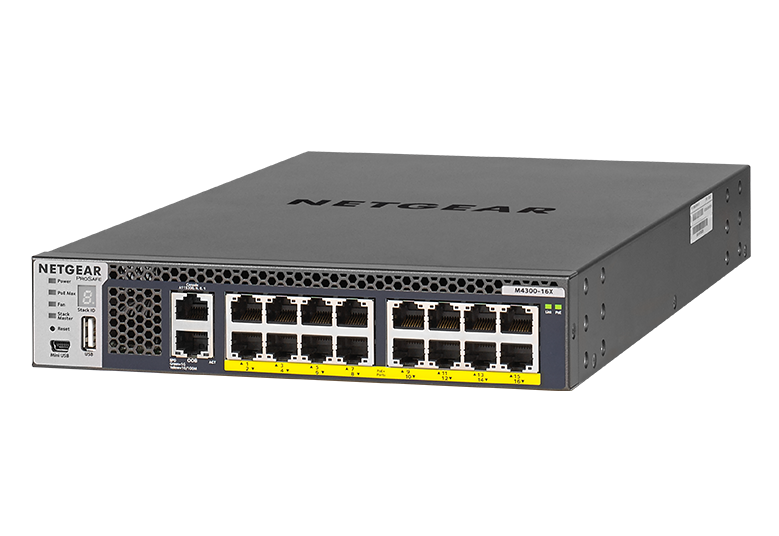

M4300-16X, XSM4316PB, 16x Multi-Gig, PoE+
1 / 6
Promo box test
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed sed arcu mollis augue imperdiet rhonc.
Features
High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
600W PSU
Ships with 600W PSU APS600W installed
All (16) 10G/Multi-gig ports can provide 30W of PoE+ power (500W budget)
Also available with smaller 299W PSU APS299W
Half-Width ToR
Combine 2 half-width models in a single rack space for redundant Top-of-Rack
Simple GUI
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow
With PoE+, upgradeable PSU plug and play ports, and hot swap, you're ready to grow whenever you need to.
Industry Standard
SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)
Pre-configured for Out-of-Box Multicast/IGMP
Just plug in the switch and play!
Non-Blocking Fabric for Near-Zero Switch Latency
NETGEAR IGMP Plus™
Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
Dedicated ProAV Engineering Services for AV Network Design and Install Support
Contact ProAVDesign@NETGEAR.com
Power Your Business
The M4300 series switches provide full PoE+, with 30 watts per port.
Flex Your Multi-Gig Muscle
This family of switches automatically selects the highest performance per port from 100M, 1Gb, 2.5Gb, 5Gb, and 10Gb.
The M4300 Family
Mix and match M4300 series switches to maximize your deployment opportunities.
ProAV out of the Box
Enjoy instant 1G/10G RX/TX end-point deployments with IGMP Snooping and NETGEAR exclusive IGMP Plus.
Product Specifications
Warranty : | This product is backed by NETGEAR limited lifetime hardware warranty. |
| | Click here for coverage, availability and terms and conditions. |
Support : | NETGEAR Support offers a customizable support experience based on your operational needs: |
| | Sprint support option with 24/5 Technical Support (phone, online) and Advance RMA Replacement |
| | Overdrive support option with 24/7 Technical Support (phone, online, 2h SLA) and Next Business Day RMA Replacement |
Support coverage in one, three, or five year contracts |
Power over Ethernet PoE: | 16x 10GBASE-T PoE+. Fully provisioned for up to 30 Watts Per Port. 500 Watts Total PoE+ Budget |

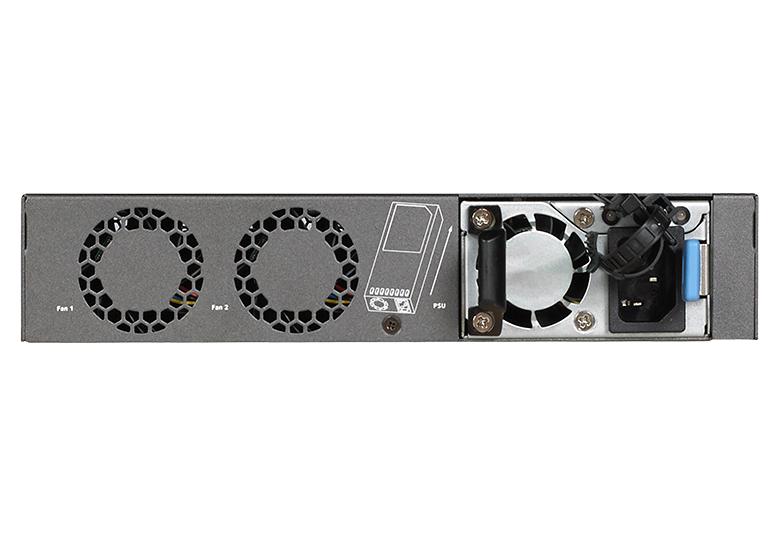

Hardware Specifications: | 16 Ports RJ45 PoE+ Multi-Gigabit 100M/ 1G / 2.5G / 5G / 10G. 1 Modular Bay with 1 600W Modular PSU included APS600W. 1-unit 1U / 2-unit 1U Rack Mount (Included). 320 Gbps Switching Fabric. Fixed Fan Front-to-Back 35db |
Management Options: | Ethernet: Out-of-band 1G port (Back). |
| | Console: RJ45 RS232 (Back). Console: Mini-USB (Front) |
| | Storage: USB (Front) |
| | Single-pane-of-glass NMS300 management platform with mass-configuration support |
| | Dual firmware image and configuration file for updates with minimum service interruption |
