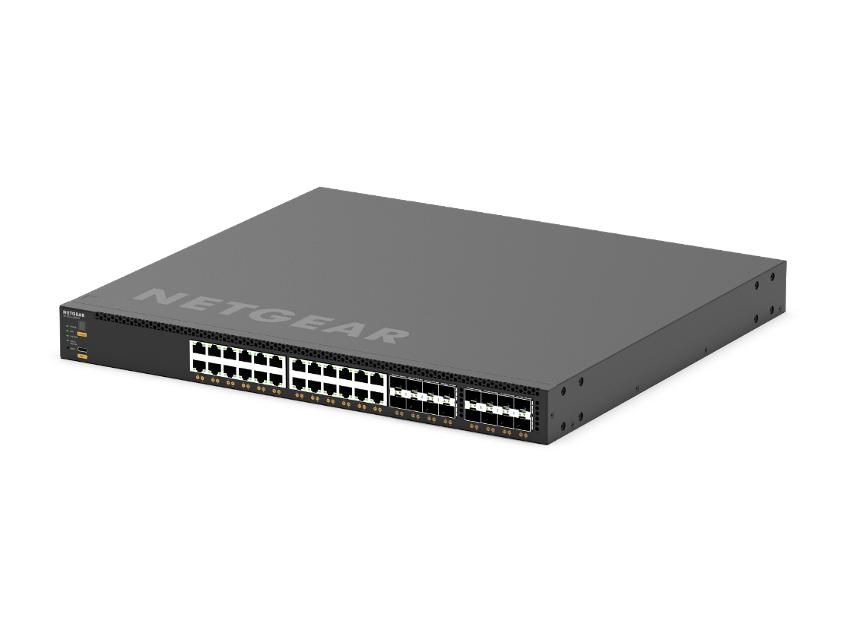

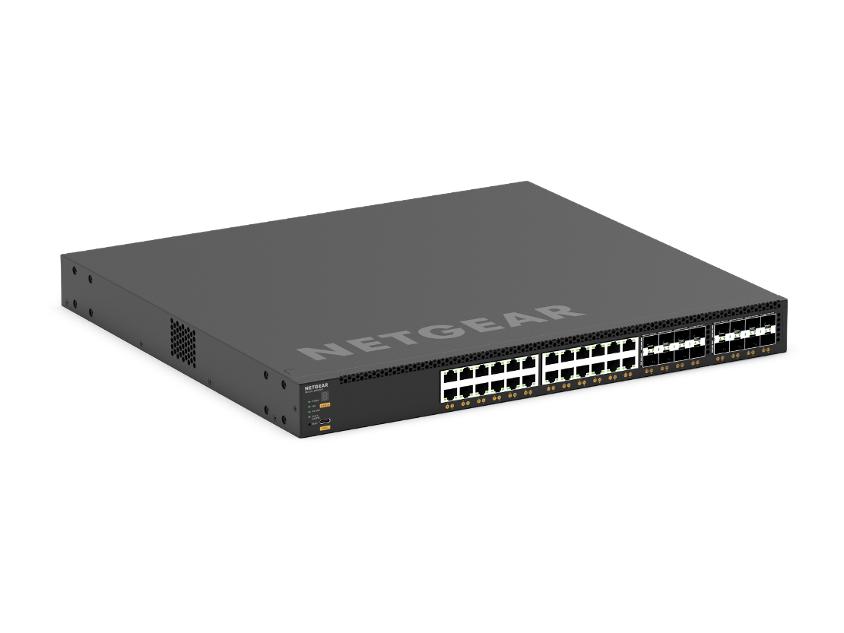

24x10G/Multi-Gig PoE++ (290W base, up to 1,770W), 8xSFP+ and 8xSFP28 25G Managed Switch
24x10G/Multi-Gig PoE++ (290W base, up to 1,770W), 8xSFP+ and 8xSFP28 25G Managed Switch
XSM4340V
1 / 11
Ports
- 40 Ports
Port Types
- 24 x 10G/Multi-Gig PoE++, 8 x 10G SFP+, 8 x 25G SFP28
PoE Budget
- 24 PoE++ (90W/port)
- 290W Base
- up to 1
- 770W Budget
Details

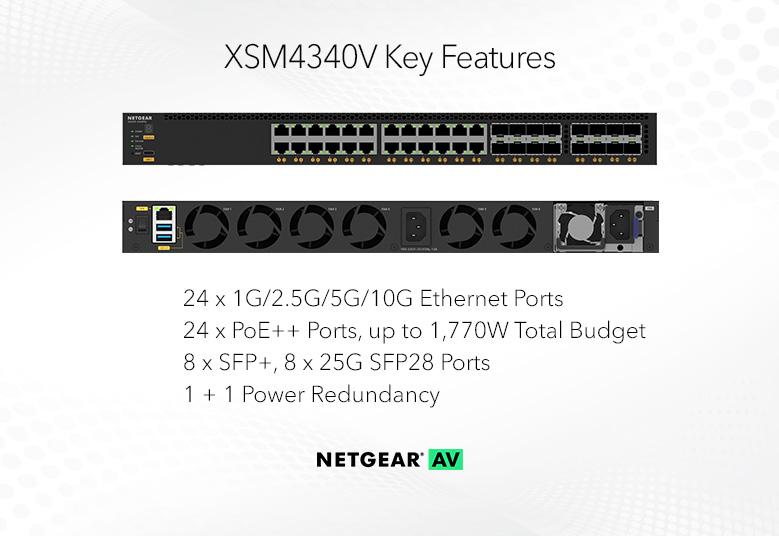

- 24 10G/Multi-Gig PoE++ ports, 8 10GBASE-X SFP+ and 8 25GBASE-X SFP28 ports
- 750W internal power supply providing 290W of PoE budget

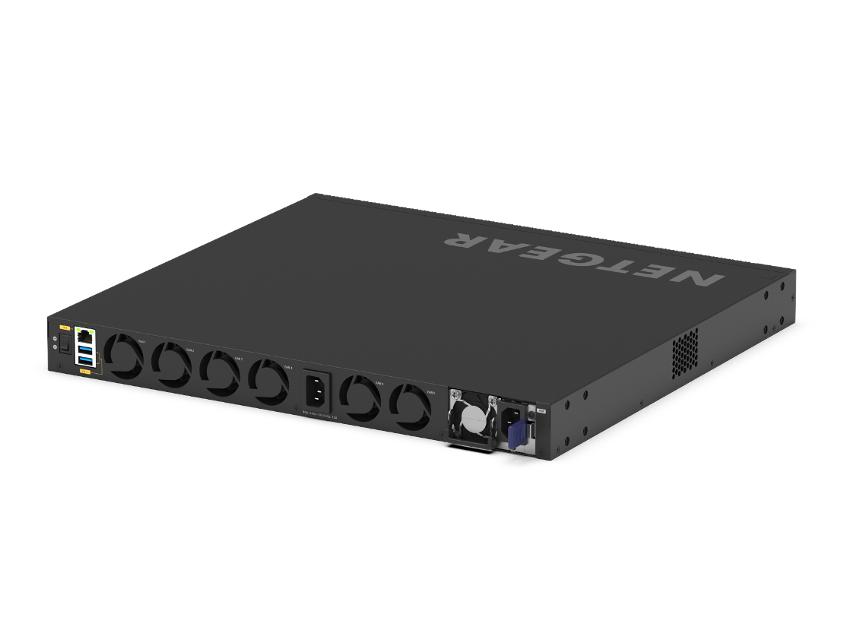

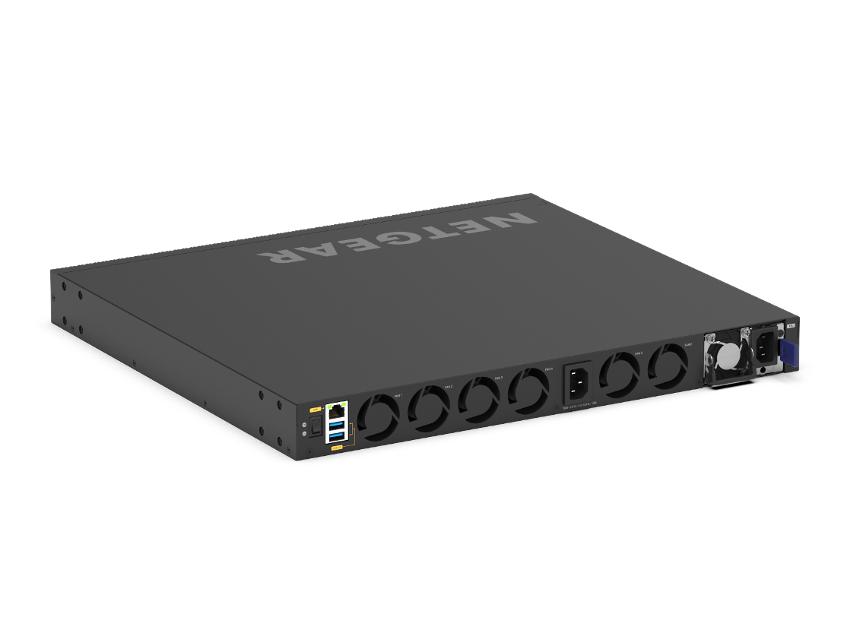

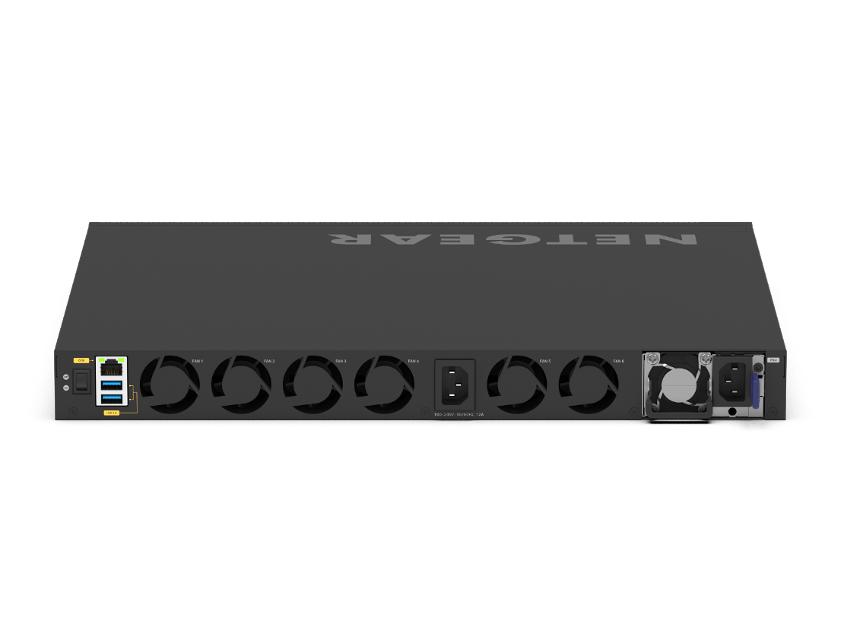

- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
- The PoE budget can reach 1,770W, when the redundant PoE budget remains 290W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- TAA-compliant SKU is available. Contact your sales representative
XSM4340V
Ports
- 40 Ports
Port Types
- 24 x 10G/Multi-Gig PoE++, 8 x 10G SFP+, 8 x 25G SFP28
PoE Budget
- 24 PoE++ (90W/port)
- 290W Base
- up to 1
- 770W Budget
Details
- 24 10G/Multi-Gig PoE++ ports, 8 10GBASE-X SFP+ and 8 25GBASE-X SFP28 ports
- 750W internal power supply providing 290W of PoE budget
- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
- The PoE budget can reach 1,770W, when the redundant PoE budget remains 290W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- TAA-compliant SKU is available. Contact your sales representative
Promo box test
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed sed arcu mollis augue imperdiet rhonc.
POWER AND
THROUGHPUT

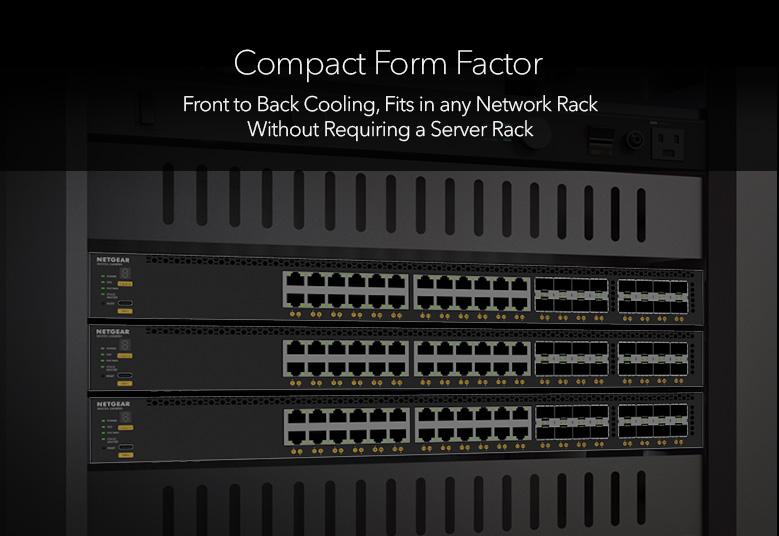

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
Fast, Easy Configuration
for AV Pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.
Focus on the Event Not the Fan Noise
Most models have quiet mode which greatly reduces fan noise.
Designed For AV Over IP Right out of the Box
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.
PRO AV FAMILY COMPARISON
USE CASE
SWITCH STACKING
PoE CAPABLE
PORT SPEEDS
AVB SUPPORT
AV WEB UI / AV TEMPLATES
AV DESIGN
(FRONT LED'S & REAR CABLING)

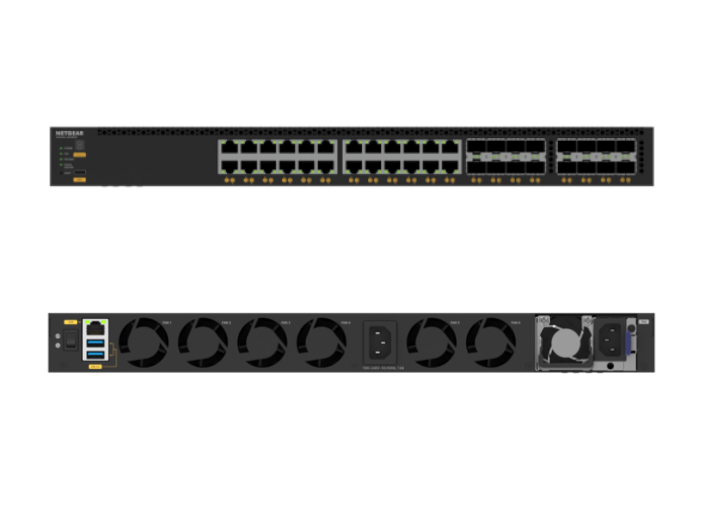

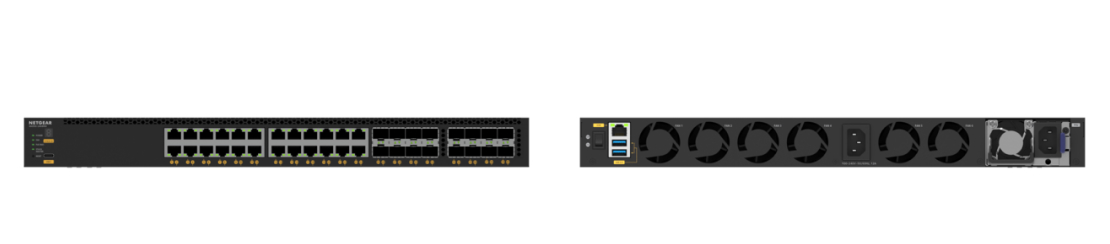

M4350-XSM4340V Technical Specifications
| M4350-24X8F8V (XSM4340V) | 1 |
| Power cord(s) | 1 |
| Console USB Type-C cable | 1 |
| Rack-mounting standard bracket set | 1 |
| Set of longer brackets for recessed mounting | 1 |
| Rubber footpads for tabletop installation | 4 |
| Installation guide | 1 |
| Width | 440mm |
| Depth | 400mm |
| Height | 43.2mm |
| Weight | 7.24kg (15.96lb) |
| Primary Port Speed | 10 Gigabit / Multi-Gig |
| Number of Ports | 40 (24x 10G/Multi-Gig PoE++, 8 x 10G SFP+, 8 x 25G SFP28) |
| PoE Ports / Budget | 24 PoE++ (90W/port), 290W Base, up to 1,770W Budget |
| IGMP Support | Enhanced (NETGEAR IGMP Plus™) |
| Jumbo Frame Support | Yes, up to 12kb |
| AVB Support | Yes, included |
| Acoustics | Quiet Mode 32.6dB@25ºC |
| Power Consumption | With PoE: 464W/1582.24Btu/hr Without PoE: 151.8W/476.65Btu/hr Standby without any port connection: 53.4W/167.68Btu/hr |
| PSU Compatible Models | APS600Wv3 APS1200Wv2 APS2000Wv2 |
NETGEAR Engage Controller | Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive. |
| This product is backed by NETGEAR limited lifetime hardware warranty. |
| Click here for coverage, availability and terms and conditions. |
| NETGEAR Support offers a customizable support experience based on your operational needs: |
|
|
|
|
|
|
|
| Support coverage in one, three, or five year contracts |
|
| Pro AV Information | Learn More |
| M350-24X8F8V Support | Learn More |
| AV Resource Center | Learn More |
