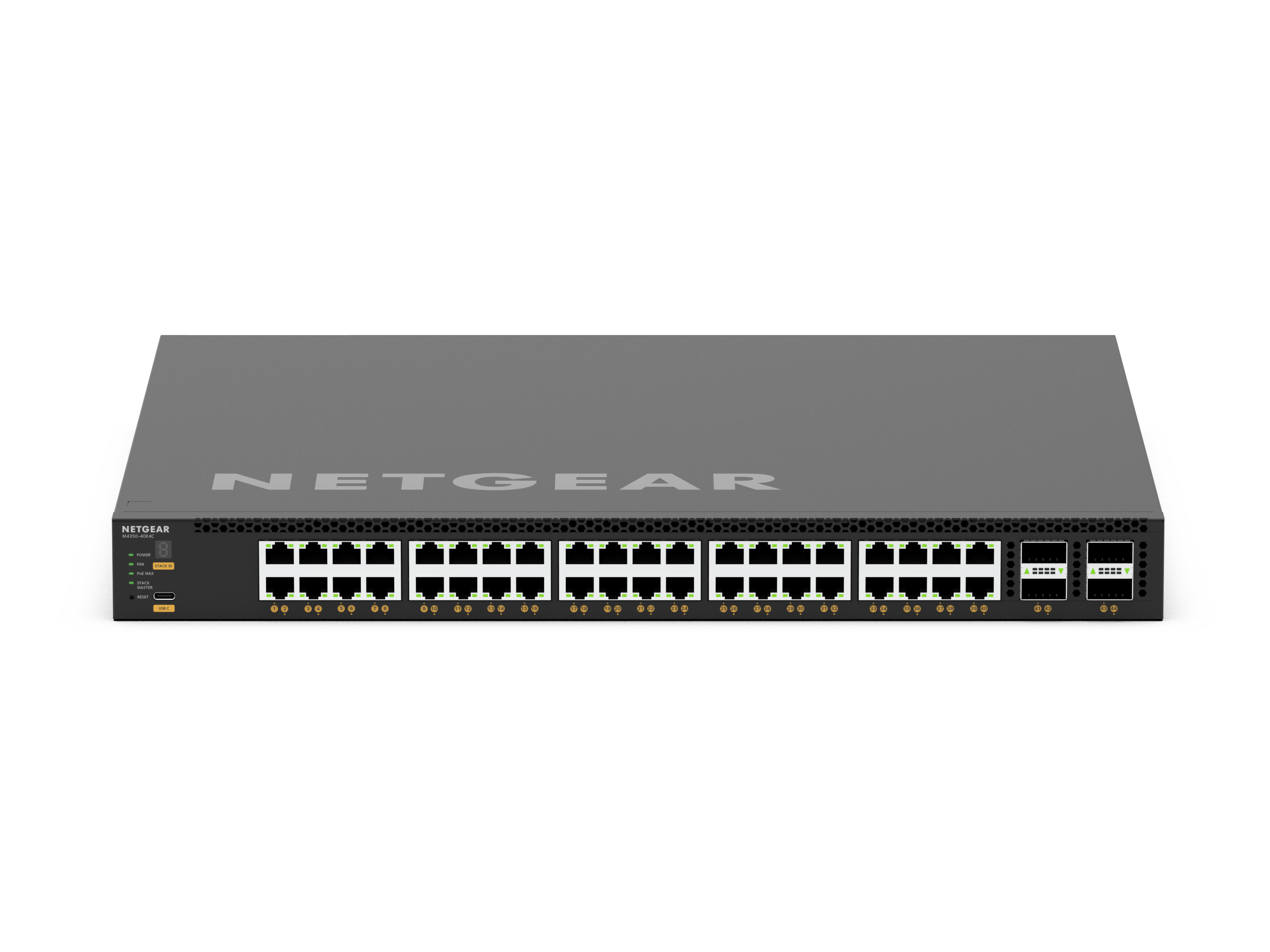

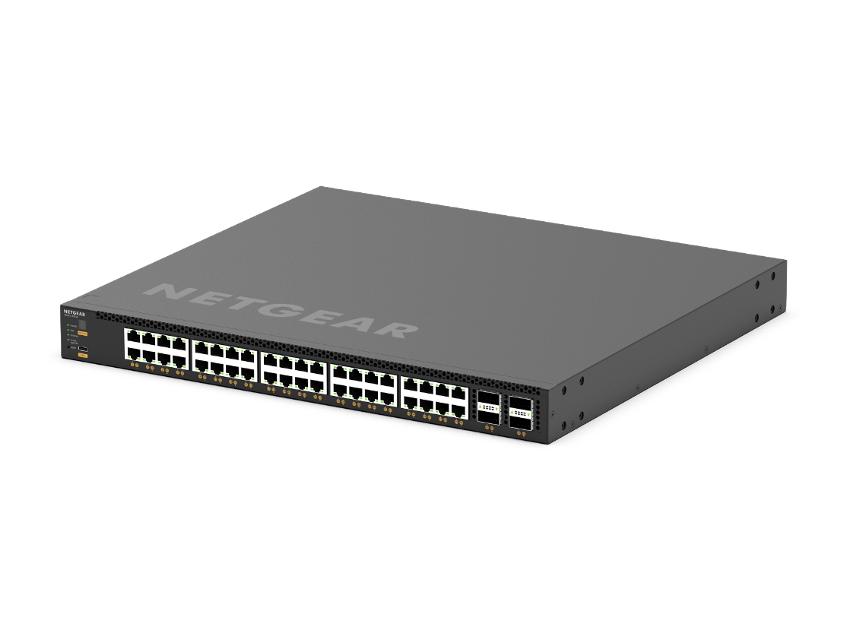

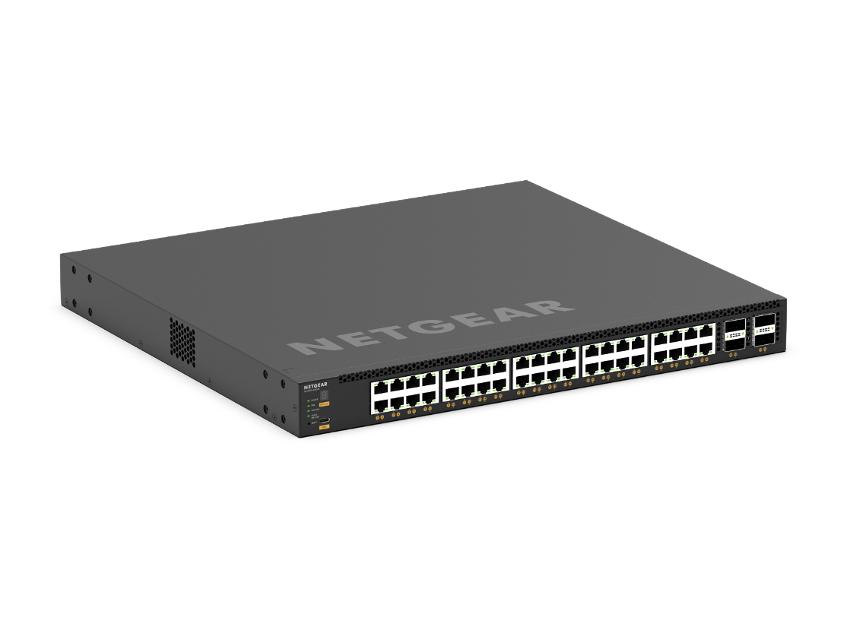

40x10G/Multi-Gig PoE++ (196W base, up to 1,676W) and 4xQSFP28 100G Managed Switch
1 / 8
Ports
- 44 Ports
Port Types
- 40 x 10G/Multi-Gig PoE++, 4 x 100G QSFP28
PoE Budget
- 40 PoE++ (90W/port)
- 196W Base
- up to 1
- 676W Budget
Details
- 40 10G/Multi-Gig PoE++ ports with 4 100GBASE-X QSFP28 uplinks
- 750W internal power supply providing 196W of PoE budget

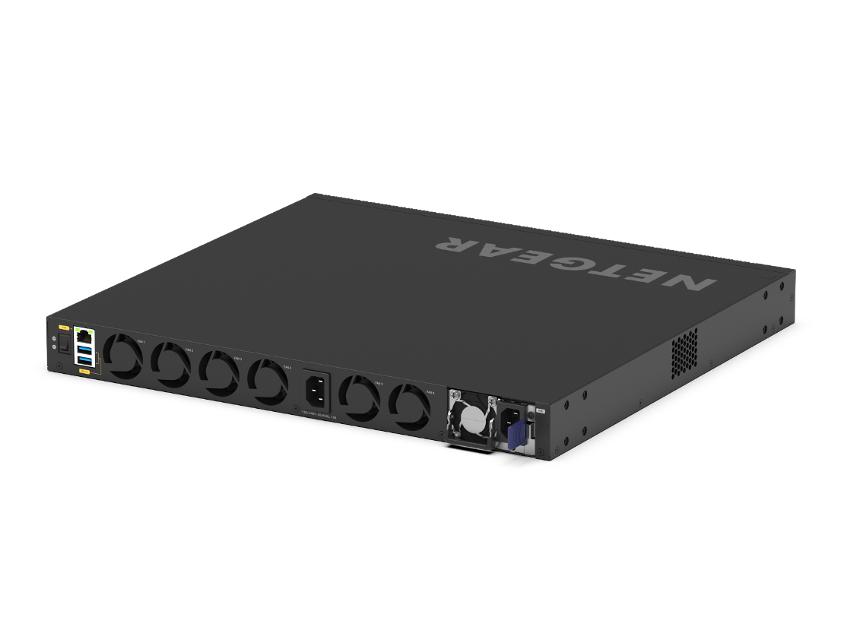

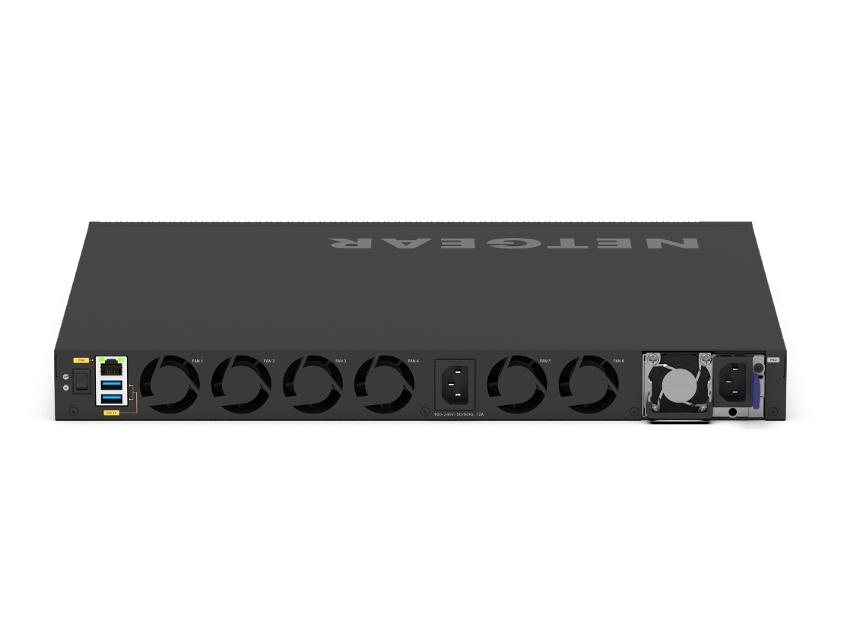

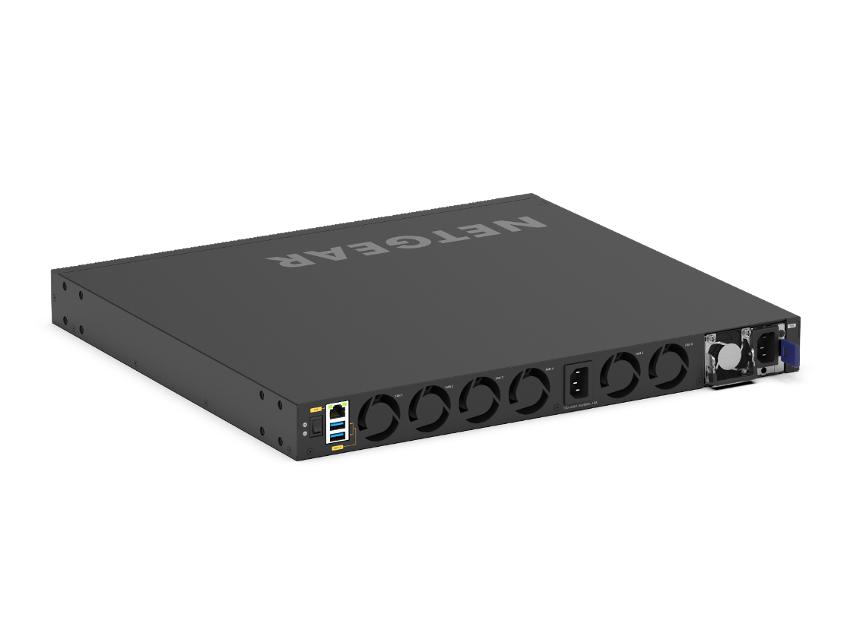

- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
- The PoE budget can reach 1,676W, when the redundant PoE budget remains 196W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
- Supports SMPTE ST 2110 for professional broadcast applications
- TAA compliant SKU is available. Contact your sales representative

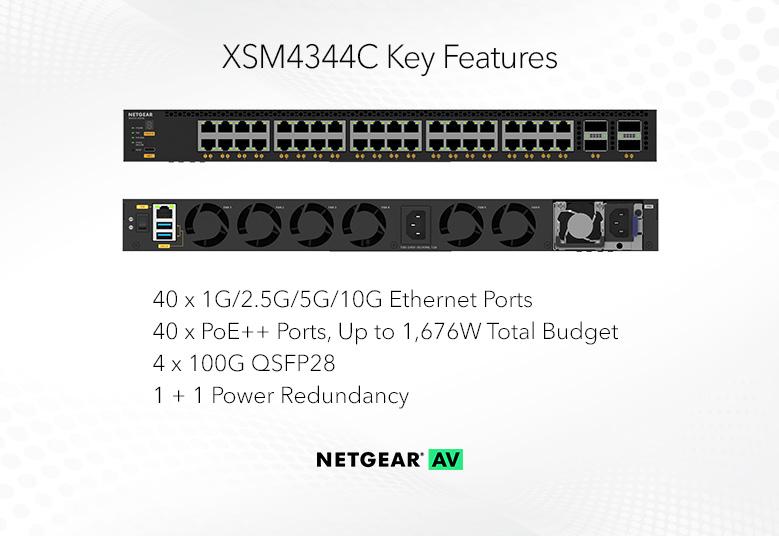

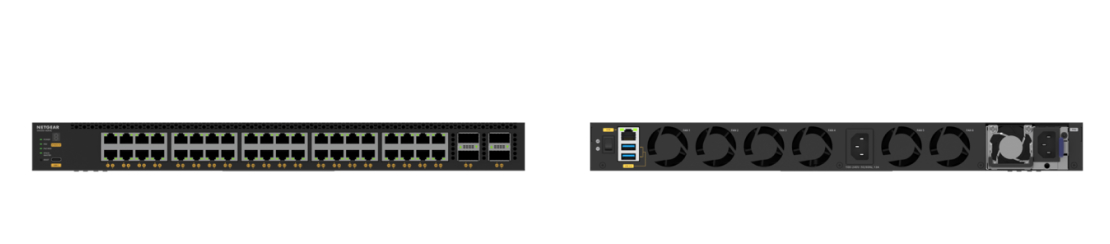

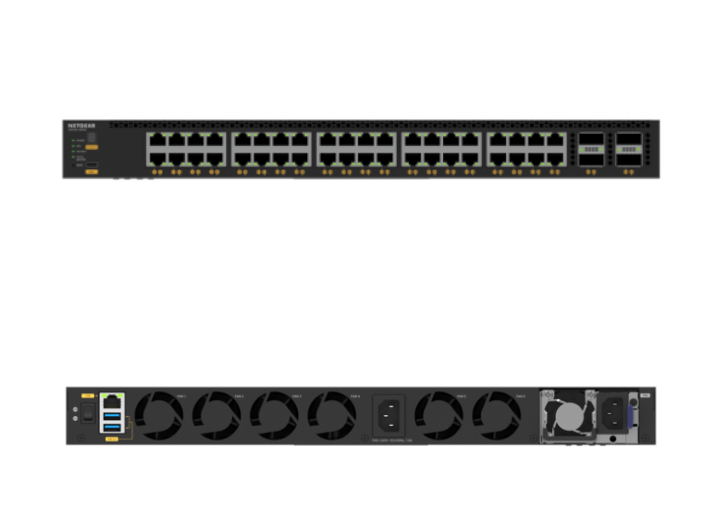

40x10G/Multi-Gig PoE++ (196W base, up to 1,676W) and 4xQSFP28 100G Managed Switch
XSM4344C
XSM4344C
Ports
- 44 Ports
Port Types
- 40 x 10G/Multi-Gig PoE++, 4 x 100G QSFP28
PoE Budget
- 40 PoE++ (90W/port)
- 196W Base
- up to 1
- 676W Budget
Details
- 40 10G/Multi-Gig PoE++ ports with 4 100GBASE-X QSFP28 uplinks
- 750W internal power supply providing 196W of PoE budget
- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
- The PoE budget can reach 1,676W, when the redundant PoE budget remains 196W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
- Supports SMPTE ST 2110 for professional broadcast applications
- TAA compliant SKU is available. Contact your sales representative
POWER AND
THROUGHPUT

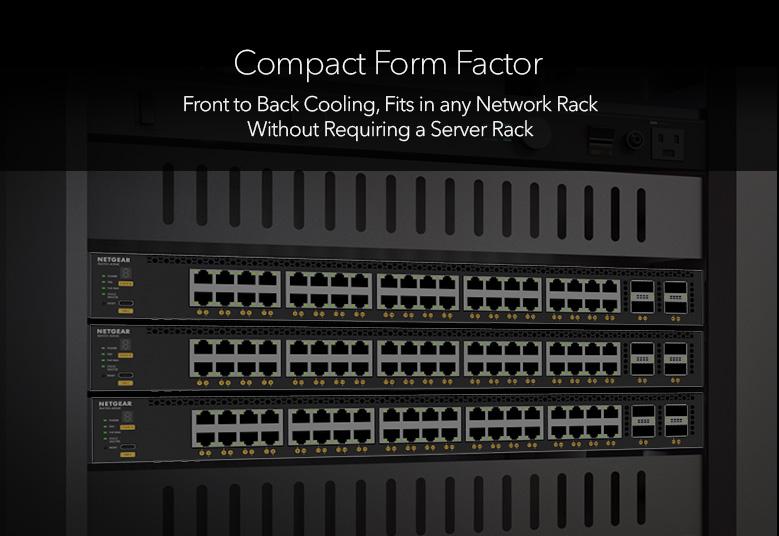

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
Fast, Easy Configuration
for AV Pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.
Focus on the Event Not the Fan Noise
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

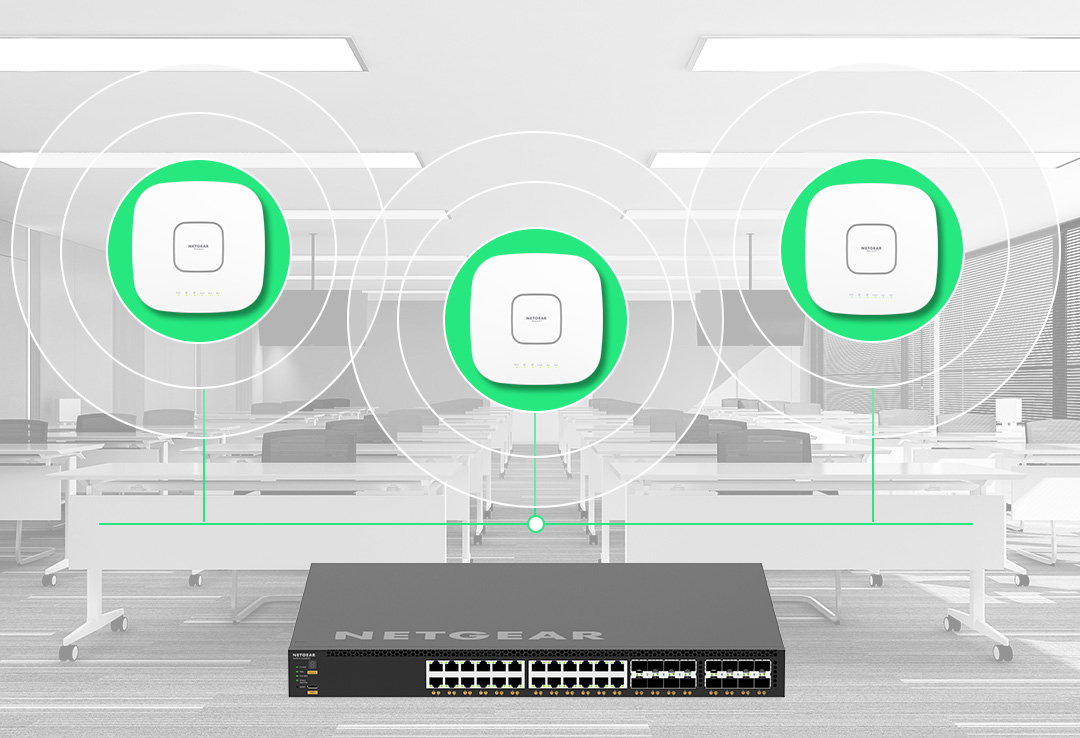

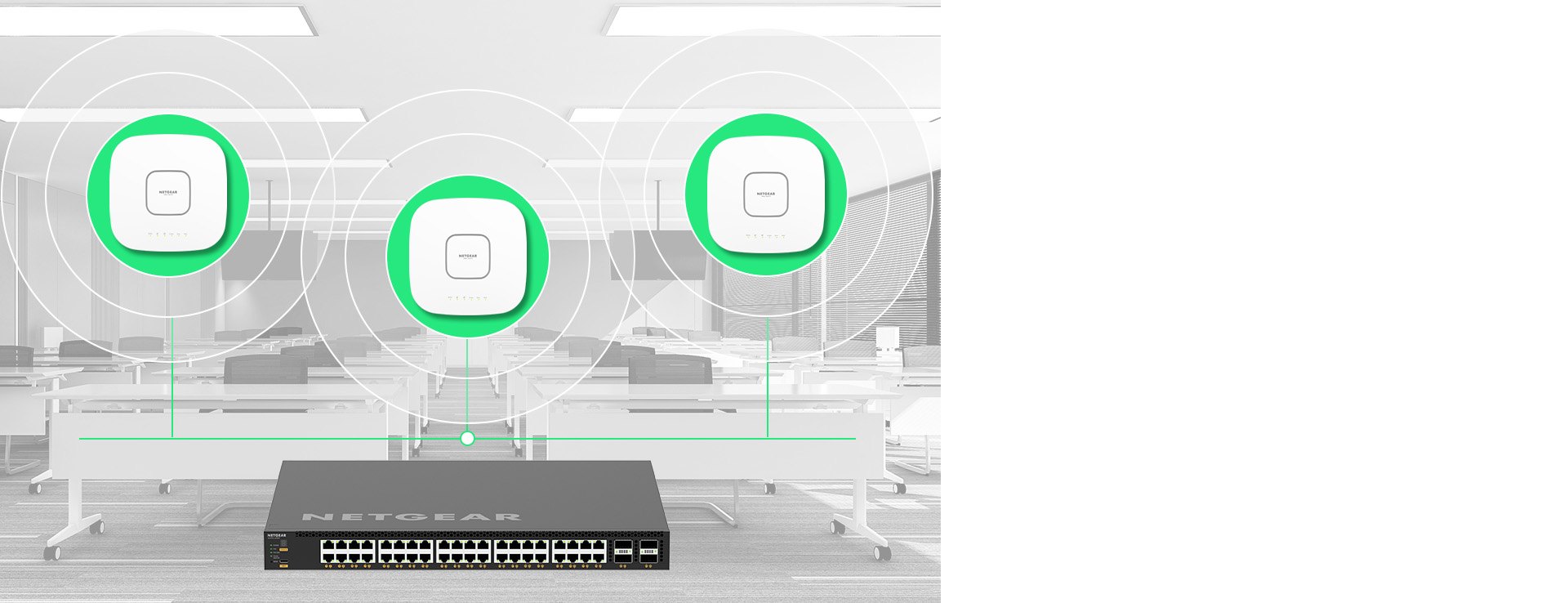

MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
PRO AV FAMILY COMPARISON
USE CASE
SWITCH STACKING
PoE CAPABLE
PORT SPEEDS
AVB SUPPORT
AV WEB UI / AV TEMPLATES
AV DESIGN
(FRONT LED'S & REAR CABLING)
