NETGEAR WiFi 6 AX4200 Dual-band Access Point with Multi-Gig PoE
NETGEAR WiFi 6 AX4200 Dual-band Access Point with Multi-Gig PoE
WAX220
1 / 3
Ports
- 1 Port
Port Types
- 1 x 2.5G port
Details
WAX220
Ports
- 1 Port
Port Types
- 1 x 2.5G port
Details
The most powerful WiFi ever
4x | 40% | 100% |
more capacity | increase in data throughput | backwards compatibility |
Features
LATEST BUSINESS WIFI
Upgrade to WIFi 6 with speeds of up to 4.2 Gbps for faster streaming, downloading, video conferencing, and more.
BUDGET FRIENDLY SOLUTION
The perfect WiFi 6 business solution for your small office, retail shop, conference room, or lobby.

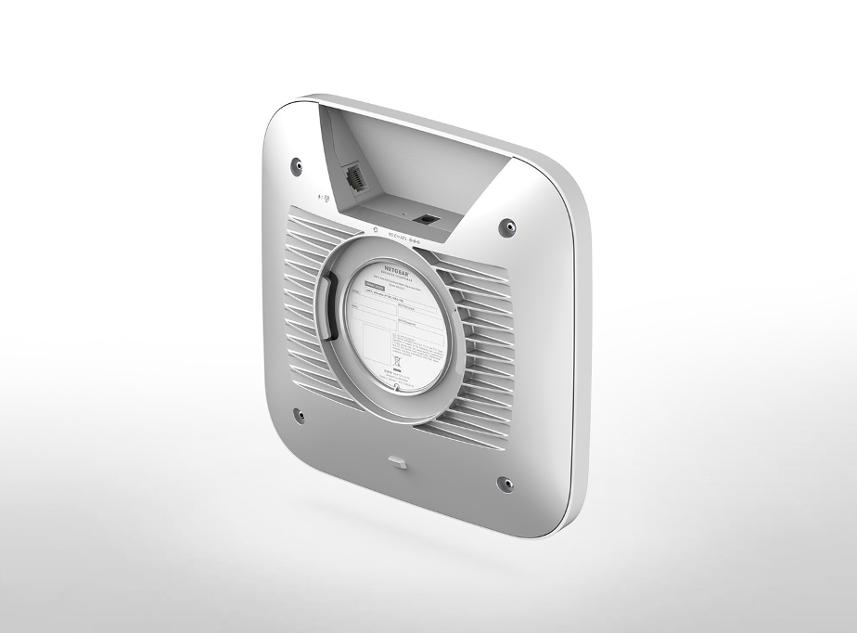

COMPACT WITH VERSATILE MOUNTING
Small size and easy to mount on a wall or ceiling make it ideal for a lobby or retail showroom where you want your Access Point to be discrete
SECURE & ISOLATED
4 unique SSID’s, WPA3 authentication, and a dedicated Ethernet connection isolate it from the rest of your office network
POWER OVER ETHERNET(PoE+) POWERED
Connect it to your router with a single Ethernet cable for both power and data, without complicated wiring, professional installation, or added IT equipment costs.
EASY DIY SET UP
Easy 10 minute configuration with an intuitive Web GUI. No need for professional installation or IT equipment cost.
We're Always Here to Help
Track and manage orders & register your products
Search through FAQs in our community forums
Check out our self-help tool or contact support
Technical Specifications
Dimensions (W x D x H) : | 7.71 x 7.71 x 1.74 in (196 x 196 x 44.4 mm) |
Weight : | 1.15lb (523g) |
Speed : | AX4200 |
Radio : | 5GHz: 4x4 20/40/80/160MHz |
| | 2.4GHz: 2x2 20/40MHz |
Theoretical Throughput : | 5GHz: 3.6Gbps |
| | 2.4GHz: 0.6Gbps |
Antenna Gain : | 5dBi (2.4GHz), 5dBi (5GHz) |
# of Max Users : | 256 |
# of Concurrent Devices : | 75 |
Coverage : | 2,000 sqft (185 sqm) |
Ideal Use : | Small and medium business, home office |
Ethernet port : | 1 x 2.5G port |
PoE : | Yes |
PoE Power Consumption : | 15W |
| | Local management |
Security : | WiFi Protected Access (WPA/WPA2/WPA3), MAC Address filtering, 4 SSID |
| | Hardware Limited Warranty 3 years |
| | Next-Business-Day (NBD) Replacement 5 years |
| | WAX220 Support |
| | WAX220 Wireless Access Point |
| | Ceiling / Wall mount kit |
| | Installation guide |
| | Warranty / Support information card |
