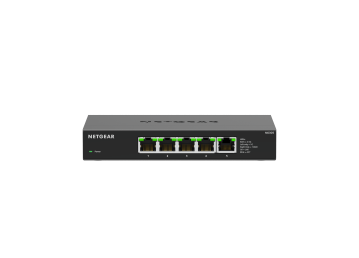

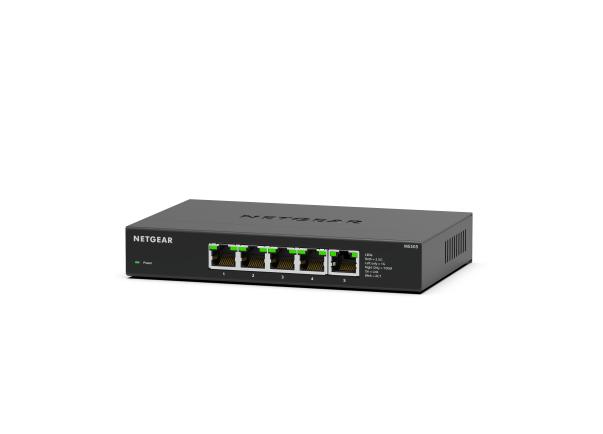

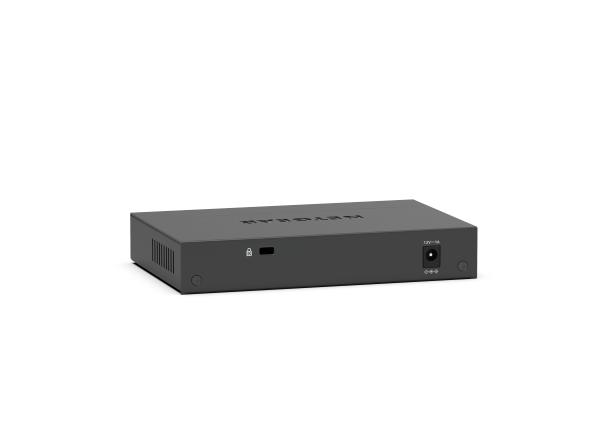

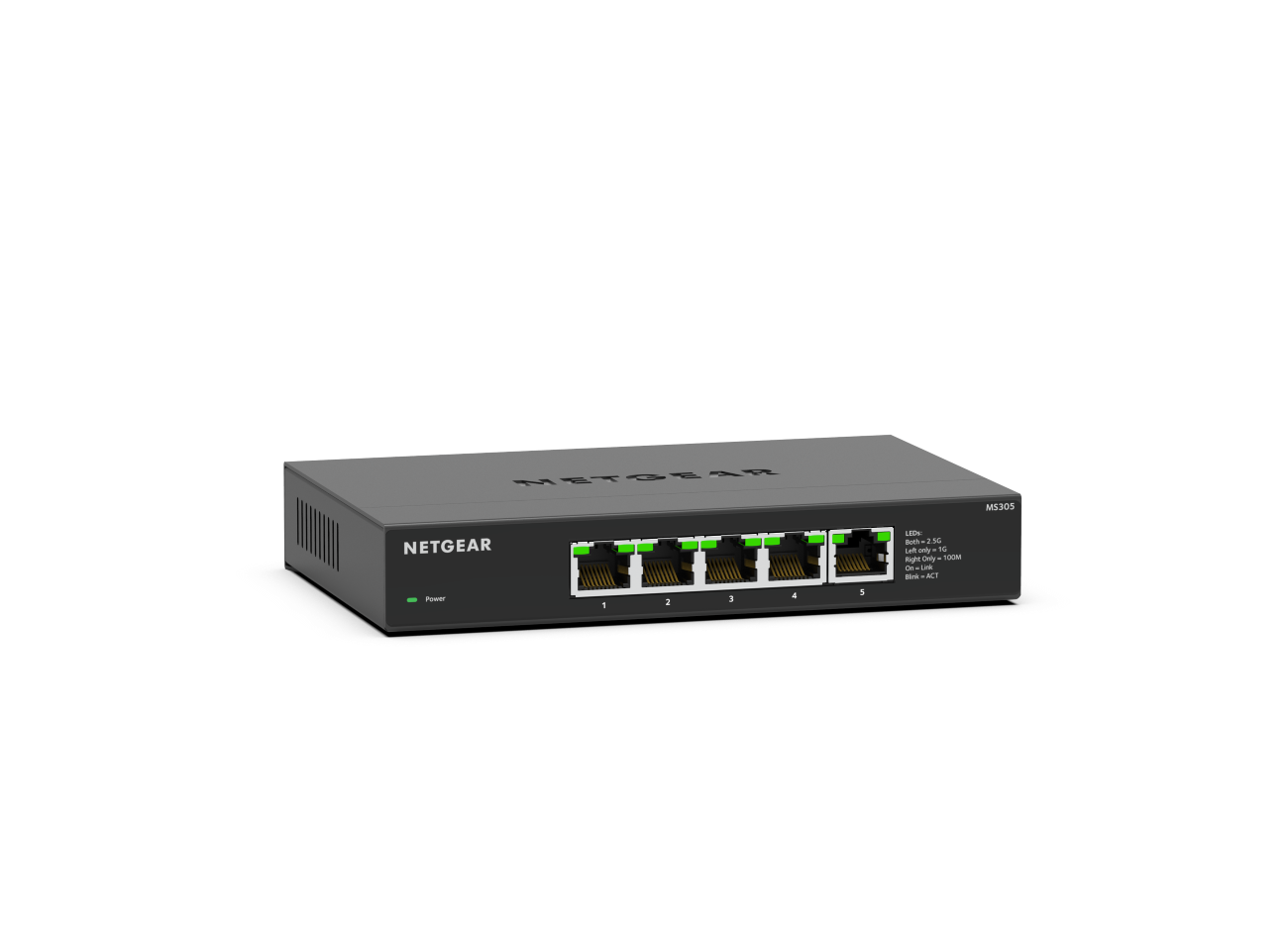

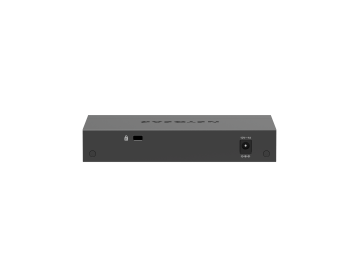

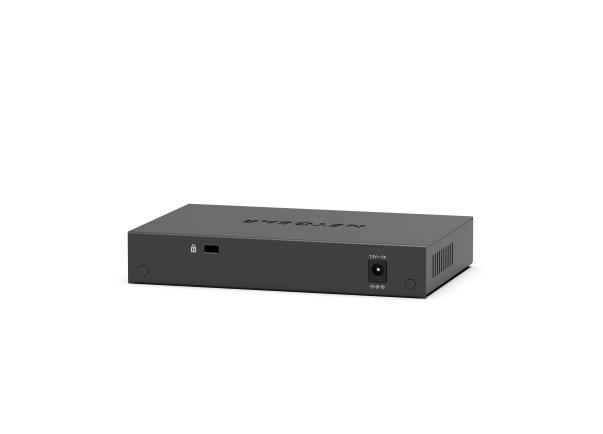

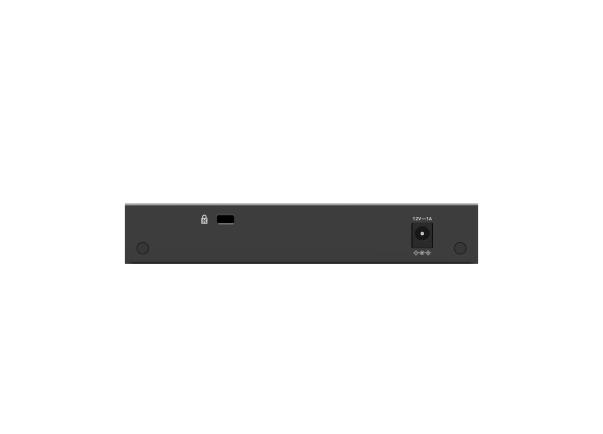

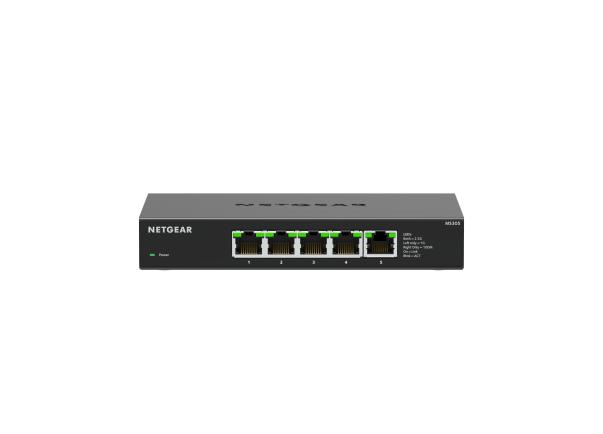

5-Port Multi-Gig Unmanaged 2.5gb Switch
5-Port Multi-Gig Unmanaged 2.5gb Switch
MS305
1 / 8
Ports
- 5 Ports
Port Types
- 5 x 1G/2.5G Ethernet RJ-45 Copper ports (100M/1G/2.5G)
Details
MS305
Ports
- 5 Ports
Port Types
- 5 x 1G/2.5G Ethernet RJ-45 Copper ports (100M/1G/2.5G)
Details

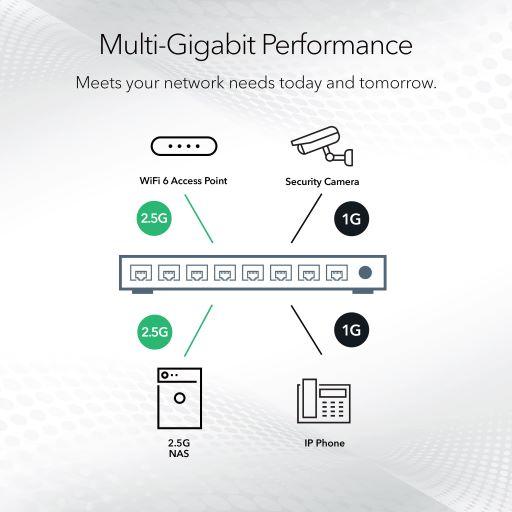

Simply Better Together
Combine your Multi-Gig switch with a WiFi Access Point to optimize your network for power and speed.
Features
RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

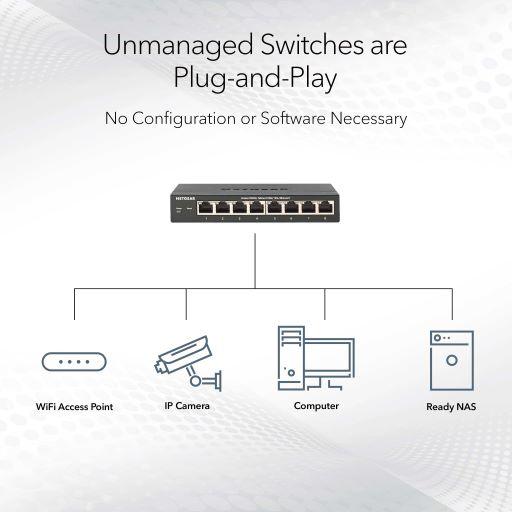

PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.
Technical Specifications
Dimensions (W x D x H) : | 158 x 101 x 29 mm (6.2 x 4.0 x 1.1 in) |
Weight : | 0.48 kg (1.06 lb) |
Speed : | 100Mbps/1G/2.5G |
Number of Ports : | 5 |
Energy Efficient Ethernet Support (IEEE 802.3az) : | Yes |
Jumbo Frame Support : | 9,720 bytes |
Queue WRR Ratio : | 1:3:5:7:8:10:12:15 |
MAC Table Size : | 16K |
Packet buffer size : | 1 MB |
IEEE 802.1p QoS : | Yes |
Max Power Consumption : | 9.24W |
Operating Temperature : | 0-40°C (32°F - 104°F) |
MTBF (hours) : | 1,401,743 hrs (159.91 years) |
FCC Class : | Class B |
Fans : | 0 |
Acoustic Noise Level @25C : | Fanless |
Warranty | This product is backed by NETGEAR limited lifetime hardware warranty. |
| Click here for coverage, availability and terms and conditions. |
Support | NETGEAR Support offers a customizable support experience based on your operational needs: |
| |
|
|
|
| Support coverage in one, three, or five year contracts |
