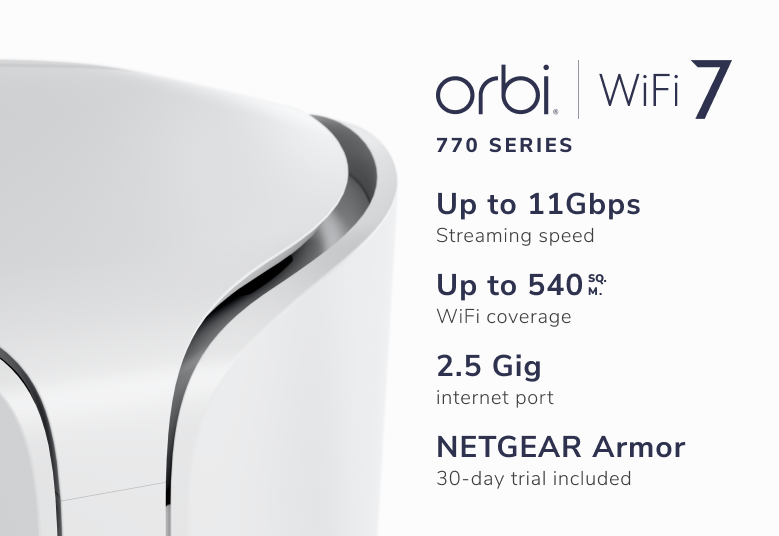

Orbi 770 Series Tri-Band WiFi 7 Mesh 3-Pack
WiFi 7 technology
up to 11 Gbit/s
up to 540 m²
up to 100 simultaneous devices
Orbi 770 Series Tri-Band WiFi 7 Mesh 3-Pack
1 / 9
Orbi 770 Series Tri-Band WiFi 7 Mesh 3-Pack
WiFi 7 technology
up to 11 Gbit/s
up to 540 m²
up to 100 simultaneous devices
WiFi 7 technology
up to 11 Gbit/s
up to 540 m²
up to 100 simultaneous devices
WiFi 7 for your whole household.
When everyone is streaming, gaming and working from home at once, Orbi 770 keeps your household moving with speeds up to 11 Gbps, coverage up to 540 m² and built-in network security.
Strong WiFi across more space.
A router and satellites extend consistent performance to the far corners of the house, through walls and across floors. Covers up to 540 m²
Protection for the whole household.
Advanced Router Protection helps defend against emerging threats, while WPA3 encryption and automatic updates help protect your WiFi connections.
More room for everyone online.
From morning calls to evening streaming, the whole household keeps moving. Up to 11 Gbps, and up to 100 devices.
800+ homes already
made this decision.
Real reviews from verified owners - the ratings buyers like you leave after living with it.
Everything you need to get started.
Unbox, plug in, and follow the app. No extra purchases required.
TECH SPECS
Product specifications.
The numbers that matter - and what they mean for your home.
ROUTER VS. SATELLITE
Each unit is a full tri-band WiFi 7 radio - the difference is the ports. (Your 3-piece set: 1 router + 2 satellites.)
| SPEC | Router RBE771 · ×1 | Satellite RBE770 · ×2 |
|---|---|---|
| WiFi coverage | Up to 180 m² | Up to 180 m² |
| WiFi speed | Up to 11 Gbps | Up to 11 Gbps |
| Bands | 2.4 + 5 + 6 GHz | 2.4 + 5 + 6 GHz |
| Processor | Quad-core 1.5 GHz | Quad-core 1.5 GHz |
| Ethernet ports | (1) 2.5 Gig WAN | 2× 2.5G LAN |
Full Specifications
Orbi WiFi 7 Router (RBE771) | (1) |
Orbi WiFi 7 Satellites (RBE770) | (2) |
Ethernet cable | (1) |
Power adapters | (3) |
Quick Start Guide | (1) |
Height | 9.88 inches (251.2 mm) |
Width | 5.28 inches (134.2 mm) |
Depth | 3.95 inches (100.4 mm) |
Weight | 2.02 lbs (0.916 kg) |
Overall WiFi Coverage | Up to 540 m2 |
Requirements | High-speed Internet connection to existing modem or gateway |
ROUTER
WiFi Coverage | Up to 180 m2 |
Speed | BE110001 |
Simultaneous Tri-Band WiFi with enhanced backhaul | 6 GHz3 |
Processor | Quad-core 1.5 GHz processor |
Ports | One (1) 10/100/1000/2500 Mbps WAN port Three (3) 10/100/1000/2500 Mbps LAN ports Two (2) 10/100/1000/2500 Mbps Multi-Gig Ethernet LAN ports (each) |
SATELLITE
WiFi Coverage | Up to 180 m2 |
Speed | BE110001 |
Simultaneous Tri-Band WiFi with Enhanced Backhaul | 6 GHz3 |
Ports (Each) | (2) 10/100/1000/2500 Mbps Multi-Gig Ethernet LAN ports |
Orbi App: | For easy installation and management |
Separate WiFi Networks for secure access: | Main network for your connected home devices IoT network for your IoT devices Guest network for your guests |
Access Control: | Access Control helps to prevent rogue devices from connecting to your network |
WPA3: | Engineered with exceptional WPA3 encryption technology to enhance the security of the WiFi connection to your devices |
Automatic Firmware Updates: | Supports automatic firmware updates to help improve security and performance* |
VPN Support: | Supports VPN to remotely access your home network more securely |
NETGEAR Armor™ | With an optional NETGEAR Armor™ subscription, powered by Bitdefender®, enjoy enhanced security and privacy for your connected devices and personal data, at home and beyond, including real-time threat prevention, VPN, and more. |
NETGEAR limited warranty valid only if purchased from a NETGEAR authorized reseller and you register the device at https://my.netgear.com/register.aspx. | For warranty duration and details, click Learn More. |
Technical support is available at no charge for a specified period. | Learn More |
This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller.
* For the duration of software and cyber security updates, visit netgear.com/eos.
1 Maximum wireless signal rate derived from IEEE 802.11be specifications. Actual data throughput and wireless coverage will vary and be lowered by network, your country’s regulation, and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. To achieve maximum wireless/wired speed requires devices that use the latest wireless/wired standards and support maximum speeds.
2 Gigabit or multi-gig broadband plan required for Gigabit or Multi-Gig Internet speeds.
3 6 GHz band is limited to indoor range.
NETGEAR Armor™
With an optional NETGEAR Armor™ subscription, powered by Bitdefender®, enjoy enhanced security and privacy for your connected devices and personal data - at home and beyond - including real-time threat prevention, VPN, and more.
Things people ask before they buy.
Straight answers. No jargon.
Orbi 770 is a strong fit for medium to large or multi-storey homes. The 2-pack covers up to 360 m², while the 3-pack covers up to 540 m². Actual coverage varies based on your home's layout, walls and construction.
Choose the 2-pack for medium-size homes, with coverage up to 360 m². Choose the 3-pack for larger or multi-storey homes, with coverage up to 540 m². Actual coverage varies, and you can add a compatible Orbi 770 Series satellite later.
The app guides you through connecting the router, placing each satellite and creating your network. Most households can complete setup in minutes without networking expertise.
Orbi 770 replaces your router, not the modem or gateway that connects your home to your internet service. It works with most providers when connected to compatible equipment, and the app guides you through setup.
Yes. Tri-band WiFi 7 gives gaming, streaming and video calls room to run together, while 2.5 Gig Ethernet provides a fast wired option for a console or PC. Actual performance depends on your internet plan, device and network conditions.
Orbi 770 uses WiFi 7 Multi-Link Operation (MLO) across its tri-band design to help keep communication between the router and satellites running smoothly. A separate band used only for backhaul is exclusive to Orbi 970.
No. Advanced Router Protection, WPA3 encryption and automatic updates are included from setup. Optional NETGEAR Armor™, powered by Bitdefender, extends protection across connected devices, privacy and personal data. A free trial is included, and a paid subscription is optional after the trial.
Yes. WiFi 7 is backward compatible, so devices using earlier WiFi generations can still connect. WiFi 7 devices can use the newest capabilities, while speed and performance vary by device.
