Smart w/ optional Cloud (GS110TPv3) armor

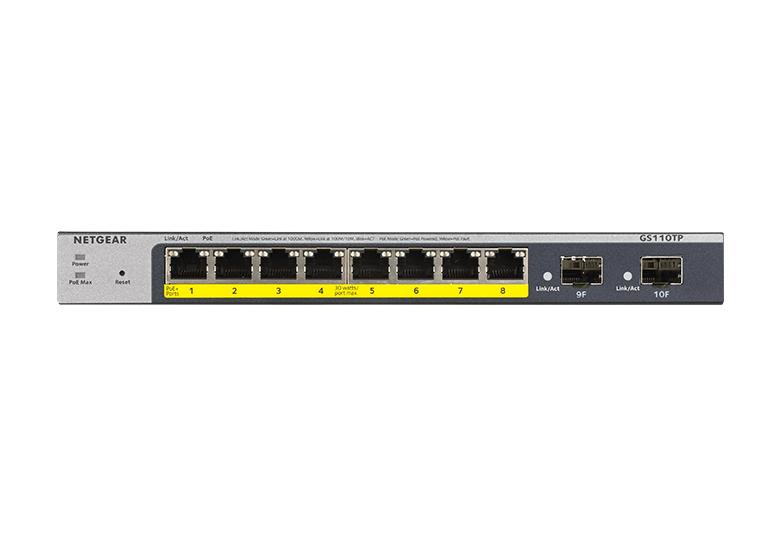

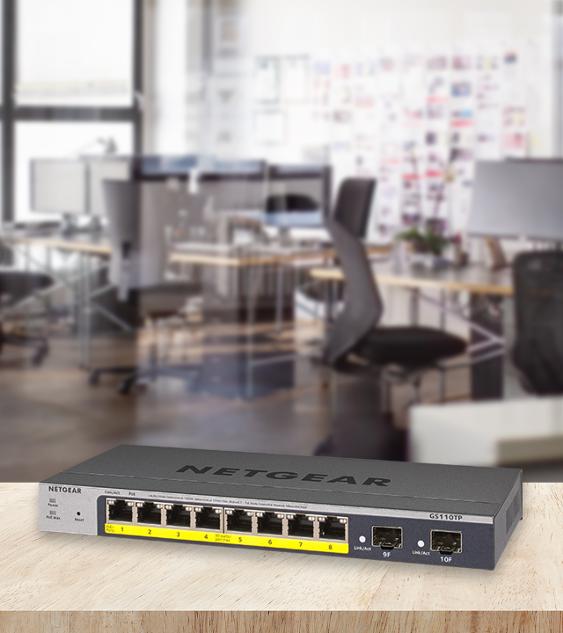

8-Port Gigabit PoE+ Ethernet Smart Switch with 2 SFP Ports and Cloud Management (55W) armor

Smart w/ optional Cloud (GS110TPv3)

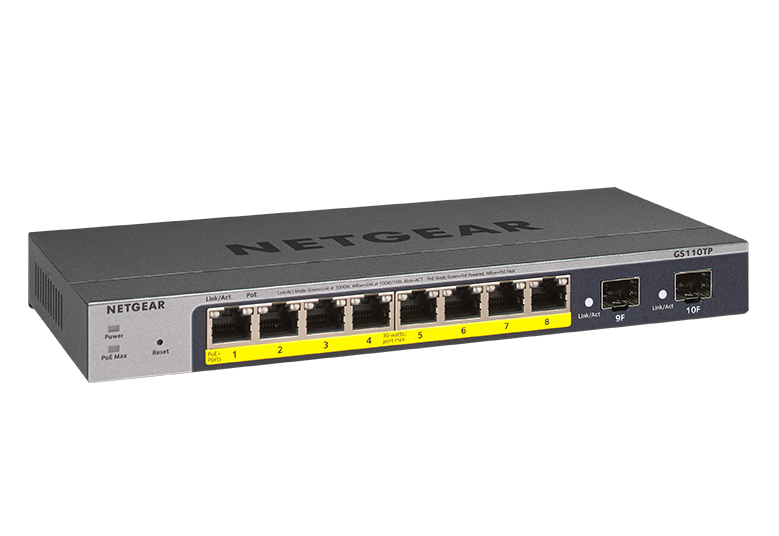

8-Port Gigabit PoE+ Ethernet Smart Switch with 2 SFP Ports and Cloud Management (55W)

Get switching now, remote/cloud management now or later

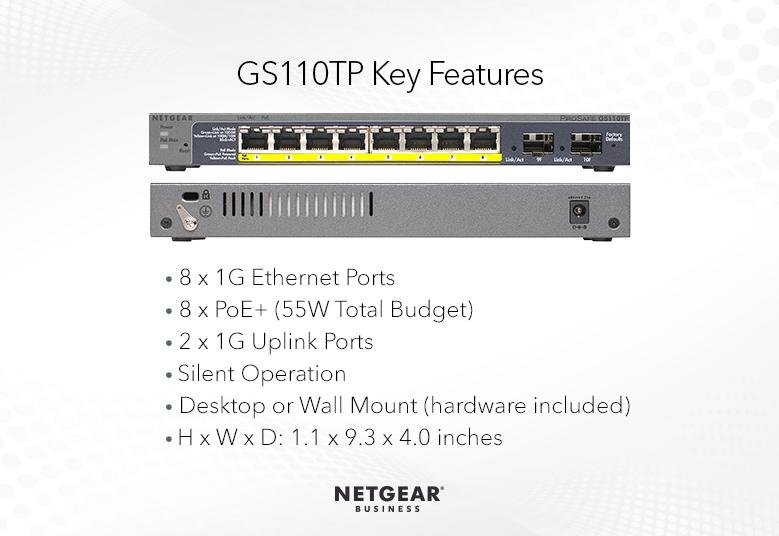

10-Port | 8xPoE+ 55W | 2xSFP | Local & Cloud Managed | GS110TPv3

10 端口 | PoE+ | 高功率 PoE++ | Insight |GS710TUP

整体网络解决方案可帮助您充分利用网络

从单一管理平台轻松部署，管理和监控NETGEAR Insight托管路由器，交换机和接入点。

了解更多信息

NETGEAR Insight 管理

随时随地，甚至跨多个位置对网络进行简单而强大的控制。NETGEAR Insight 可以处理您的网络，以便您可以专注于运营您的企业

LEARN MORE

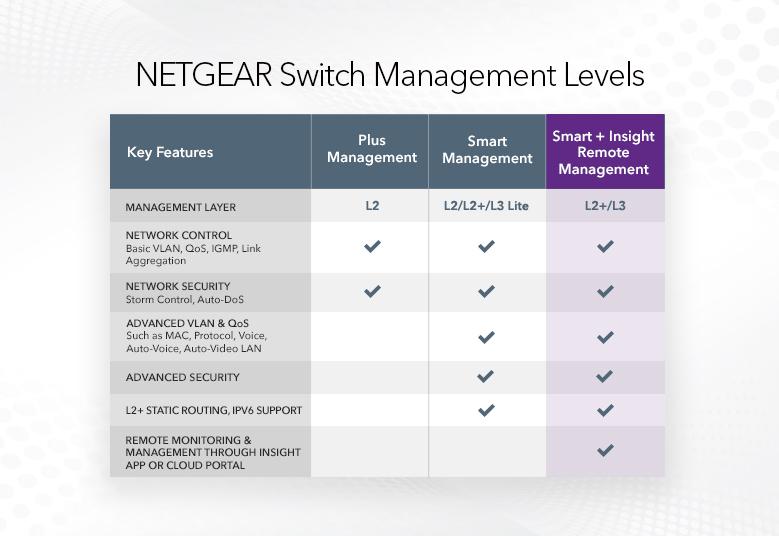

Switches with Essential L2/L2+ Features for SMB Networks

Powerful L2 and L2+/Layer 3 Lite features, great PoE functionality, and enhanced performance and usability optimized for network efficiency, operational cost savings, and ease of management. These switches are the ideal solution even for the most advanced small and medium organizations looking for the best combination of features, performance, and value.

Versatile and easy to manage

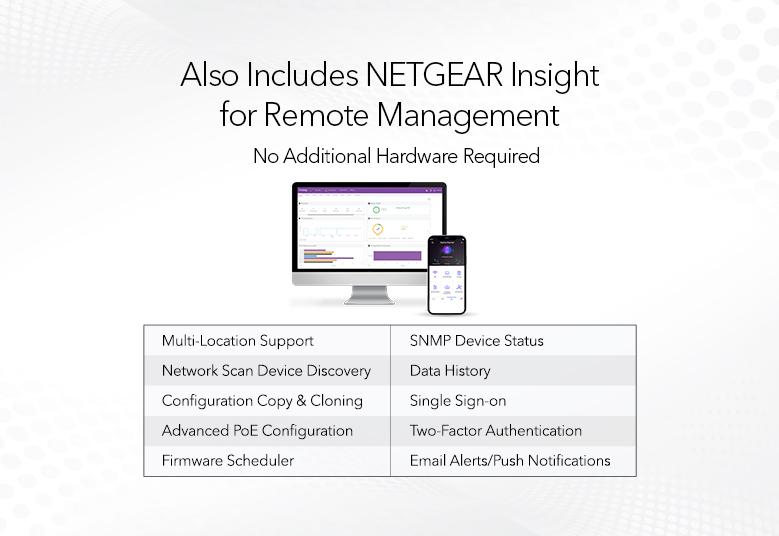

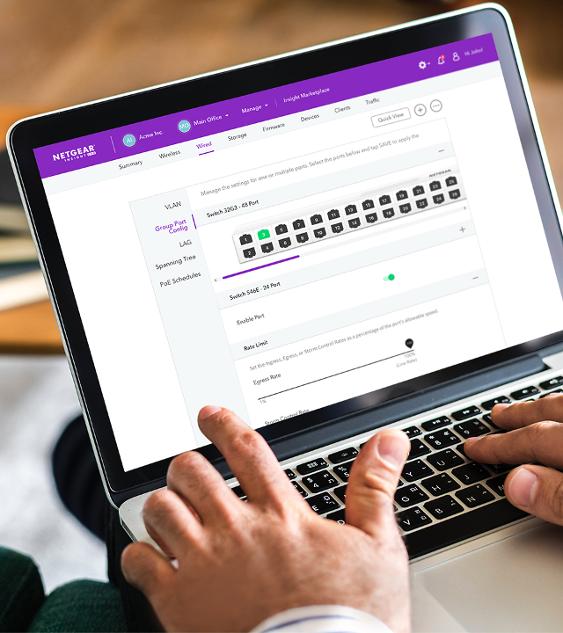

Smart switches with optional remote/cloud management are configurable and manageable anywhere, anytime. All you need is the NETGEAR Insight management solution for easy setup, monitoring and remote/cloud management of your Insight Managed Switches. Now you can setup, manage and monitor your network from anywhere in the world.

Get switching now, remote/cloud management now or later

Purchase your Smart switch now, manage it in local device GUI, decide later when you want to use remote/cloud management with Insight and activate Insight whenever you want

Build a Future-Proof Network with NETGEAR

Future-proof with features like: VLANs, Access Control List, L3 Lite static routing, Multicast Groups, IPv6, QoS, Energy Efficient Ethernet (IEEE 802.3az)

Features

Traffic Management

Auto Negotiation of speed and duplex modes

IEEE 802.3x Flow Control

Dynamic MAC address management

IEEE 802.1Q-based VLAN

Auto Voice VLAN

Auto Video VLAN (selected models)

VLAN routing (selected models)

QoS based on WRR, strict priority, or both

Port-based and IEEE 801.2p-based QoS

TCP/UDP-based QoS

DiffServ

IPv4 and IPv6-based QoS (selected models)

DSCP Support

Rate Limiting (ingress, or egress)

Link Aggregation and LACP

Switch Management

Insight mobile app or Insight Cloud Portal

Web browser-based management GUI

Smart Control Center Software for multi-switch management

IP Access List

IPv6 Management

Configurable Management VLAN

SNMP v1/v2c and v3

Standard MIBs (RFC1213, RFC1643, and RFC1493)

RMON group 1, 2, 3, 9

Firmware Upgrade through Smart Control Center (TFTP)

Firmware download (to switch) and upload (to server) through TFTP/HTTP

Configuration and Image Upload (to PC) through HTTP

Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)

Memory & FLASH log

Syslog (server)

System password protection

Security

MAC lockdown

MAC lockdown by number of MACs

IEEE 802.1x port authentication

Dynamic VLAN Assignment

Guest VLAN

TACACS+

3 HTTPS /SSL versions

TLS session

Trusted MAC

IPv4, L4-based Access Control List (ACL)

IPv6-based ACL (selected models)

Multicast Efficiency

IGMP snooping, v1, v2 and v3

IGMP Snooping querier

Blocking of unknown multicast traffic

MLD snooping

Spanning Tree, Routing and Stacking

IEEE 802.1D, IEEE 802.1w RSTP and MSTP

Option to enable/disable BPDU flooding when STP is disabled

Static routing with 32 static routes (Selected models)

Hosted ARP table size of 512 (Selected models)

Reliability, Performance and Troubleshooting

Port mirroring both on ingress and egress traffic

Jumbo frame support

Broadcast Storm control

Cable diagnostics

Loop Detection

DoS Prevention

IEEE 802.1ab LLDP

LLDP-MED

Dual Image

SNTP

Option to enable/disable the flooding of EAPOL when 802.1x is disabled

Protected ports

DNS client

DHCP clients

DHCP snooping

Ping and traceroute client

Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)

Product Datasheet

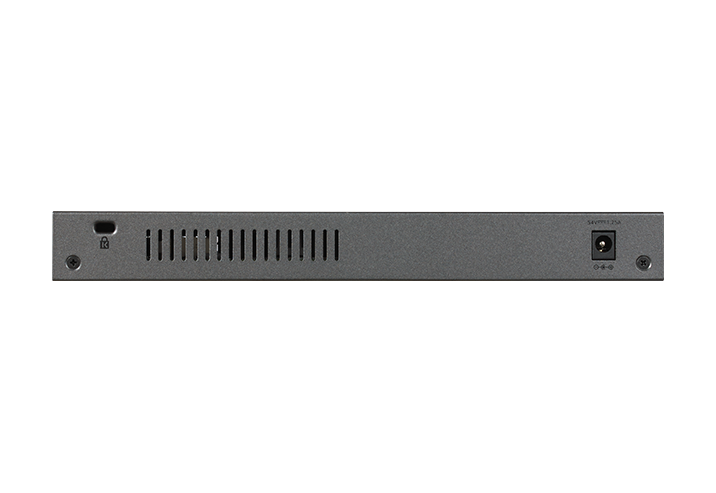

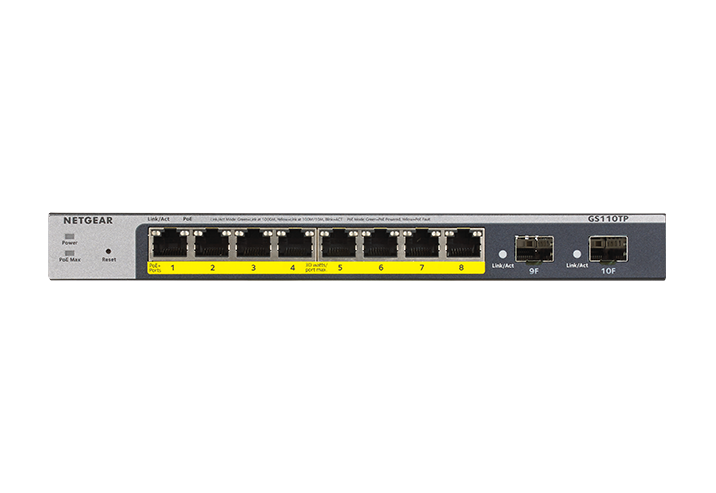

Technical Specifications
