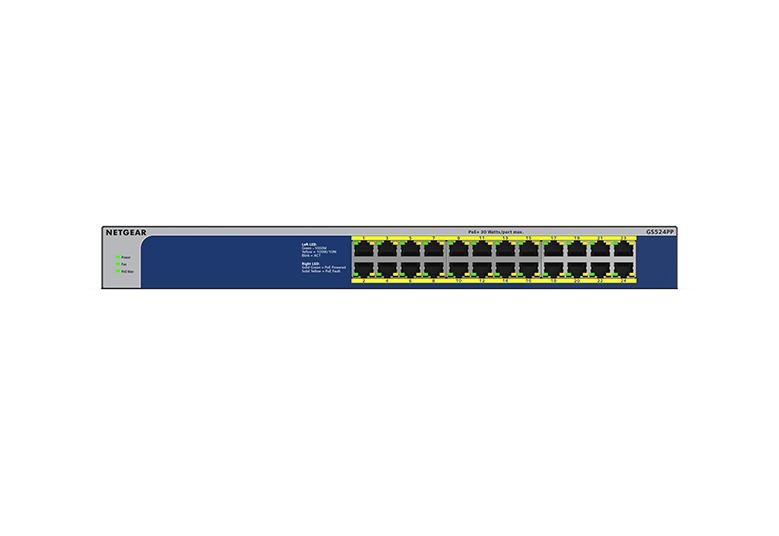

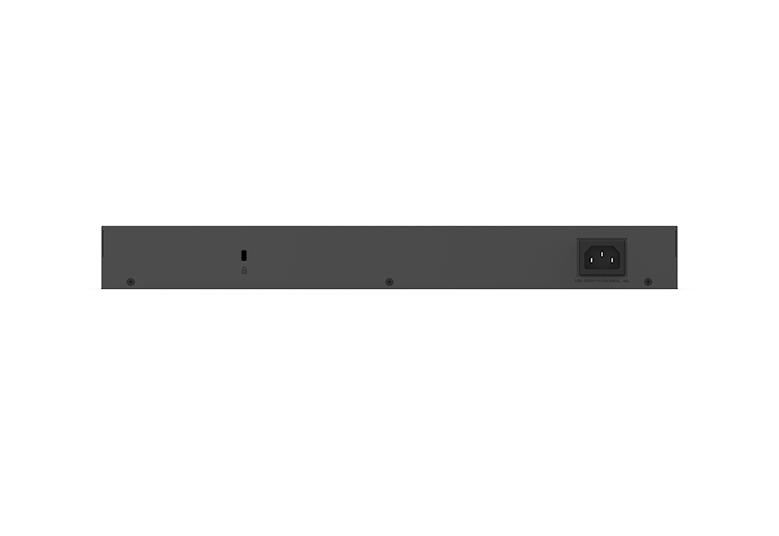

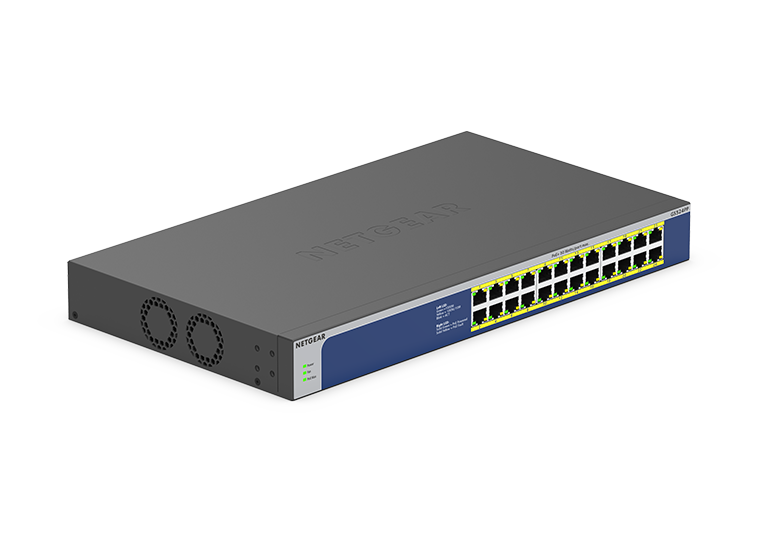

Gigabit Unmanaged Switch Series (GS524PP)
24-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch (300W)
Gigabit Unmanaged Switch Series (GS524PP)
24-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch (300W)
Simple plug-and-play, with more than enough to power the entire network. 24 high-power PoE+ ports with a large budget to keep your devices always-ready.
Features
ETHERNET PORT CONFIGURATION:
16 Gigabit ports
PLUG-AND-PLAY:
Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE:
Non-blocking switching architecture for maximum throughput at wire speed
POWER-OVER-ETHERNET:
24 PoE+ ports with 300W total power budget to power wireless AP, IP Cameras, IP Phones and much more
POWER AUTO-BALANCE AND ALLOCATION:
NETGEAR's unique PoE technology automatically balances the PoE power, delivering exactly what each device needs
SILENT OPERATION:
The fanless design means zero added noise wherever its located, making it ideal for your home or business environment
ENERGY EFFICIENT:
Designed to optimize power usage lowering its cost to operate

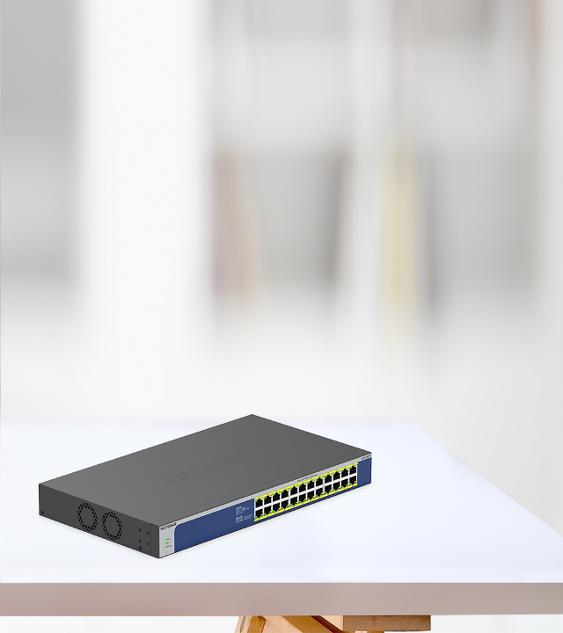

RUGGED METAL CASING:
Durable desktop case for longevity
VERSATILE MOUNTING OPTIONS:
Supports desktop or rackmount placement, and includes all mounting hardware in the box
STANDARDS-BASED DESIGN:
Ensure interoperability with any standards-based PDs

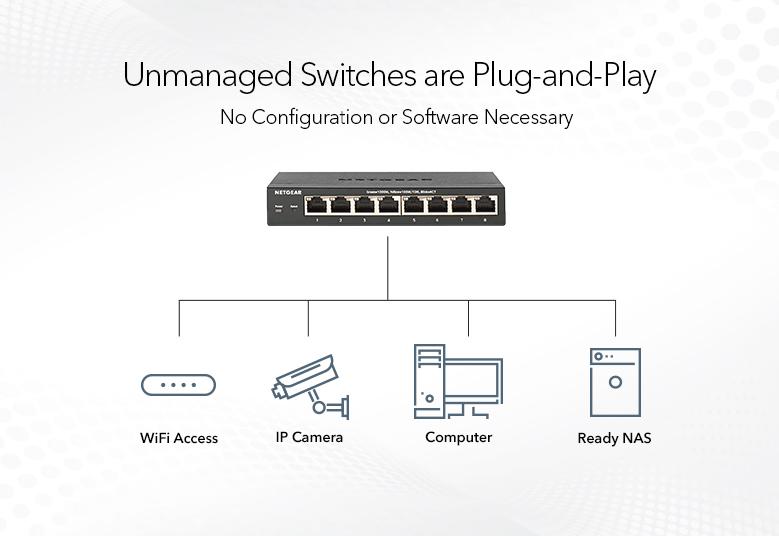

Instant Networking
Plug-and-play setup, get reliable and secure Internet connectivity immediately.

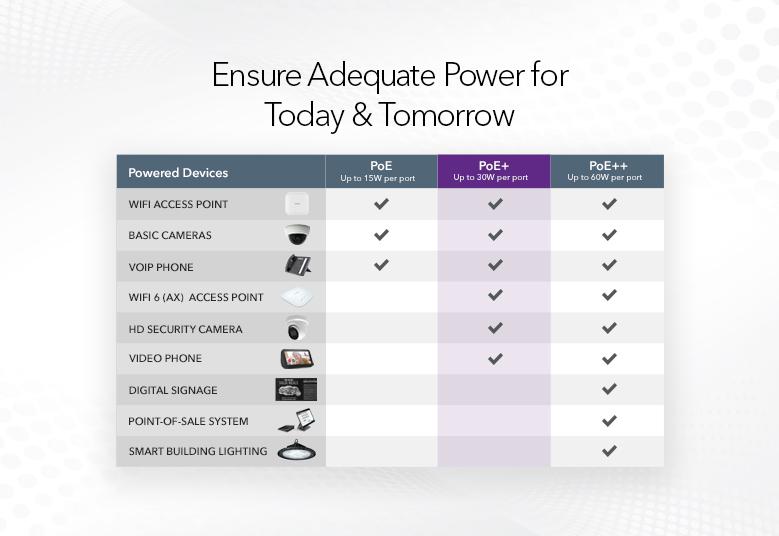

Convenient Power-over-Ethernet
One cable for both power and connectivity. 24 PoE+ ports with 300W total power budget. 30W per port.
Power Efficient
Each port uses only the power it needs thanks to auto-balancing.
Designed for Zero-Noise Operation
Passively cooled fanless design to protect your business environment.

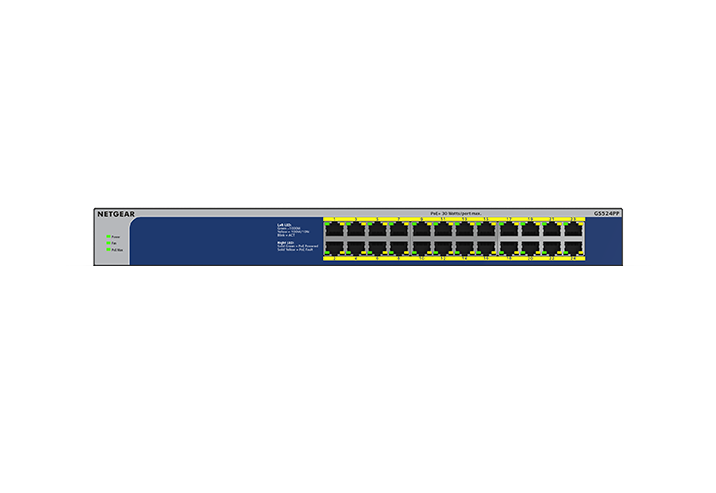

Technical Specifications
- Dimensions: 390 x 220 x 43 mm (15.4 in. x 8.7 in. x 1.7 in.)
- Weight: 2.89kg (6.37 lb)
- Speed : Gigabit
- Number of Ports : 24
- Number of PoE+ Ports : 24 PoE+ ports, up to 30W per port
- PoE Budget : 300W
- Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
- Jumbo Frame Support : 9,216 bytes
- MAC Table Size : 8K
- Packet buffer size : 192 KB
- IEEE 802.1p QoS : Yes
- Max Power Consumption : 359.5W / 12.9W
- Fans : 2
- Operating Temperature : 0° to 40°C (32° to 104°F)
- MTBF (hours) : 1,457,063 hrs
- FCC Class : Class A
- Warranty: This product is backed by a NETGEAR Limited Lifetime Hardware Warranty. This product’s warranty is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies—not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details.
