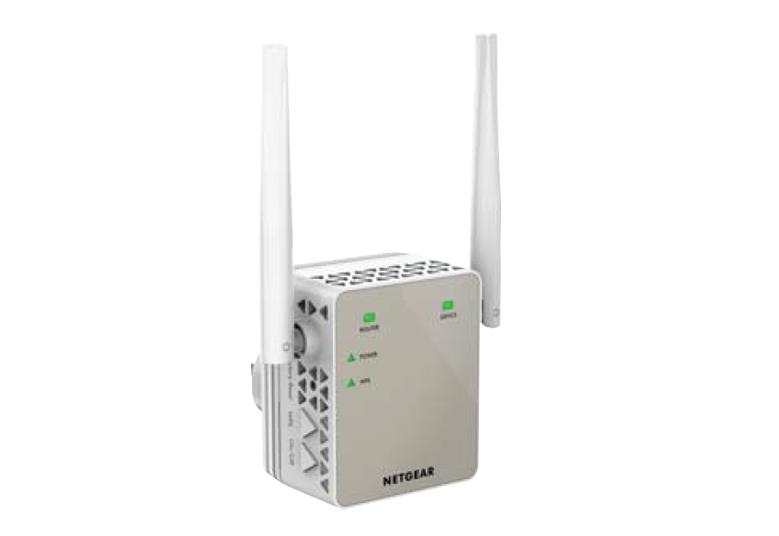

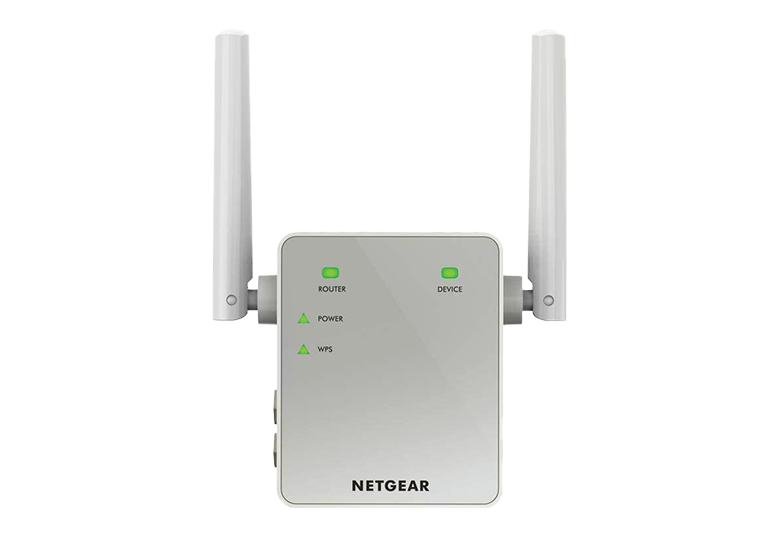

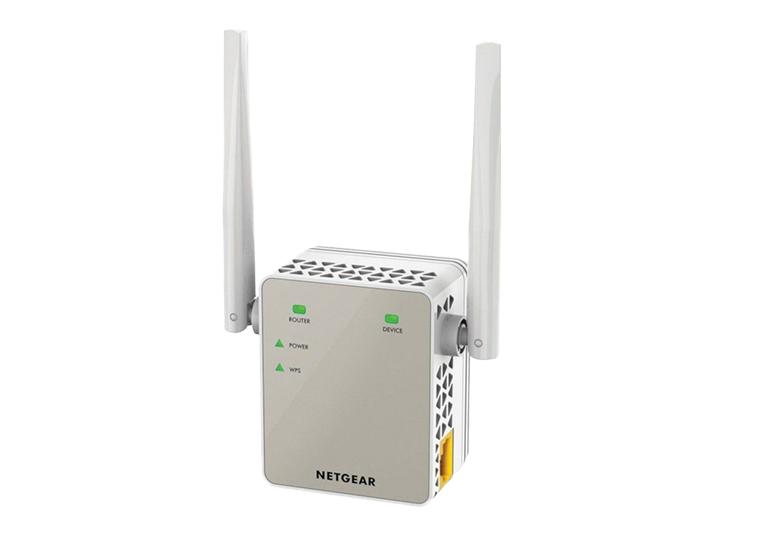

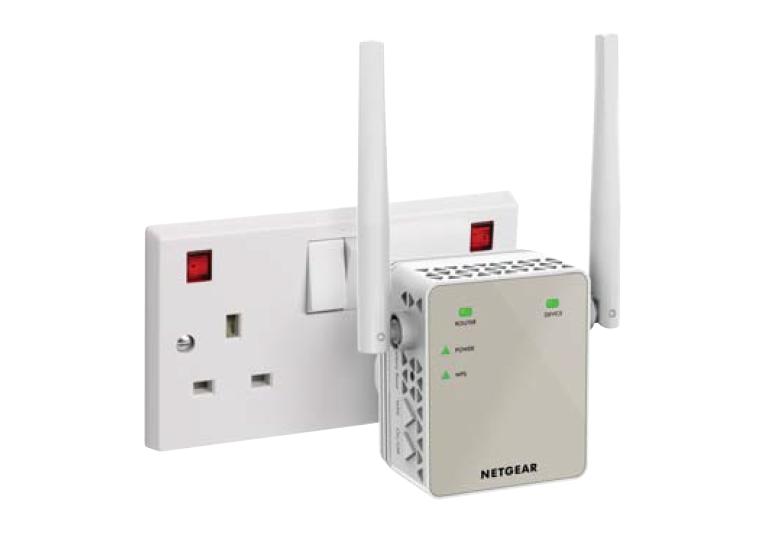

Dual-band WiFi Range Extender - Essentials Edition, 1.2Gbps, Wall-plug, External Antenna

Boost your existing network range, delivering AC dual band with WiFi up to 1200 Mbps. The booster is small & discreet, easily blending into your home decor. It works with any standard WiFi router and is ideal for HD video streaming and gaming.

WiFi 5 technology

up to 1.2 Gbps

1 / 5

WiFi 5 technology

up to 1.2 Gbps

WiFi 5 technology

up to 1.2 Gbps

Model Number

EX6110, up to 1.2 Gbps

EX6120, up to 1.2 Gbps

Quantity:

Find a Retailer

Features

Simultaneous Dual Band WiFi

Extend 2.4 & 5GHz WiFi up to 1200 Mbps & reduce interference

FastLane™ Technology

Use both WiFi bands to establish one high speed connection; ideal for HD streaming & gaming

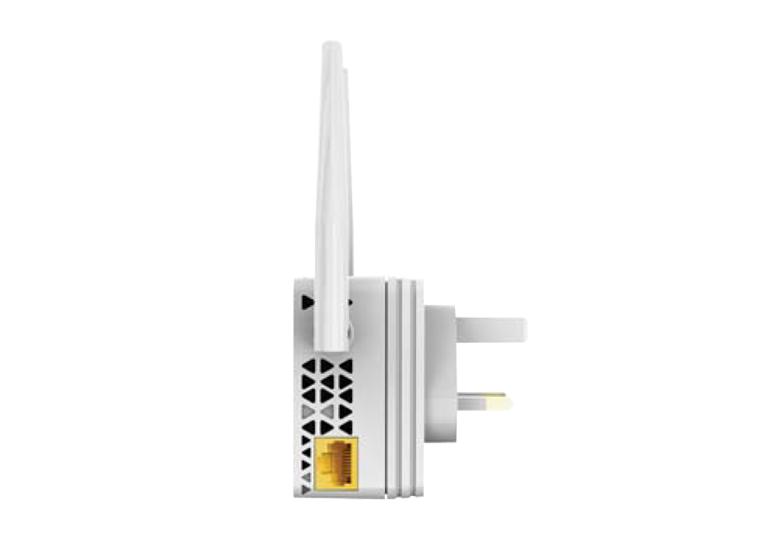

Ethernet Port

Connect a wired device like a game console or a smart TV to your WiFi network

External Antennas

For better WiFi coverage

Two WiFi Modes

Extend existing WiFi connection or create a new AC WiFi access point

Easy Setup

Setup with a push of the button

Product Datasheet

Technical Specifications

Dimensions	55.17 x 67.17 x 39 mm (2.17 x 2.64 x 1.54 in)
Weight	130 g (0.29 lb)

WiFi Technology	802.11ac
WiFi Performance	AC1200 (300 Mbps+900 Mbps)^†
WiFi Band	Dual Band 2.4 & 5GHz
Ports	One (1) 10/100 Mbps Fast Ethernet port with auto-sensing technology
Key Features	Dual band WiFi up to 1200 Mbps
	High-power external antennas for better performance
	Two WiFi modes to extend your existing WiFi connection or create a new WiFi access point
	FastLane Technology uses both WiFi bands to establish one super high-speed connection
Security	WiFi Protected Access® (WPA/WPA2-PSK) and WEP
System Requirements	2.4 and/or 5GHz 802.11ac & a/b/g/n wireless router or gateway
	Microsoft^® Internet Explorer 8.0, Firefox^® 20 or Safari^® 5.1 or Google Chrome™ 25.0 browsers or higher

Warranty	This product is backed by a NETGEAR limited 1-year Hardware Warranty.
Support	24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
	Support
	Video for set up of NETGEAR AC Extender with WPS Button
	Extender Setup How To
	Extender Quick Setup
	Extender FAQs
Footnotes	¹Maximum wireless signal rate derived from IEEE 802.11specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 1,200 Mbps wireless speeds achieved when connecting to other 802.11ac 1,200 Mbps devices.
