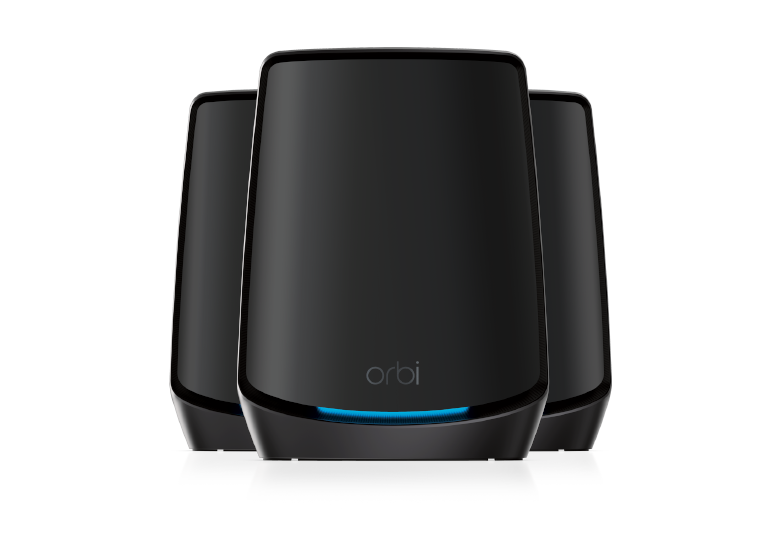

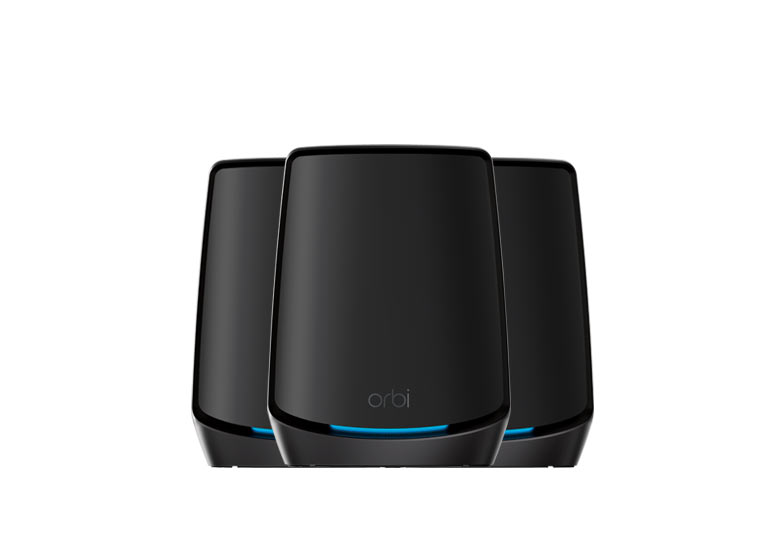

Orbi 860 Series Tri-Band WiFi 6 Mesh Add-on Satellite, 6Gbps
Orbi 860 Series Tri-Band WiFi 6 Mesh Add-on Satellite, 6Gbps
WiFi 6 technology
up to 6 Gbps
up to 100
Orbi 860 Series Tri-Band WiFi 6 Mesh Add-on Satellite, 6Gbps
1 / 6
Orbi 860 Series Tri-Band WiFi 6 Mesh Add-on Satellite, 6Gbps
WiFi 6 technology
up to 6 Gbps
up to 100
WiFi 6 technology
up to 6 Gbps
up to 100
Frequently bought together
Buy upgrade or replacement WiFi products from NETGEAR
Get help from an official NETGEAR representative
Search, ask, and find answers from other NETGEAR users in the community
Product Specifications
| Orbi WiFi 6 Router (RBR860B) | 1 |
| Orbi WiFi 6 Satellites (RBS860B) | 2 |
| 6ft (2m) Ethernet cable | 1 |
| 19V/3.16A power adapters | 3 |
| Quick Start Guide | 1 |
| Height | 10 inches (254mm) |
| Width | 7.5 inches (190.5mm) |
| Depth | 2.8 inches (71.12mm) |
| Weight | 2.86 lbs (1.29kg) |
| Overall WiFi Coverage | 8,000 sq. ft. |
| Requirements | High-speed internet connection to existing modem or gateway |
ROUTER
| WiFi Coverage | 2,700 sq. ft. |
| Speed | AX6000 (2400 + 2400 + 1200Mbps)† |
| Simultaneous Tri-Band WiFi with dedicated backhaul | Radio 1: IEEE® 802.11b/g/n/ax/2.4GHz – 1024 QAM support Radio 2: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support Radio 3: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support |
| Processor | Quad-core 2.2GHz processor |
| Memory | 512MB NAND Flash and 1GB RAM |

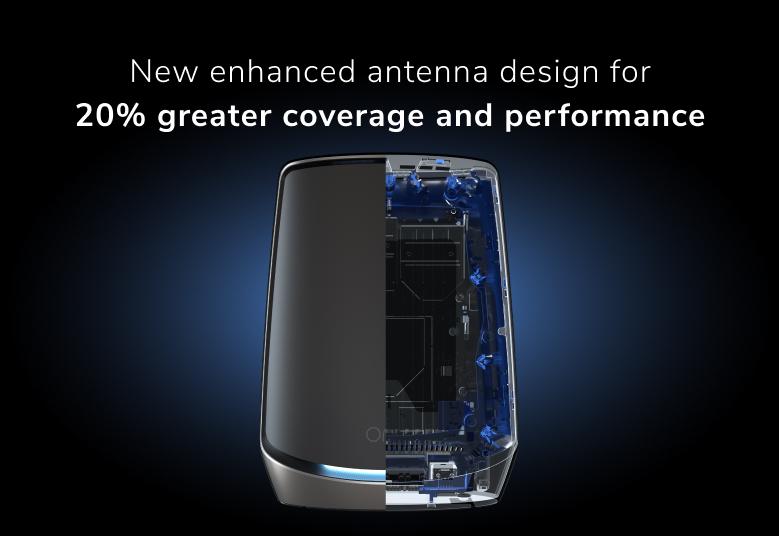

| Antenna | Eight (8) high-performance internal antennas with high-power amplifiers |

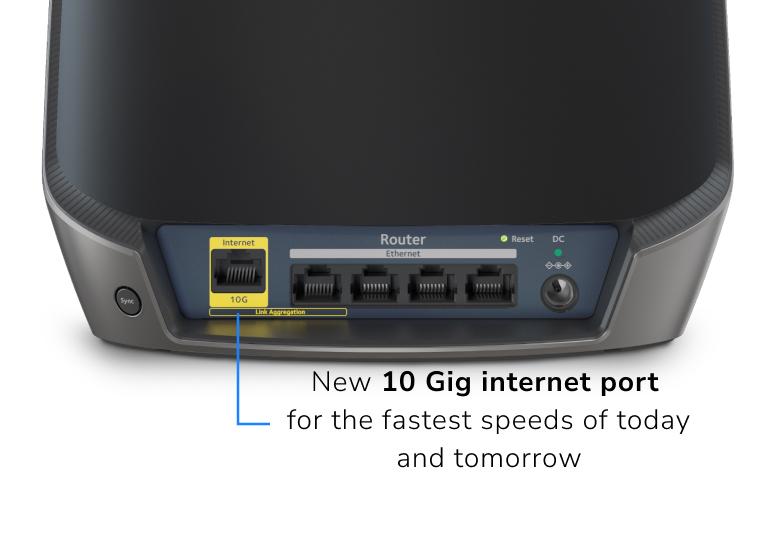

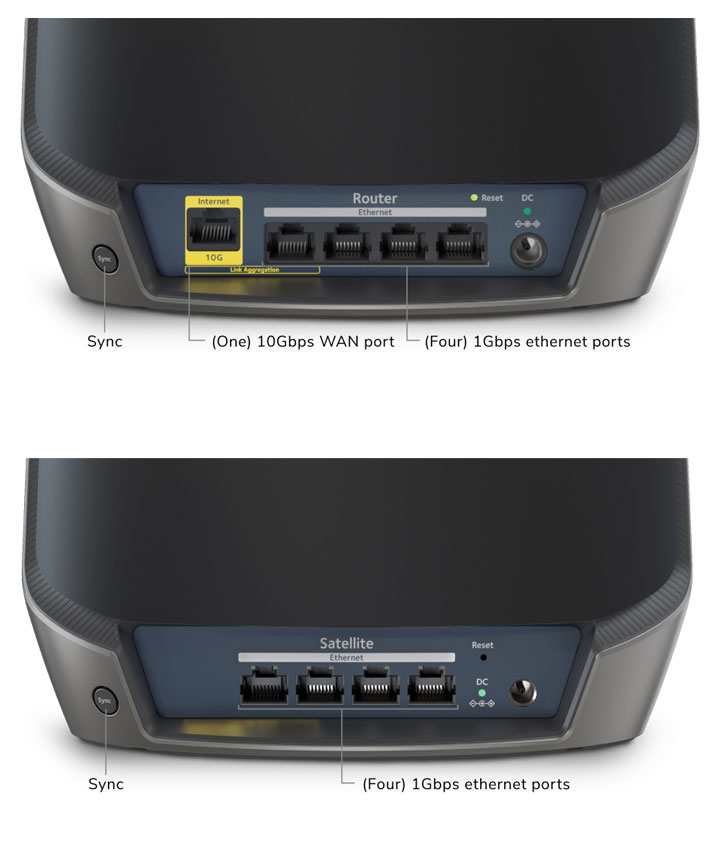

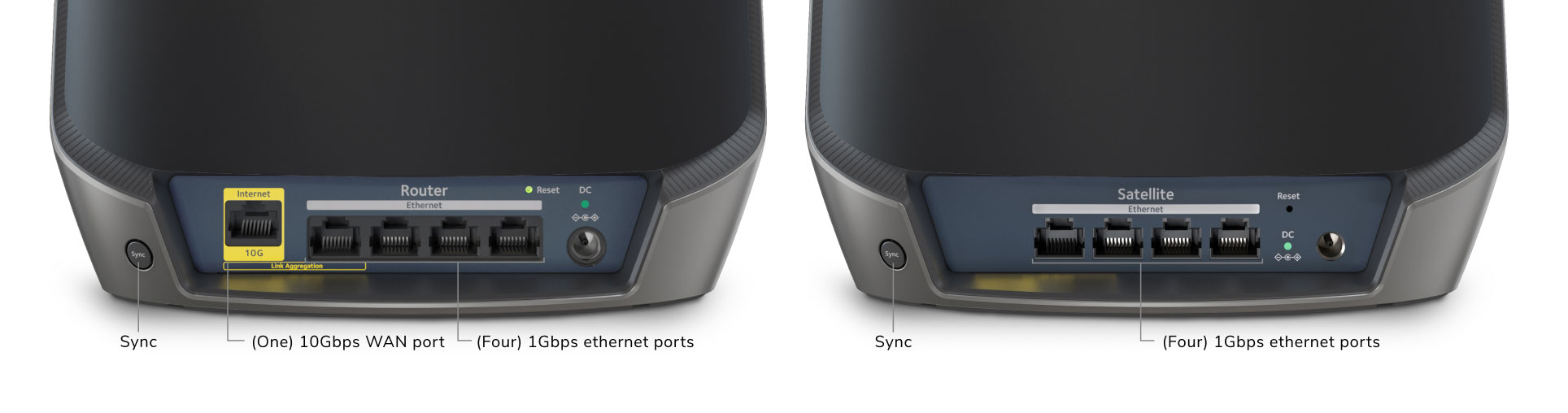

| Ports | One (1) 10Gbps Multi-Gigabit Ethernet WAN port Four (4) 10/100/1000Mbps Gigabit Ethernet LAN ports |
SATELLITE
| WiFi Coverage | 2,700 sq. ft. |
| Speed | AX6000 (2400 + 2400 + 1200Mbps)† |
| Simultaneous Tri-Band WiFi with dedicated backhaul | Radio 1: IEEE® 802.11b/g/n/ax/2.4GHz – 1024 QAM support Radio 2: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support Radio 3: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support |
| Processor | Quad-core 2.2GHz processor |
| Memory | 512MB NAND Flash and 1GB RAM |
| Antenna | Eight (8) high-performance internal antennas with high-power amplifiers |
| Ports | (Four) 10/100/1000Mbps Gigabit Ethernet LAN ports each |
| Standards-based WiFi Security | 802.11i, 128-bit AES encryption with PSK |
| Guest WiFi Network | Easy to setup separate & secure Internet access for guests |
NETGEAR® Armor™, Powered by Bitdefender® | Enjoy greater peace of mind across your connected life. Built into your router, Armor helps protect the devices on your home WiFi from viruses, malware, online scams, and other cyber threats, while a built-in VPN helps keep your identity and personal information more secure. Beyond the home, Armor extends security and privacy protection to up to 50 connected devices wherever you go. Trial included. Terms and Conditions apply |
| NETGEAR 1-year limited warranty (valid only if purchased from a NETGEAR authorized reseller) | Extend your warranty and technical support within 90 days of product purchase (US only) Learn More |
| 90-day complimentary technical support (valid only if purchased from a NETGEAR authorized reseller) | Learn More |
Smart Security.
Powerful Privacy.
Total Peace of Mind.
A powerful suite of tools to help keep you safe online, at home or on the go.
Which Orbi is right for you?
Answer a few questions and we'll find the perfect
solution for your home
Why buy directly from NETGEAR?
Footnotes
† Maximum wireless signal rate derived from IEEE® 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 6Gbps wireless speeds achieved when connecting to other 802.11ax 6Gbps devices.
†† Gigabit service plans & compatible cable modem required for gigabit or multi-gig internet speeds.
‡ Compared to RBK853 throughput improvement at maximum range.
